FUEL BED REFITTING
If the fuel bed components are
dislodged or removed, they must
be refitted as follows:
Only the fuel bed parts supplied
with this appliance or authorised
replacements must be used.
Never add extra coals above the
number stated in these
instructions.
1. Place the ceramic base coal in
the burner compartment. The
bottom rear face of the coal
should rest against the angled
ledge at the back of the burner tray. The
coal does not
rest on top of the angled
ledge. The bottom front recess of the
coal base should locate against the tags
at the front of the ceramic support. (See
figure 4).
2. Place the left-hand ceramic front coal
in position in front of the base coal (See
figure 5).
3. Place the right hand ceramic front coal
in position in front of the base coal. This
should overlap the left-hand coal. Push
the two sides together to minimise the
gap. (See figure 5).
4. Install the 12 loose coals as follows.
The underside of each coal is marked
with a letter ‘A’ to ‘L’ and an arrow.
Page 10
OWNER GUIDE

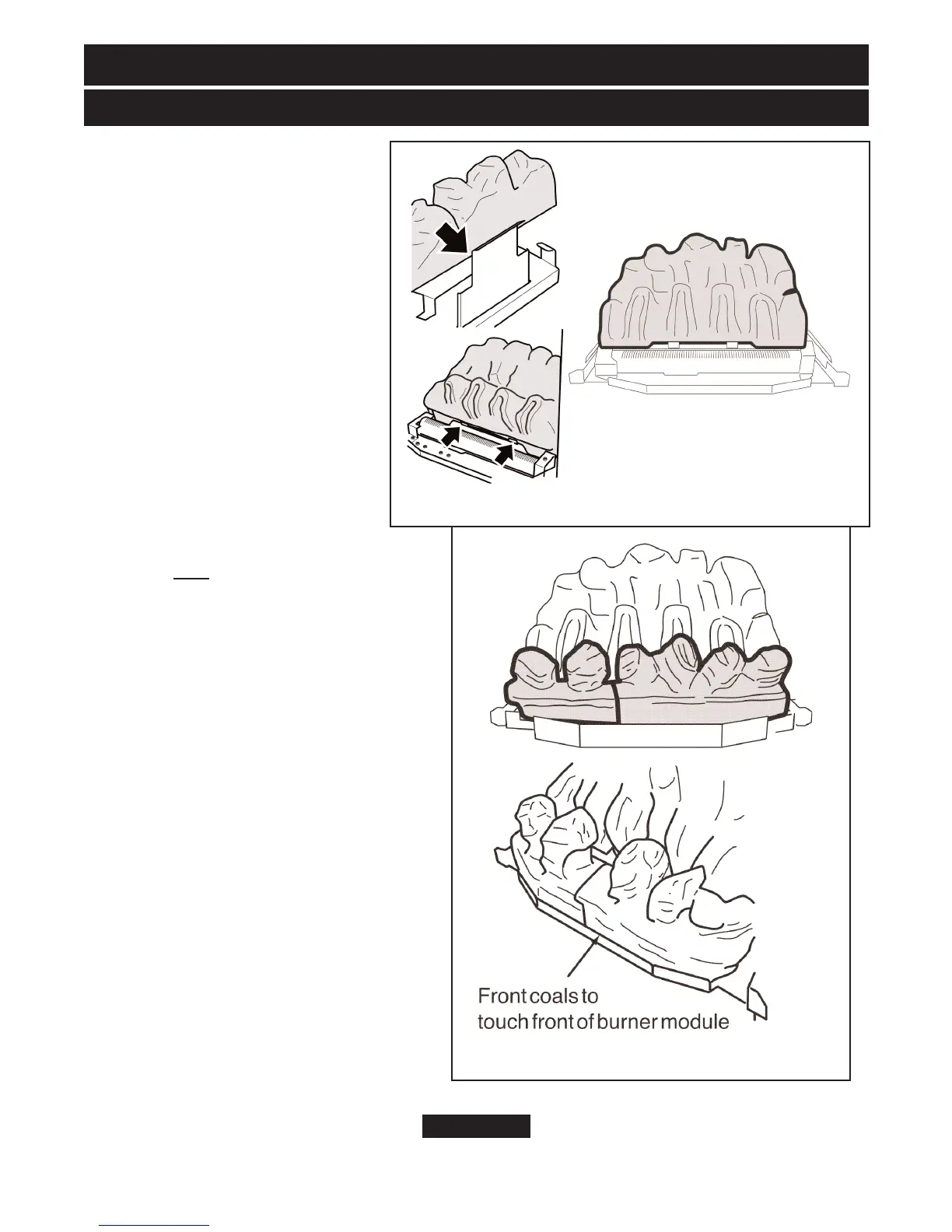

Figure 4. Ceramic base location
Figure 5. Front Coal Location
