FRONT AXLE AIR SUSPENSION, fitting instr.
(17)3
6900(8000R)
8050---8950
--- Adjust the propeller shaft in the middle of t he inter-
mediate frame (pict ure C) by turning the front axle,
tighten t he front axle attaching bolts (380 Nm).
Reconnect the oil hoses on the steering ram.
Fit new shields (38 and 39,pictureE).

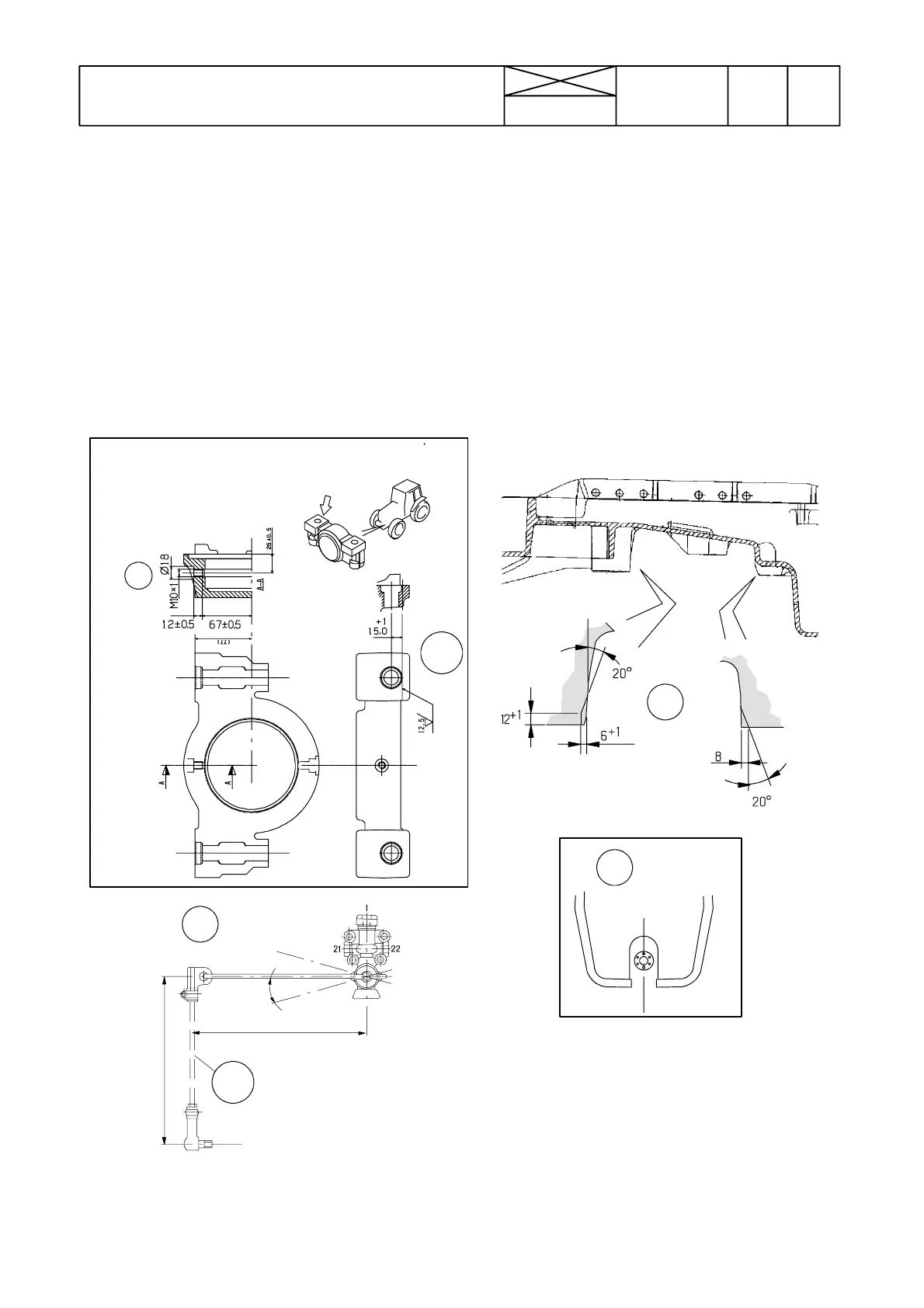

--- Fit the compressed air components , picture F
--- Assemble the levelling valve linkage. Basic
measurements; s ee picture D.
--- Fill the system up to the adjusted pressure. Carry
out adjustment.
Laakeripesän lisäkoneistus
L = 160
Amin = 150
α
A
D
A.1
B
C
D.1
Extra bearbetning , l agerhus
Additional machining,
bearing housing
