CIGARETTE LIGHTER AND ASH TRAY,
23.06.1993 6000---8400 39
FITTING INSTRUCTION
(2)
Cigarette lighter and ash tray 32569000
The cigarette lighter is supplied with permanent cur-
rent via fuse F29. When the parking lights are
switched on, also the cigarette lighter has an illu-
mination.
FITTING:

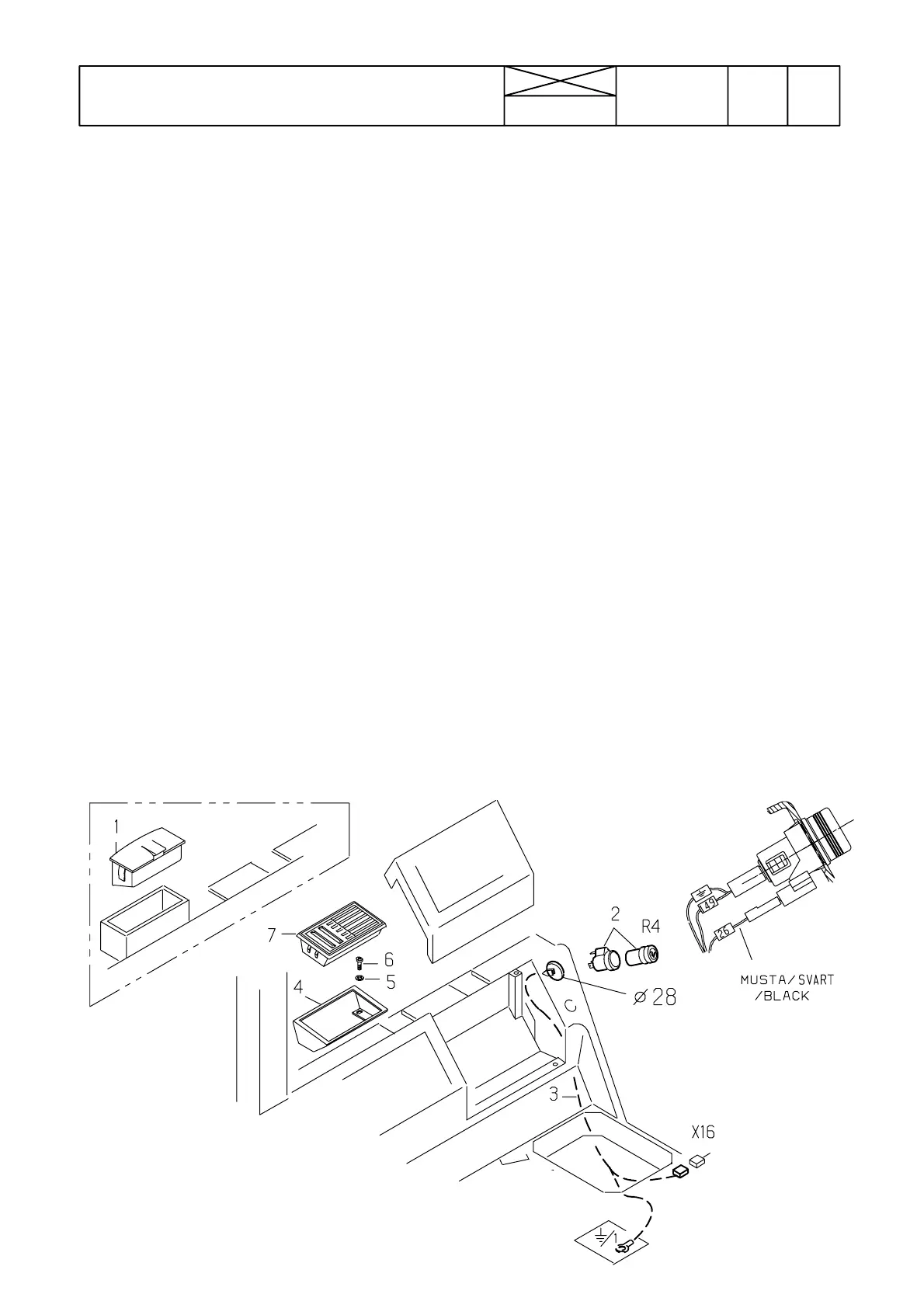

Ash tray 1 is fitted either on the sump on the side
panel (if any) or ash tray 7 is fastened with screws on
the side panel (see picture).
Fit the cigarette lighter 2 onto the upper hole in the
side panel rear part:
--- Disconnect the battery earth cable. Remove the
lever console side wall and the rearmost cover
plate on the side panel. Drill a ø 28 hole at the upper
marking ring.
--- Pass the wiring loom connector R4 out of the dril-
led hole and push rest of wires into the lever con-
sole. Connect the connector to the lighter (see pic-
ture) and fasten the lighter (fit first the lighter outer
ring and after that the lighter).
Connect the earth cable shoe under the screw for
thewirelead---inholeintheleverconsolebottom.
Connect connector X16 to the corresponding con-
nector in the cab wiring loom.
Reassemble the tractor and check the function of
the cigarette lighter.
