44. Quick---shift gear, reverse shuttle
and 4WD clutch

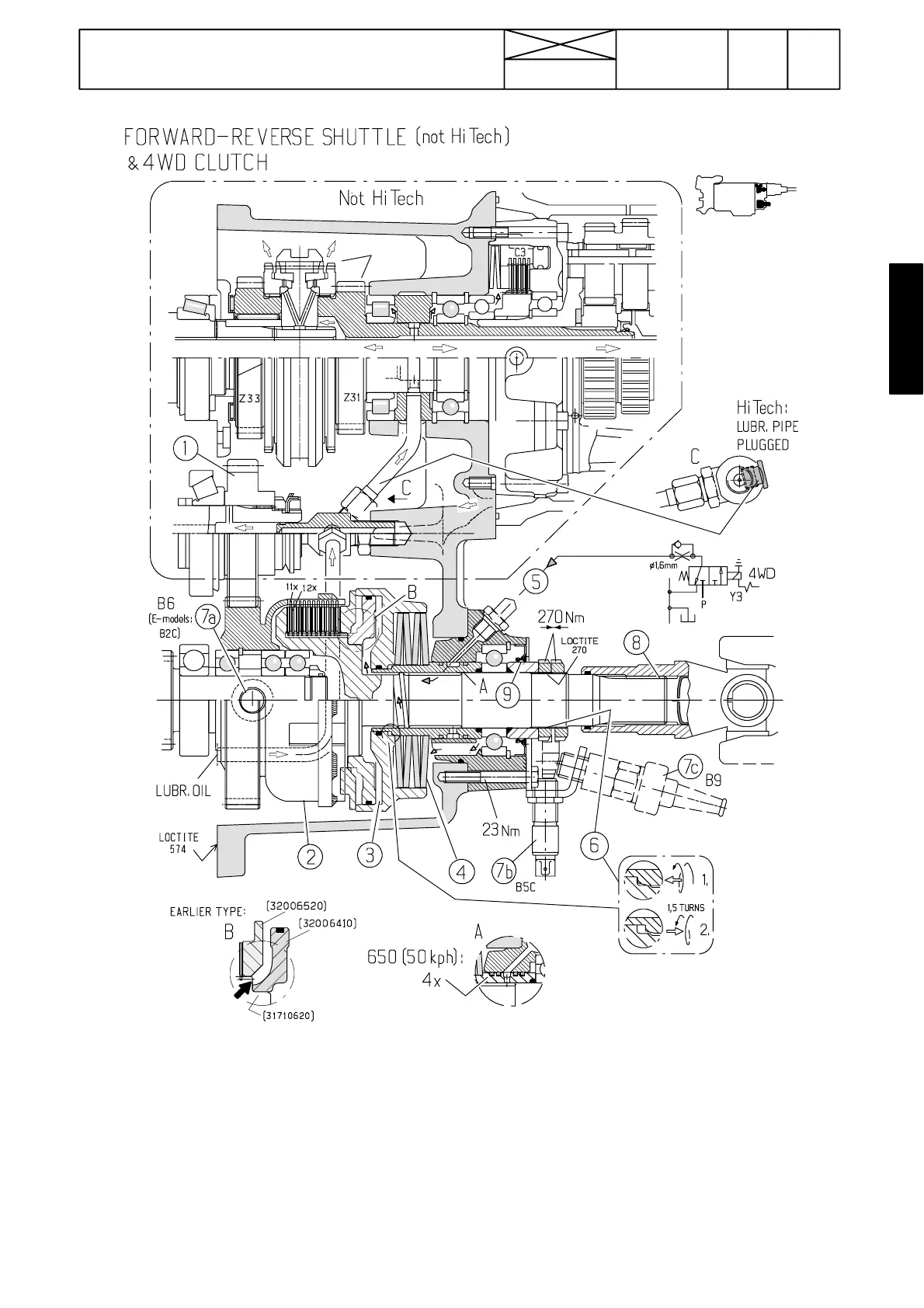

Picture 14. Mechanical shuttle (not HiTech) and 4WD
clutch (also HiTech), latest modifications.
1.Gear wheel in the front end of the bevel pinion shaft
2. Clutch drum
3. Pressure cylinder
4. Cup springs
5. Pressure oil inlet port
6.Tighten the inner nut fully home and open it then 1,5 turn.
Outer nut is tightened to 270 Nm against the inner nut.
Loctite 270 on the threads. Note! Prevent inner nut from
rotating when tightening the outer nut.
7a, b. Speed sensors of gearbox anf front axle
7c.Tachograph (option)
8. EP grease on splines..
9. Universal grease
Detail B: The shape of the flanges have been changed.
With earlier shape the pressure flange could drop between
the shaft and the flange due to the casting faults.
