67. Powered front axle Carraro
1. 10. 1999
8450--8950 672 5

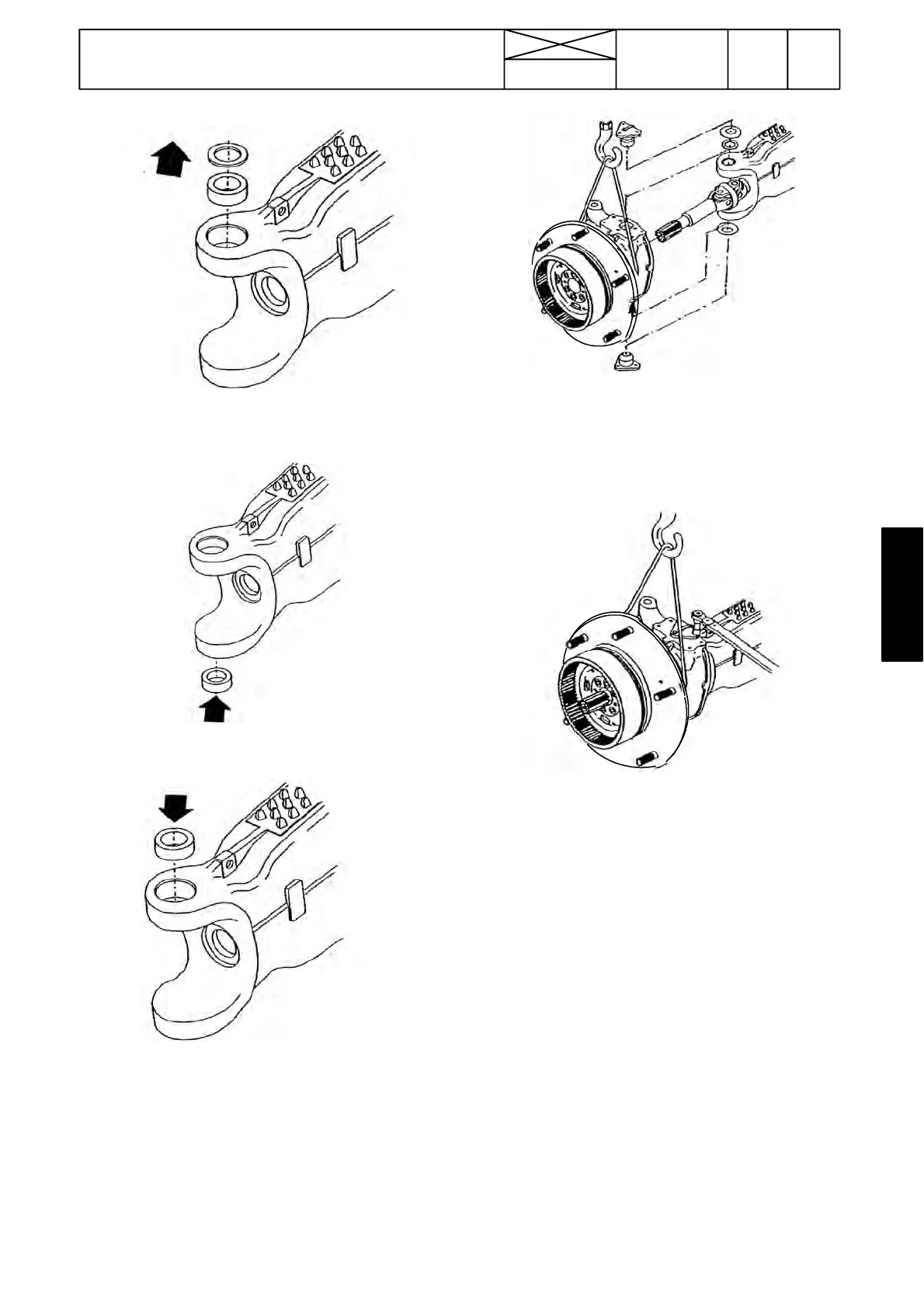

9. Remove the upper pin sleeve after removing the tapered
ring.
10. Fit a new lower king pin outer bearing cup.
11. Fit the upper pin bearing cup.
12. Support the hub with a lifting rope and push it onto the
axle end and fit the washers and the king pins.
Note! Do not mix the upper and lower washers (different
thickness and shape). Do not damage the drive shaft outer
seal,ifthedriveshaftremainedintheaxlehousing
13. Tighten the king pin covers (190 Nm).
14. If you removed the hub cover and the circlip and the
washers at the end of the drive shaft, refit first the washers
and circlip (correct order) at the end of the drive shaft and
fit the planetary carrier (hub cover) as shown in instr. 1A
stages 10---13 on page 672/1.
15. Grease the king pin nipples with universal grease.
16. Connect the tie rod tapered joint (220 Nm).
