1167

Model

Code Page

07.09.1994 6000---8400 89 1

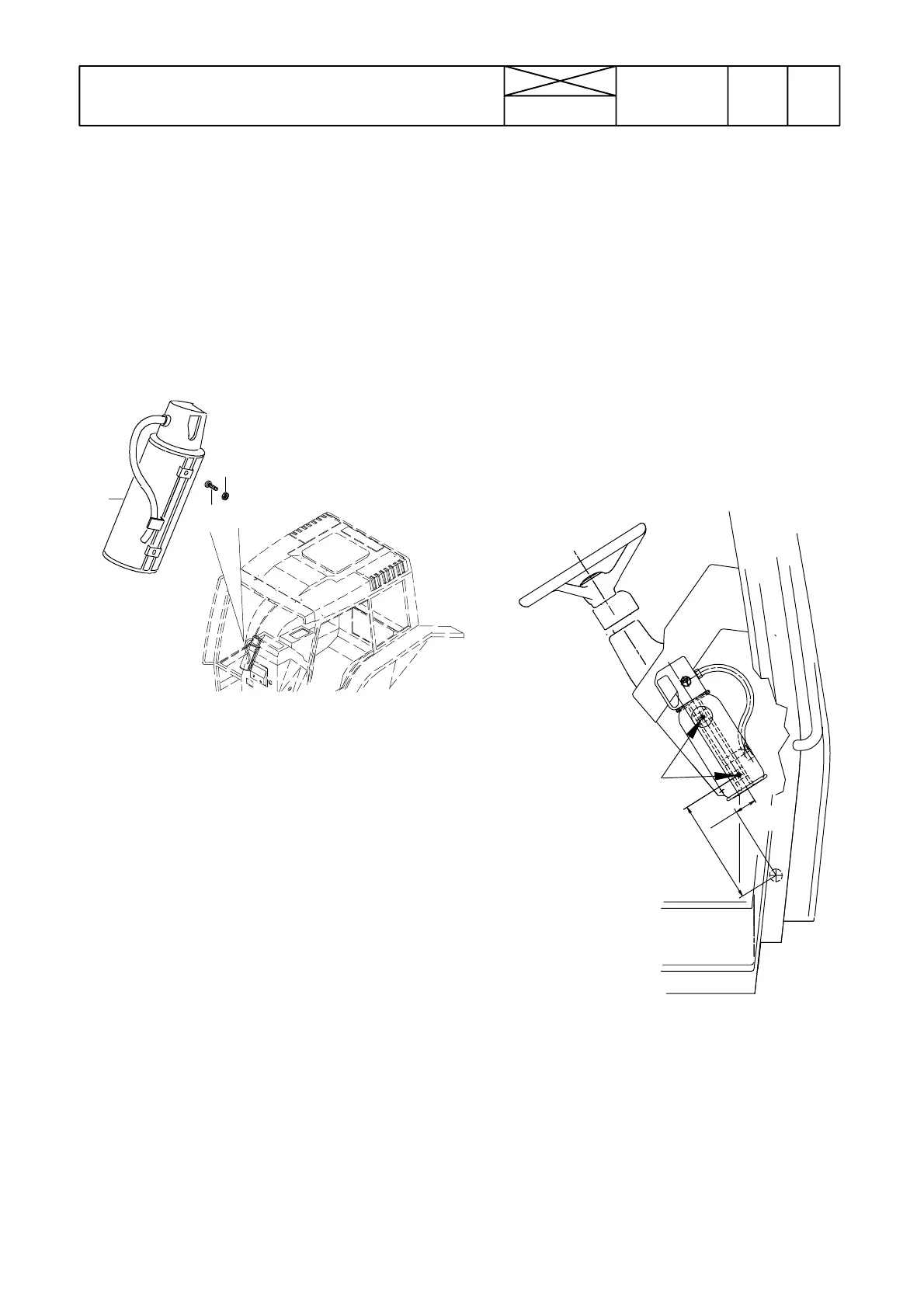

POWDER EXTINGUISHER

(1)

FITTING INSTRUCTION

Powder extinguisher (2kg) 32640500..........

1 32640500 Jauhesammutin Pulversläckare Powder extinguisher assy

1 1 32548300 .Jauhesammutin Pulversläckare Powder extinguisher

2 2 HE6963 .Ruuvi Skruv Screw

3 2 JB8903 .Mutteri Mutter Nut

250 mm

60 mm

Drill holes ø 7mm when mounted
