Shifter rods (3 pcs)Cable wires (2 pcs )

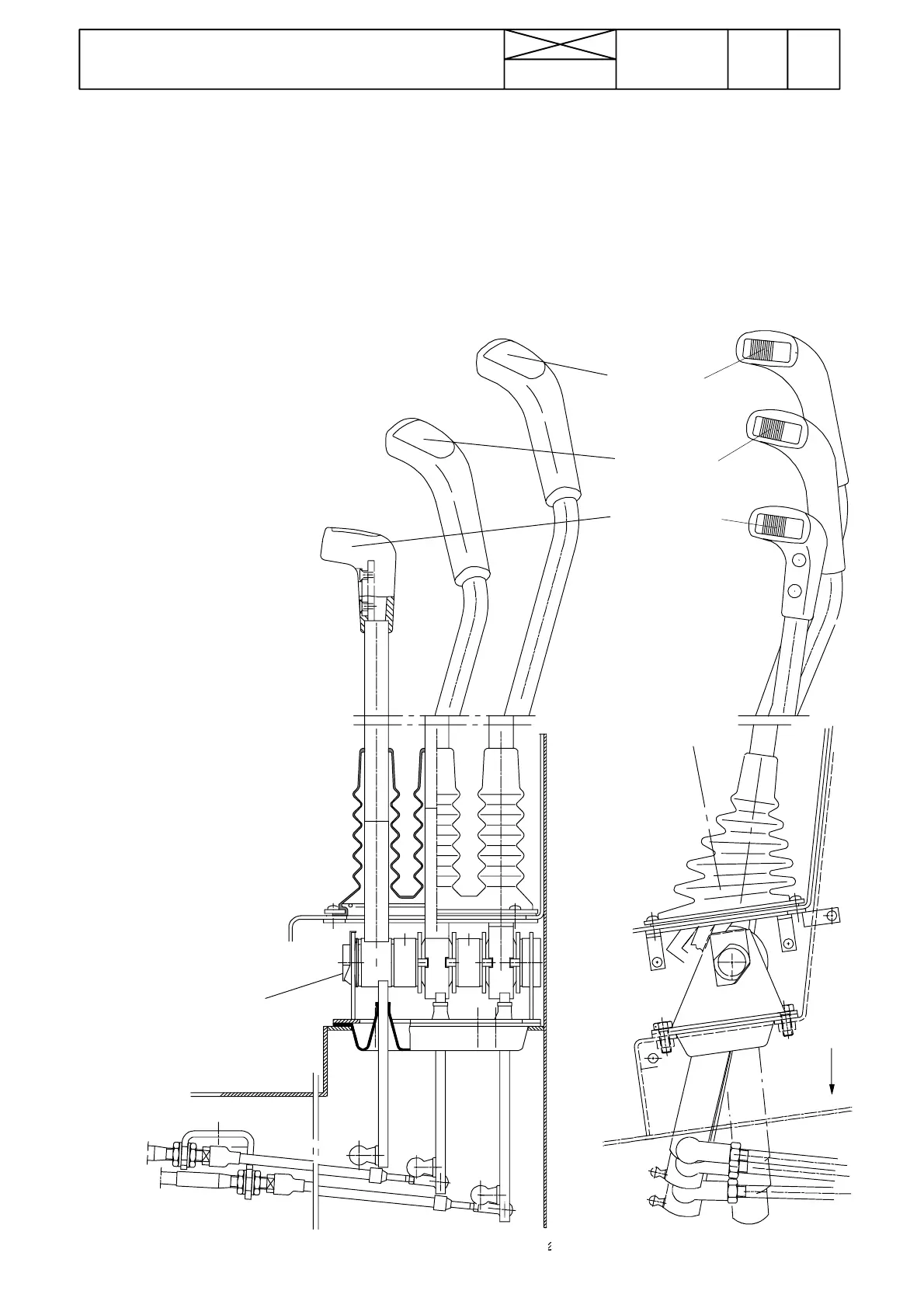

Figure 12. Gear levers
1. Speed gear lever (1 ---4)
2. Range gear lever (LL ---M ---H)
3.Reverseshuttlelever(R---F)
A. Switch for quick---shift gear
B. Switc h for 4WD
C. Switch for differential lock
D. Support shaft (see next page)
E.Shifter rods and cable wires (see next page)
Note! Switches in the gear lever knobs have
been moved onto the lever console on the
driver’s right, see AC II and AC 2.1 (codes 311
and 312). In the speed gear lever knob there
are push buttons for Delta Power Shift. If a
tractor is equipped with HiShift, there are
clutch release push buttons in the gear lever
knobs.
680
Model Code Page
42 Gearbox
1. 4. 1997
12420
6000--8750
15. 5. 1996
Gear levers
The range gear lever (2) selects ranges LL, M or H. When se-
lecting e.g. LL, the lever is moved first outwards and then for-
wards. The lever lower end first moves inwards and pushes
via a cable the selector lever on the side cover outwards and
it engages with a groove on the LL---range selector fork. When
the range gear lever is then moved forwards, the lower part
moves backwards and via shifter rods it turns the selector
lever so that the LL---range engages.
In the same way the other ranges are engaged. The range
gear lever is first moved towards the driver’ seat whereat the
selector lever on the side cover is pushed inwards and the
lever inner end engages with a groove on the selector fork for
ranges M and H (fork in foremost position=M. Fork in rear-
most position=H).
The speed gear lever (1) engages gears 1---4. When selecting
e.g. gear 1, the gear lever first is moved towards the driver’s
seat and then forwards. When moving towards the seat the
selector lever on the side cover is moved inwards (by the
cable) and it engages with a groove on the fork for gears 1---2.
When the gear lever is then moved forwards, the selector
lever is turned (by the shifter rod) so that gear 1 engages.
1
2
3
A
B
C
D
E
