718
Model Code Page
42. Gearbox
8. 11. 1990
6000--8750 423 14

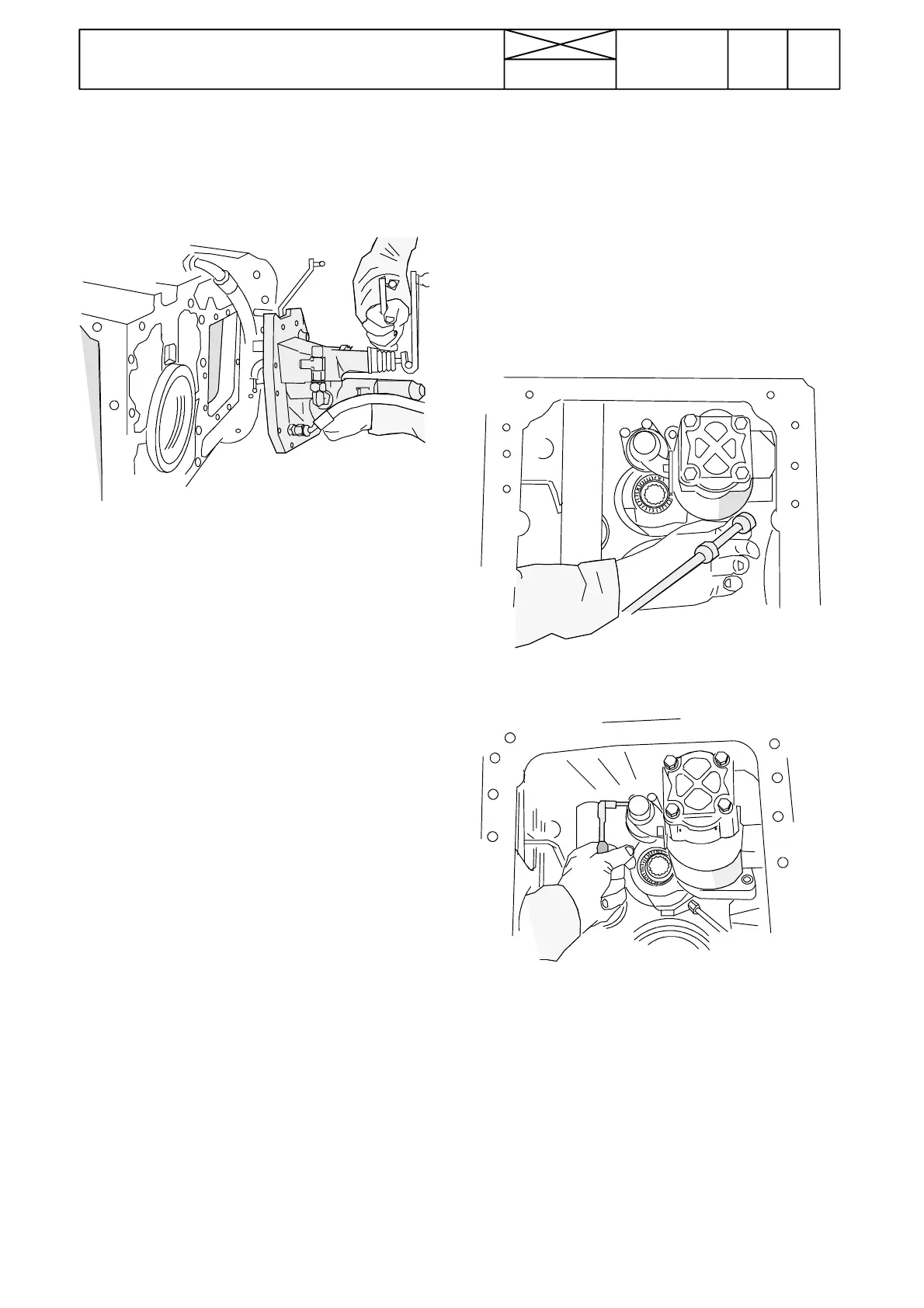

D. Fitting side cover
1. Move first all the gears (forks) to the neutral position. Apply
sealing compound (e.g. Silastic) to the contact surface bet-
ween the cover and the gearbox. Clean contact surfaces if
needed.
2433
2. Turn a guide pin into one lower fixing bolt hole. Fit the cover
with the upper side first.
3. Tighten the fixing bolts to a torque of 50 Nm.
4. Check the engagement of different gears while rotati ng the
input shaft.
Note! Fit the splined sleeve onto the input shaft front end spli-
nes and attach a crank to the sleeve for easier rotating.
E. Fitting pump, suction pipes and suction
strainer housing
Note! Oil pump and suctio n pipes can be fitted although the
differential is in place.
Note! The input shaft lubricating pipe must be fitted beforefit-
ting the differential.
1. Fit the long suction pipe and the curved suction pipe thro-
ugh the holes on the gearbox housing and fasten the suction
strainer housing onto the gear box.
2. Place the hose clip onto the curved suction pipe (screw
upwards.
2435
3. Fit the pump and turn it clockwise and tighten the fixing
bolts to a correct torque (40 ---50 Nm).
2434
4. Tighten the hose clip to the correct torque (~ 6 Nm).
5. After the pump has been fitted, place the pressure pipes
into their holes on the gearbox and screw them into the thre-
ads on the pump. Note also the sealing pieces, which have
sealing rings.
Note! Apply Hylosil sealing compound between the gearbox
and pressure pipe sealing pieces. Apply Loctite 542 to the
sealing piece fixing bolts.
