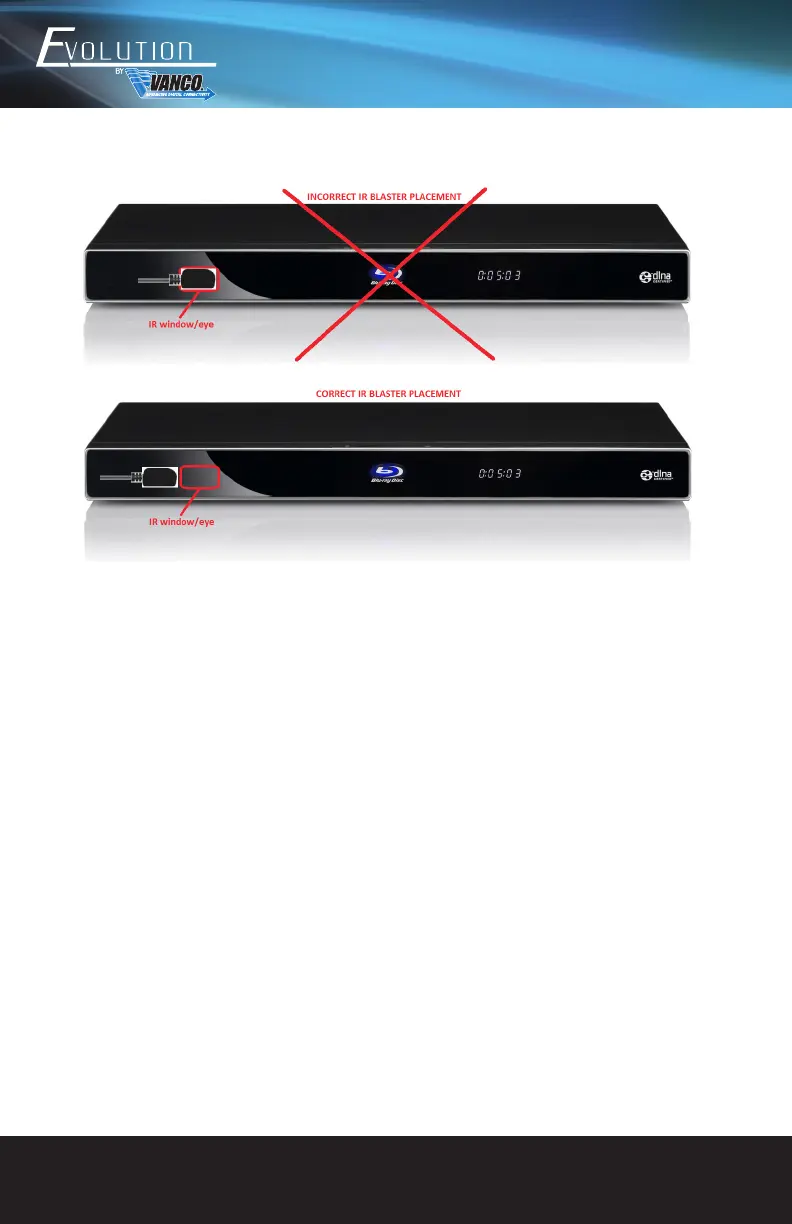

Vanco Evolution - IR Receiver and Blaster Placement

www.vanco1.com
800.626.6445
10
IR RECEIVER (RX)
• To control the source: Plug IR Receiver into IR RX port of receiver unit (EVEXFBR1-RX); place receiver at
or near display
• To control the display: Plug IR Receiver into IR RX port of transmitter unit (EVEXFBR1-TX); place receiver
in position where it is able to receive remote signals
