D Use the security screw supplied to attached the unit to the flush mount collar.
E Place the cap onto the unit and push firmly in place.
6.5 Flush mount to UK pattress box

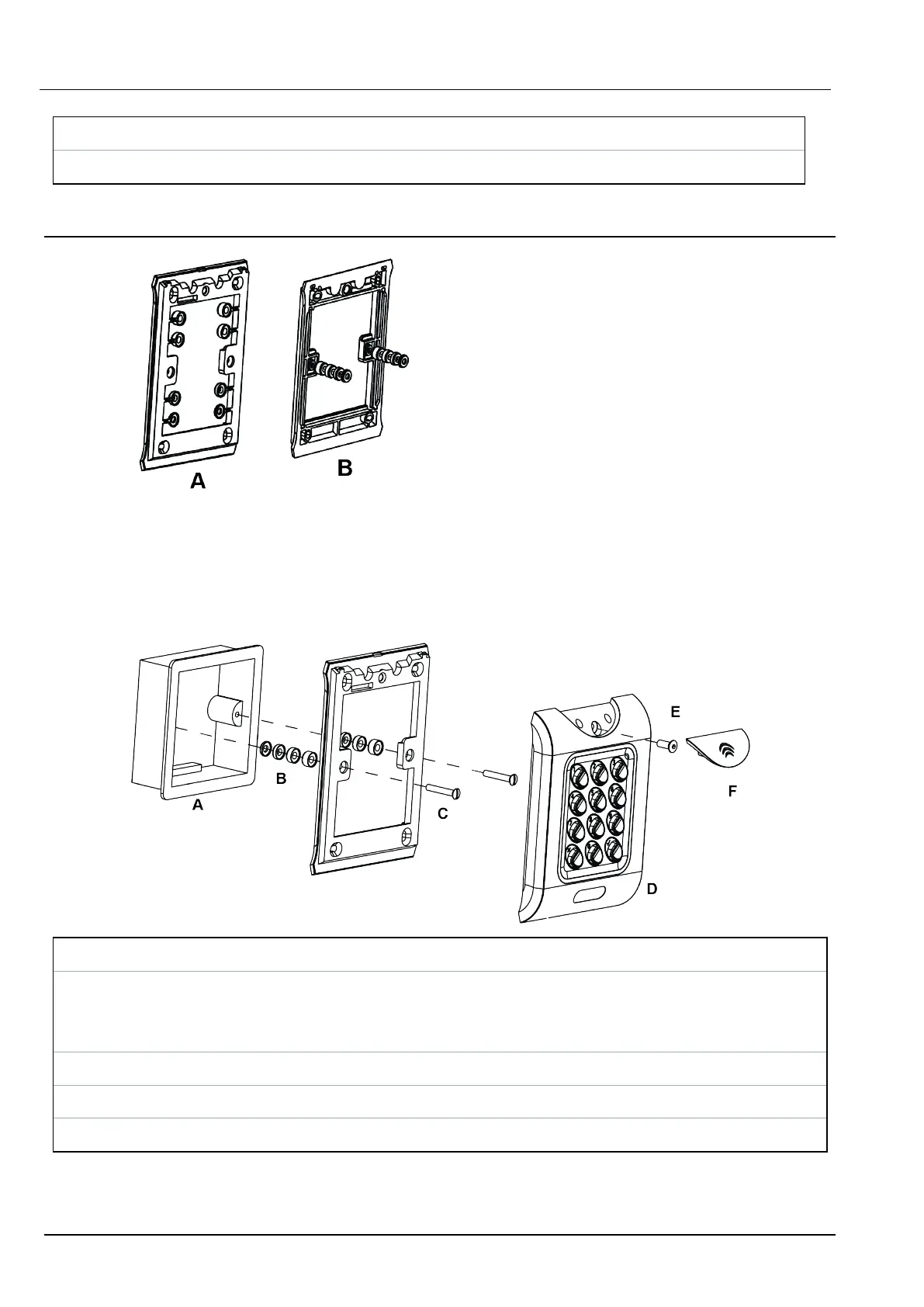

Spacers break away from main component when required by installer for use.
Determine the distance between the patress box and the mounting plate, using the spacers that are
labelled 1mm to 4mm. A spacer of the correct length is assembled by stacking the spacers together.
View A shows mounting plate before spacers are broken away by installer.
View B shows spacer stacking.
A Standard pattress box.
B
C
Attach the mounting plate to the pattress using the screws supplied (C).
Ensure the correct spacers (B) have been used to bridge the gap between the mounting plate and the fixing
wings of the pattress box to avoid the mounting plate being distorted.
D Place the reader/keypad onto the surface mount collar and clip down into place.
E Use the security screw supplied to attached the unit to the flush mount collar.
F Place the cap onto the unit and push firmly in place.
ACT 5e prox – Installation and Operating Instructions Wiring and Mounting Diagrams
