Vanner IT12-1400 - Inverter Indicator Light; Positive DC Input Contact; Negative DC Input Contact

Component Identification and
Description of Operation
IT SERIES Industrial True Sine Wave Inverter Owners Manual
14
(10) Inverter Indicator Light
Light Display
Description
Green Light is OFF Inverter is OFF
Solid Green Inverter is ON and is producing AC power
Blinking Green Inverter is in Load Demand Mode

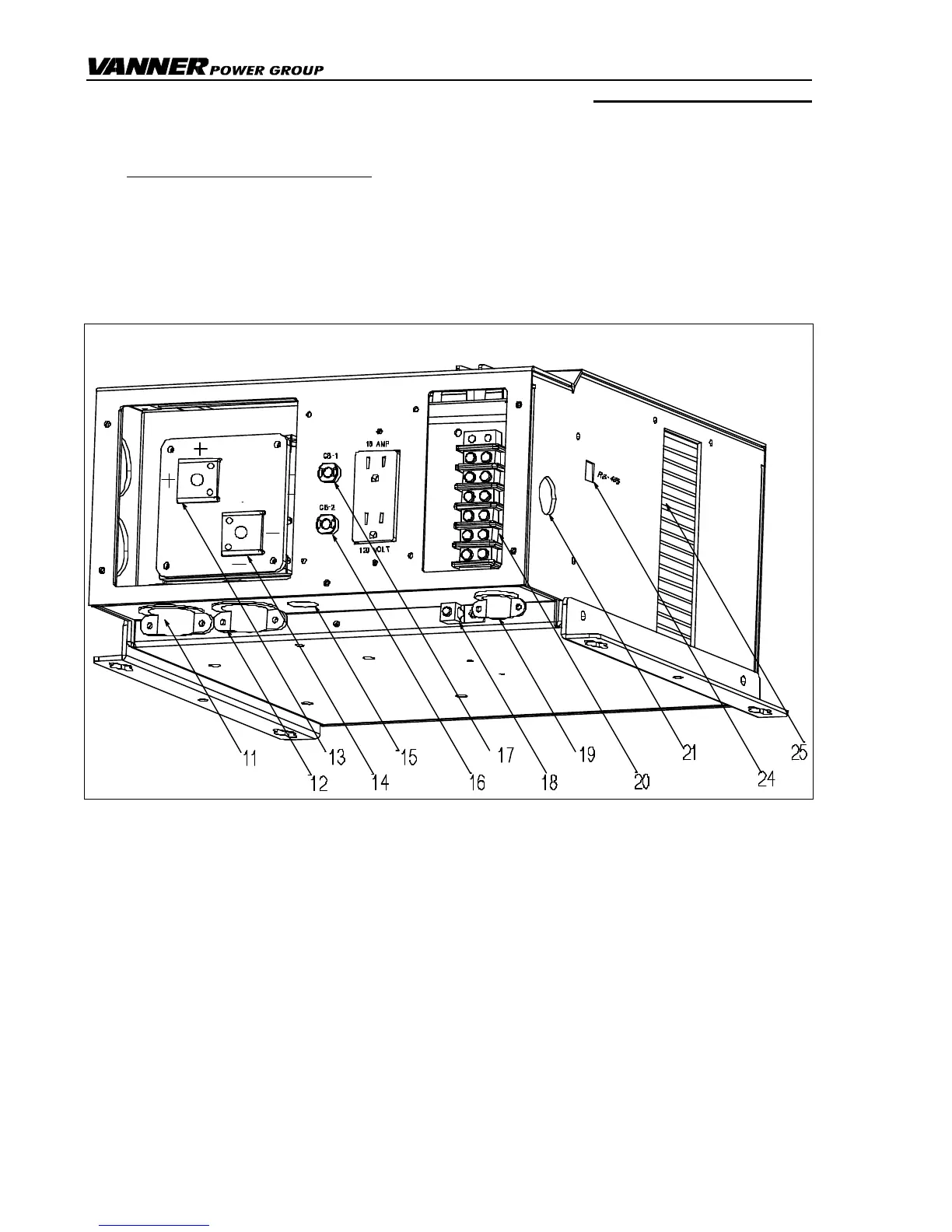

Figure 4 Inverter Front, Right Side and Bottom View
(11) Bottom entry for positive DC input cable
(12) Bottom entry for negative DC input cable
(13) Positive DC Input Contact
(14) Negative DC Input Contact
(15) Bottom entry for Remote Control Terminal Block
