Component Identification and
Description of Operation
IT SERIES Industrial True Sine Wave Inverter Owners Manual
15
(16) CB-2 15 Amp AC Output Circuit Breaker
CIRCUIT BREAKER CB-2 (bottom breaker) protects the GFCI Receptacle and AC Output AC-2.
(17) CB-1 20 or 30 Amp AC Output Circuit Breaker
CIRCUIT BREAKER CB-1 (top breaker) protects AC Output AC-1. CB-1 is a 20 amp breaker on
models up through 2400 watts. CB-1 is a 30 amp breaker on models rated 2600 watts and higher.
(18) Chassis Ground Bonding Lug
(19) Bottom entry for AC output cable
(20) AC Output Terminal Block containing outputs AC-1 and AC-2
(21) Side entry for AC output cable
(22) N/A
(23) N/A
(24) Factory set-up jack
(25) Air Exhaust Vents

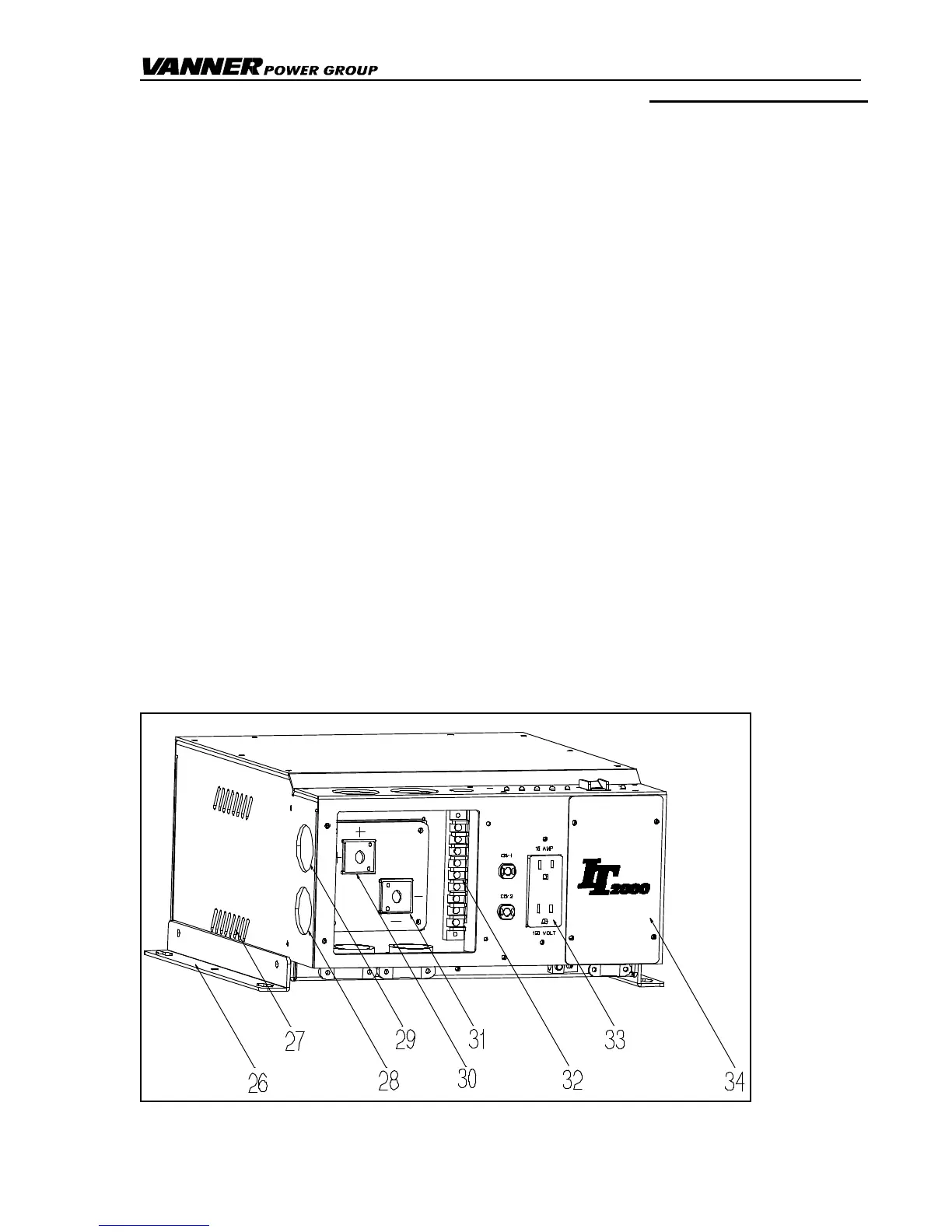

Figure 5 Inverter Front and Left Side View
