Varian Saturn 2000 GC/MS Pre-Installation Instructions

The power cable from the mass spectrometer is approximately 2.5m (8 ft) long and fitted with
US Standard National Electronics Manufacturers Association (NEMA) 5-15P power plugs. The
NEMA 5-15P power plug and corresponding outlet are shown in Figure 2(b). NEMA 5-15P
plugs are rated at 15A and 120 Vac.
Systems shipped outside the United States and Canada are fitted with CEE 7/7 plugs; these are
rated at 16A and 230 Vac. The CEE 7/7 plug and outlet are shown in Figure 2(c).

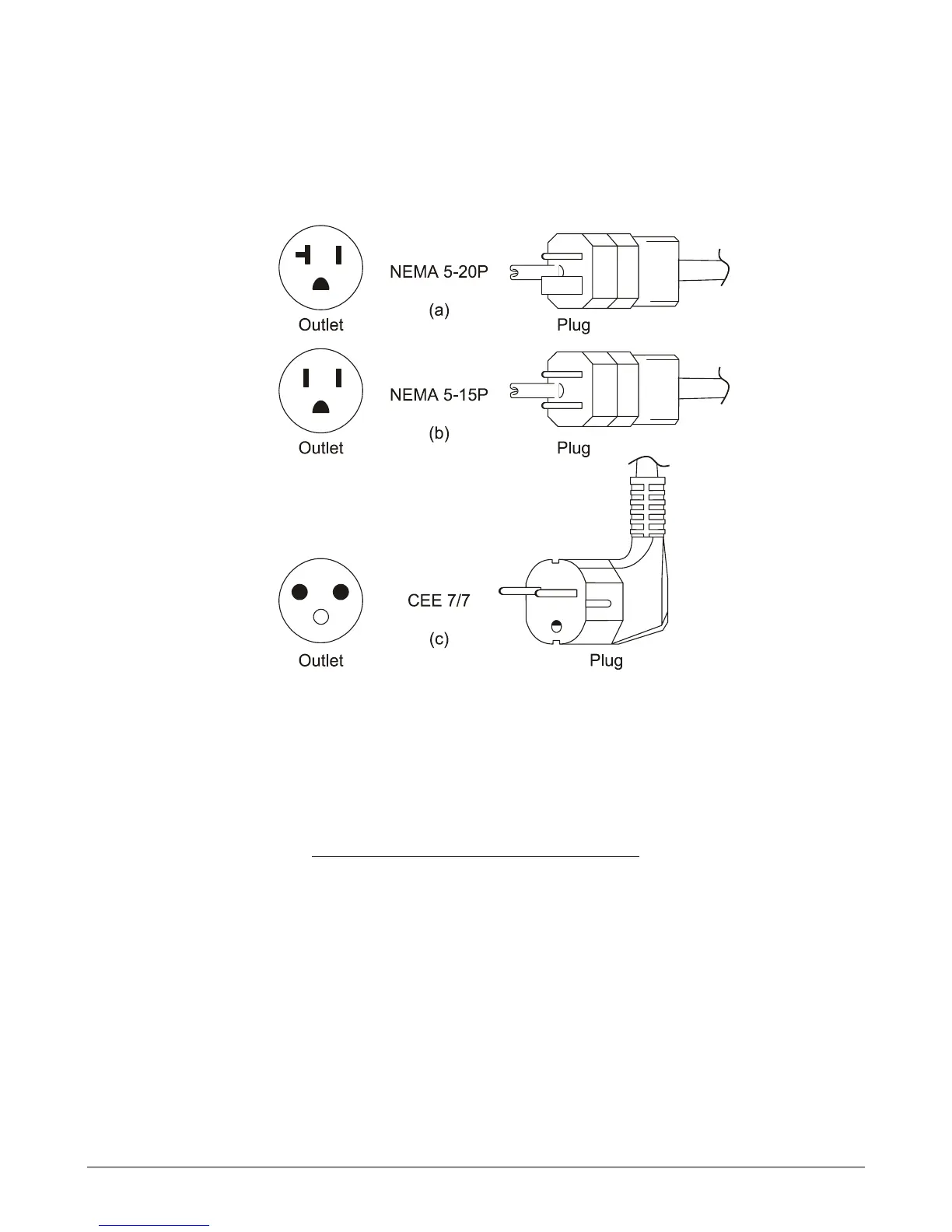

Figure 2 NEMA 5-20P, NEMA 5-15P, and CEE 7/7 Power Plugs and Outlets
The power cables for the computer, monitor, and printer are approximately 2m (6 ft) long. They
are fitted with NEMA 5-15P plugs. The power cable from the 8200 AutoSampler is about 2m
(6 ft) long, and is fitted with a NEMA 5-15P plug rated at 120V.
With a 120V power source, the maximum amperage requirements for each of the Saturn
GC/MS components are as follows:
Component Amperes
Mass Spectrometer 12
CP-3800 Gas Chromatograph 20
3900 Gas Chromatograph 11
CP-8200 AutoSampler 0.5
Computer 3
Monitor 2
Laser Printer 3-4
NOTE: With a 230V power source, the maximum amperage requirement of each of the
above components is one-half of the amperage given above.
Never plug the mass spectrometer and the gas chromatograph into the same power source;
otherwise, you may overload the fourplex power source. Never use the free outlet on each of
the power sources for equipment drawing more than 2A.
03-914629-00:7 4 of 9 Saturn 2000 GC/MS Pre-installation Instructions
