MOTORI ELETTRICI / ELECTRIC MOTORS / ELEKTROMOTOREN
MOTEURS ELECTRIQUES / MOTORES ELECTRICOS / MOTORES ELETRICOS
n°poli / poles n.
Grandezza
Size
B5 - B14 B5 B14
2 4 6
D E F L AD AC P N M T S LA P N M T S
kW Kg kW Kg kW Kg
0.09 2.6 0.06 2.5 — —
56
9 20 3 188 108 110 120 80 100 2.5 7 7 80 50 65 2.5 M5
0.13 3.2 0.09 2.6 0.06 2.6
0.185 4.1 0.135 4 — —
63
11 23 4 208 113 123 140 95 115 3 10 10 90 60 75 2.5 M5
0.25 4.4 0.185 4.6 0.12 5
0.37 5.8 0.25 6 0.185 6.6
71
14 30 5 242 125 147 160 110 130 3 9 9.5 105 70 85 2.5 M6
0.55 6.5 0.37 6.6 0.25 7.7
0.75 8.4 0.55 8 0.37 8.3
80
19 40 6 279 133 165 200 130 165 3.5 12 10.5 120 80 100 3 M6
1.1 9.5 0.75 9.5 0.55 10
1.5 12.3 1.1 12.4 0.75 12
90S
24 50 8
305
148 181 200 130 165 3 11.5 11 140 95 115 3 M8
1.85 12.8 — — — —
2.2 15 1.5 14.5 1.1 14.3
90L
330
— — 1.85 16.5 — —
3 19.7 2.2 18.5 1.5 19
100
28 60 8 370 156 198 250 180 215 2.5 14 15 160 110 130 3.5 M8
4 24 3 21.4
5.5 31.6 4 31.3 2.2 30
112
28 60 8 388 173 222 250 180 215 2.5 14 11.5 160 110 130 3.5 M8
7.5 34.5 5.5 42 3 40
132S
38 80 10
460
189 264 300 230 265 4 14 15 200 130 165 4 M10
— —
7.5 52.5 4 46.4
132
500
— —
9.2 56.5 5.5 52.5
11 52.5 11 79.2 7.5 78
160
42 110 12
610
235 317 350 250 300 5 18 15 250 180 215 5 M12
15 59 —
— — —
18.5 98 15 97.5 11 110
160L
654
22 109 — — — —
— — 18.5 154 15 140
180
48 110 14 710 248 320 350 250 300 5 19 17
— — 22 160 — —
L
E
T
D
N
AC
AD
M
P
F
LA
L
E
T
D
N
AC
AD
M
S
S
F
90°
B5
B14

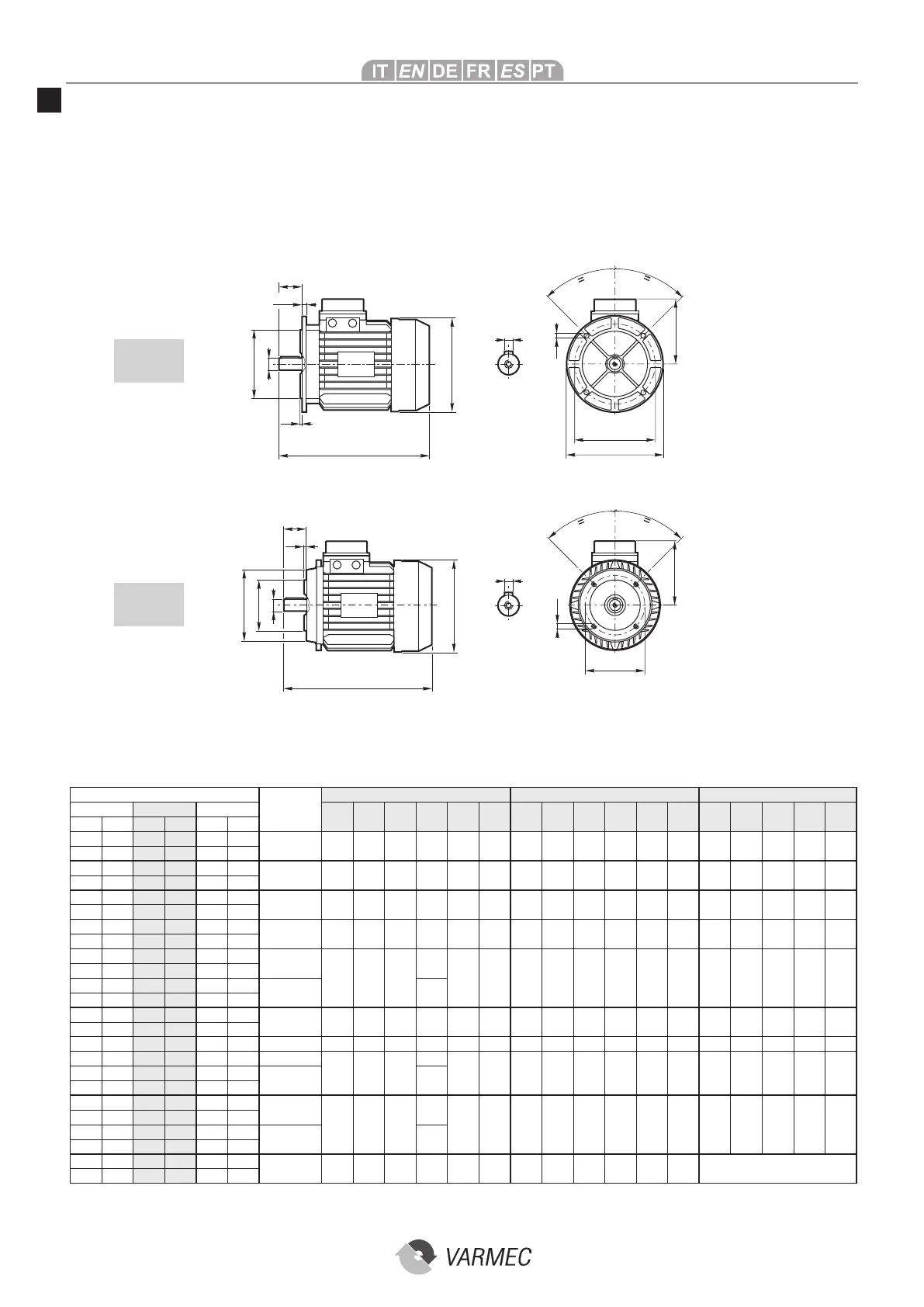

Motore elettrico trifase / Threephase electric motor / Drehstrommotor
Moteur électrique triphasé / Motor eléctrico trifàsico / Motor elétrico trifásico
