5 / 10
3
0
1 – 255
Strobe off
Strobe slow to fast
4
0 – 15
16 – 255
Shutter closed
Shutter open
If you use cables longer then 100m you should put in a terminator at the last item in your daisy chain!
Use DMX cables with a 120Ohms shield only! All Plugs should use XLR connectors!

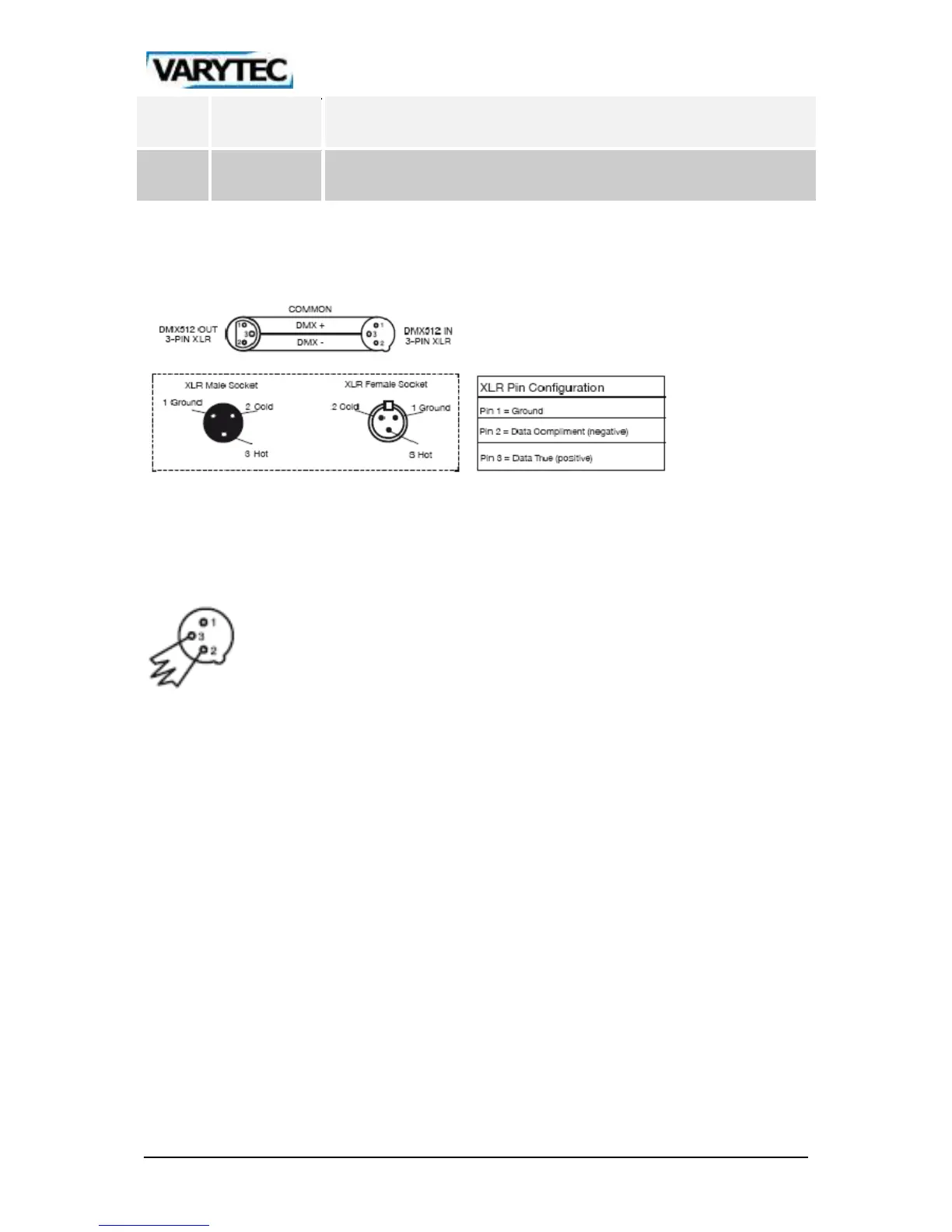

The connectors configuration is as follows:
If you want to produce a DMX terminator on your own, you have to insert a Terminator at the plug.
This should have a size of 120Ohms and 1/4W. It has to be inserted between Pin 2 (Data -) and Pin 3
(Data +).
