Pax-i3D Smart(PHT-30LFO) Installation Manual

100

8 Installing Software

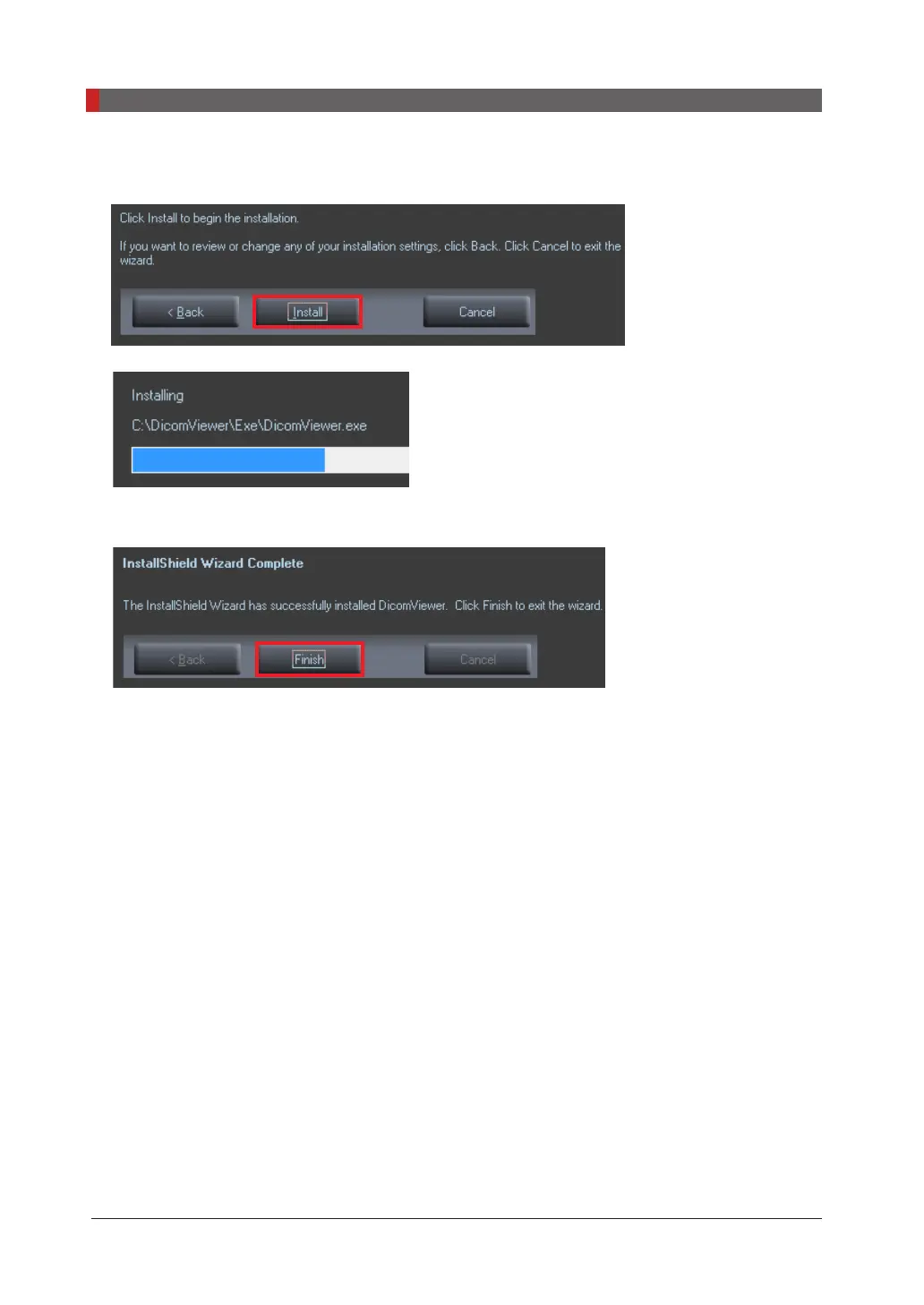

From the following screen, click

Install

Click

Finish

to nish.

Table of Contents13
Introduction15
Manufacturer's Liability16
Customer's Responsibility16
Marks & Symbols17
Standards and Regulations18
Choosing an Installation Site19
Room Requirements20
Specifications for Electrical Installation23
Electrical Requirements23
Temperature and Humidity25
Exposure Switch Installation Options25
Installation Versions27
Installing the Warning Lamp and Door Interlock Switch28
Installing the Emergency Stop Switch28
Before Installing the System29
Required Tools30
Checking the Shockwatch and Tiltwatch Indicators32
Unpacking the Boxes33
Checking the Parts41
Installing the Equipment: Floor Standing (Optional)47
Assembling the Base and Main Units48
Installing the CEPH Unit (Optional)51
Connecting the Cables to the Equipment54
Installing the Wall and Column Brackets55
Fixing the Base (Optional)59
Removing the Transportation Safety Bolts62
Leveling the Equipment64
Tightening the Bolts Firmly66
Completing Miscellaneous Works67
Assembling Various Covers68
Assembling Temple and Chin Supports70
Installing the Switch Holders71
Setting up PC73
Direct Connection Diagram74
The Recommended PC Requirements75
Installing the Internal Peripherals78
Connecting the Cables to PC80
Setting up Pc's Environment Variables83
Before Beginning84
Checking PC BIOS Settings84
Turning the Firewall off85
Setting up the Power Mangement Options87
Turning off the User Account Control89
Setting Folder Exclusions with Anti-Virus Software91
Installing Software93
Before Beginning94
Software Installation Flow95
Installing Image Viewer Program95
Installing the Installshield96
Setting up the User-Specific Information106
When Easydent4 Is Installed106
When Ezdent -I Is Installed113
Configuring the Parameters116
Setting up the IP Address for the os CEPH Sensor (Optional)123
Acquiring a Test Image127
Aligning the Collimator128
PANO Collimator Alignment128
CBCT Collimator Alignment132
Acquiring the Test Image136
Technical Specifications137
Appendix143
Installing the Warning Lamp and Door Interlock Switch144
Installing the Emergency Switch147
Limiting the Column Height148
Connecting the Third-Party Exposure Switch(Optional)152
Checking PC BIOS Settings153
Installation Checklist154
