Pax-i3D Smart(PHT
-30LFO) Installation Manual
99
8 Installing Software

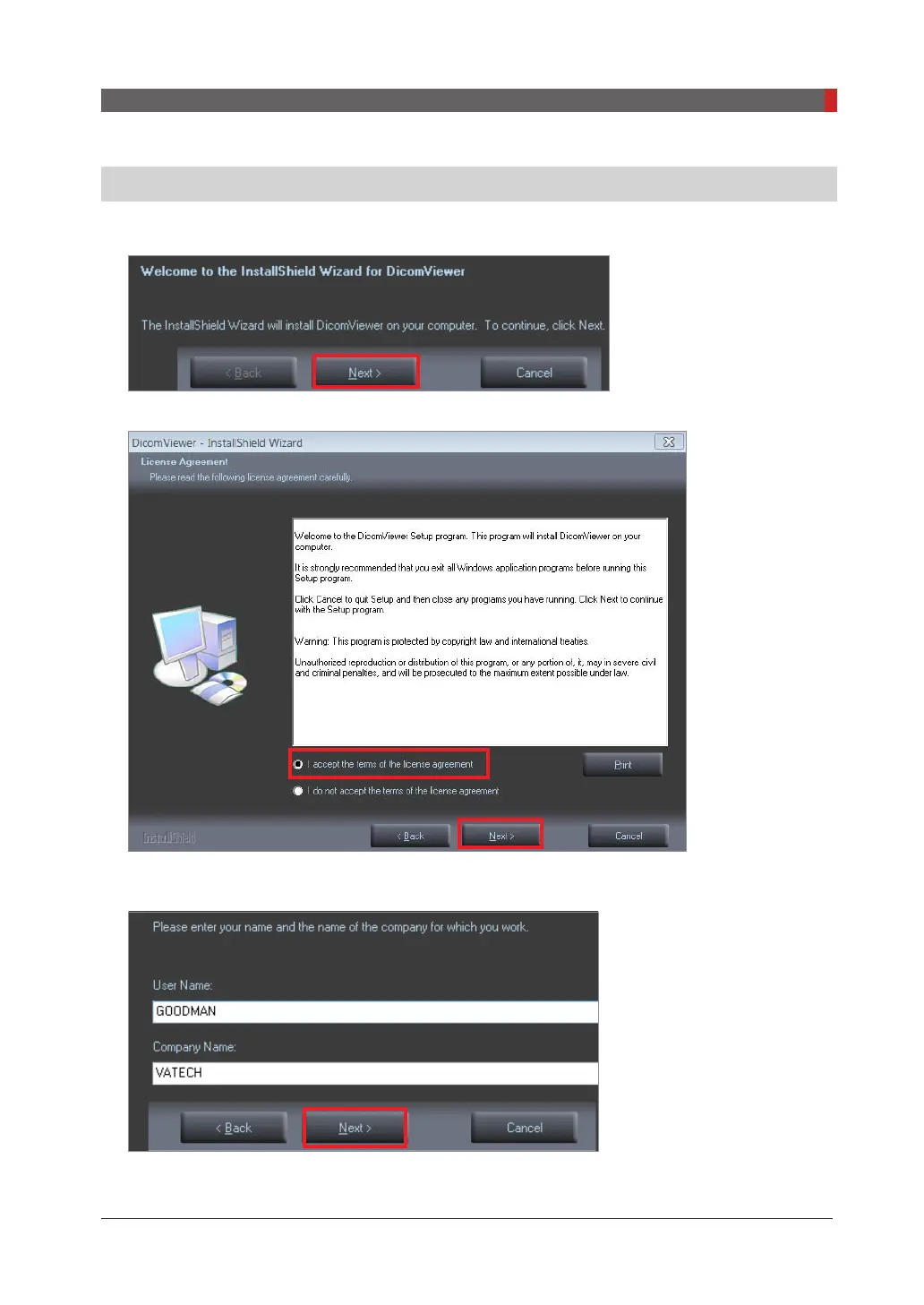

Installing the DICOM viewer
1.
Click
Next
to install DICOM viewer
.
2.
Select “I accept the terms of the license agreement” and click
Next
.
3.
Enter the names of user and clinic and click
Next
.
