A 2
braun
rosa
blau
rot
schw.
grün
A 1

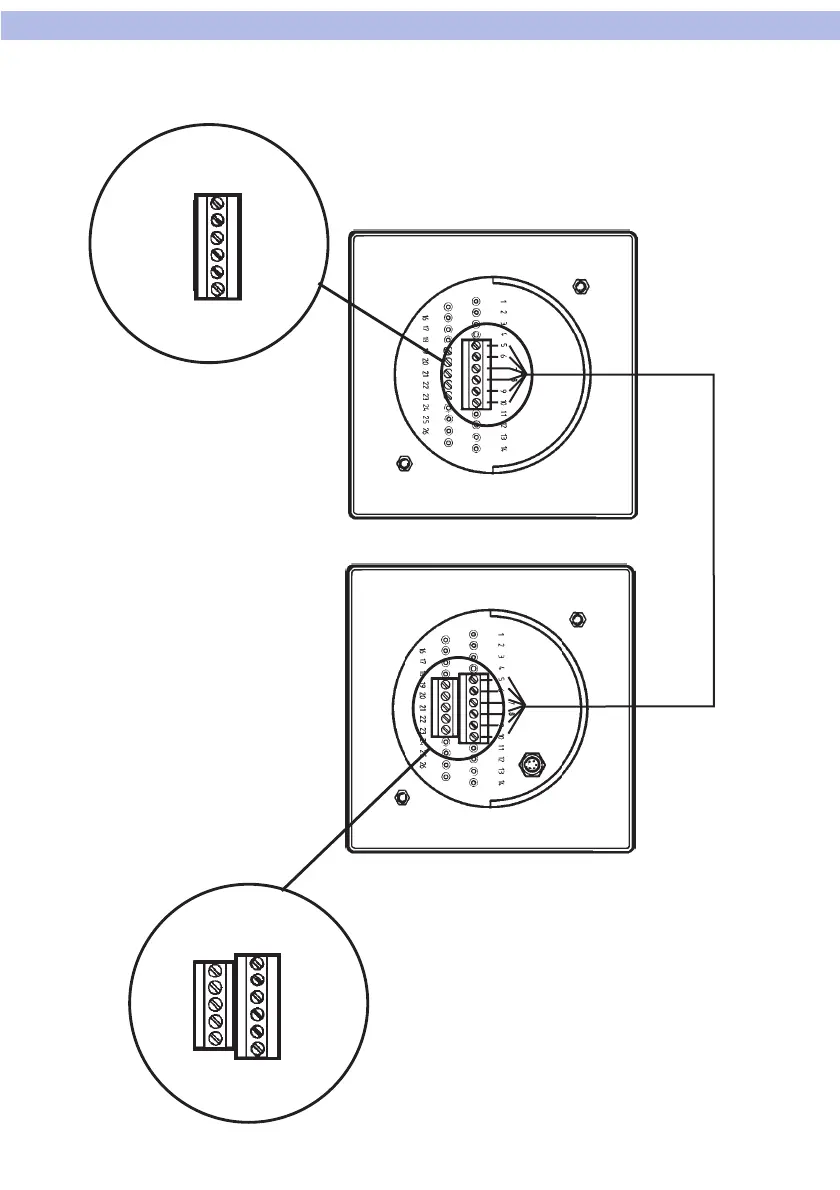

grün = VDO Logic Bus 1
schwarz = VDO Logic Bus 2
braun = Masse Beleuchtung
rosa = + 12 V Beleuchtung
blau = Masse
rot = + 12 V
braun
rosa
blau
rot
schw.
grün
Close Hauled
Die elektrische Installation
Anschluß Tochteranzeiger Close Hauled
