VDO Logic Close Hauled - Electrical installation; Repeater connection

A 2
braun
rosa
blau
rot
schw.
grün
A 1
grün = VDO Logic Bus 1
schwarz = VDO Logic Bus 2
braun = Masse Beleuchtung
rosa = + 12 V Beleuchtung
blau = Masse
rot = + 12 V
braun
rosa
blau
rot
schw.
grün

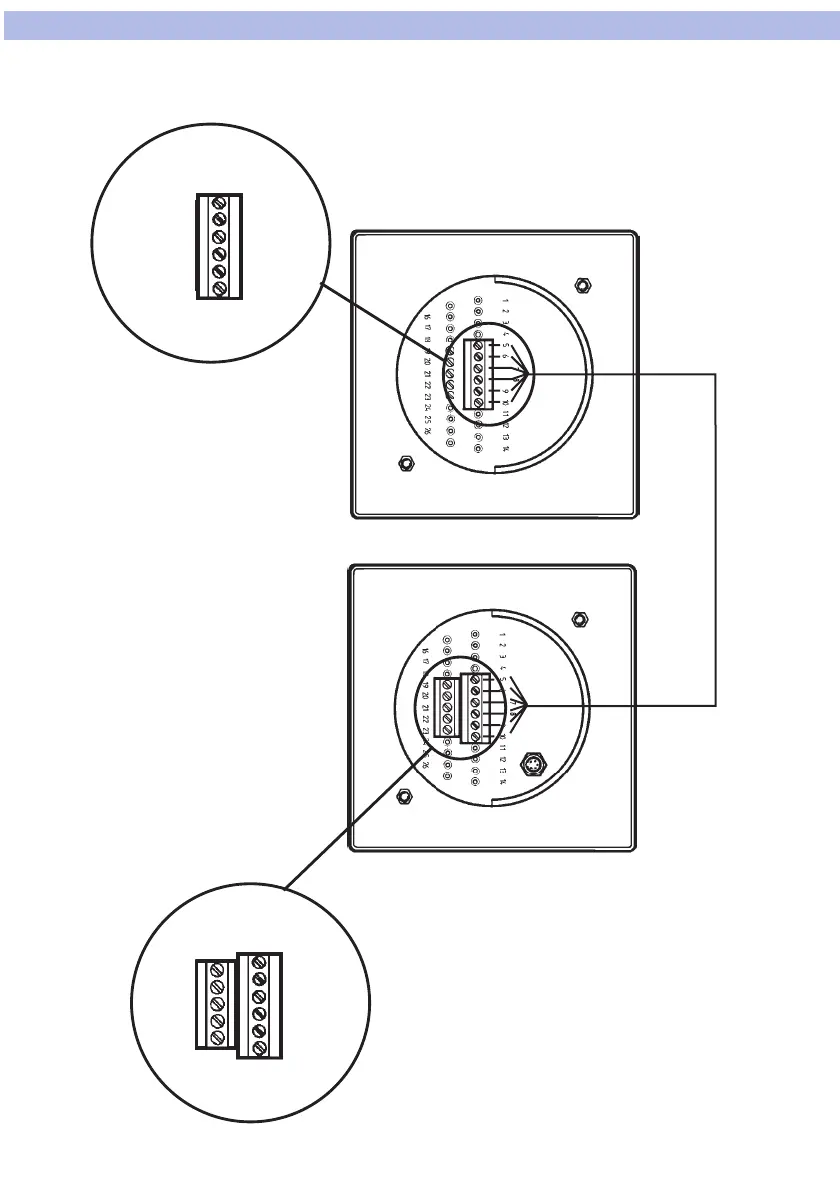

Close Hauled
Electrical installation
Repeater connection Close Hauled
49
INSTALLATION
green
black
brown
pink
blue
red
green
black
brown
pink
blue
red
green = VDO LOGIC Bus 1
black = VDO LOGIC Bus 2
brown = GND Illumination
pink = +12 V Illumination
blue = GND
red = +12 V
