Maintenance of the VDO LOGIC CLOSE HAULED
The indicating instrument is maintenance-free. Use a humid, non-nap-
ping or antistatic cloth. Do not use cleaning detergents.
Installation of the VDO LOGIC CLOSE HAULED
Please read the safety instructions on pages 31 and 32 befo-
re starting the installation.
Installation of the Indication Unit

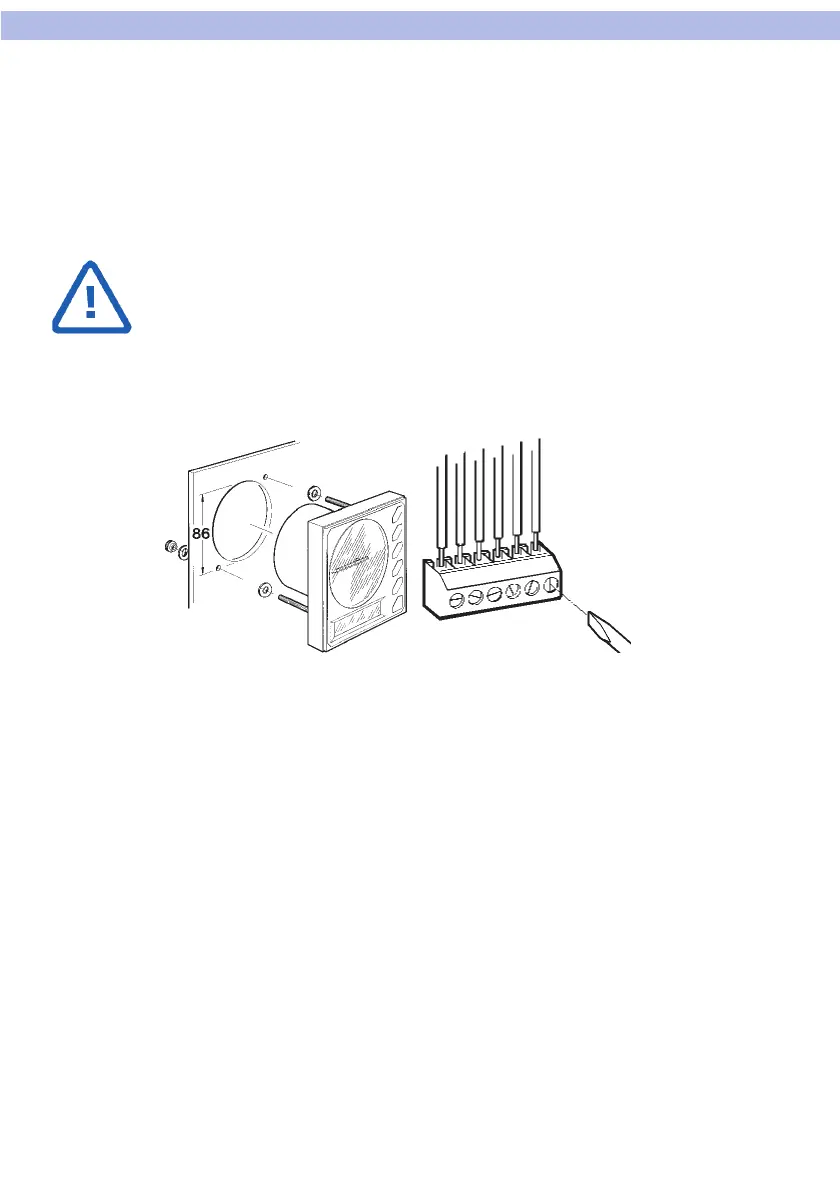

- Paste the supplied drilling template to the desired location.
The drilling template has been designed for correct spacing of the
instruments if other VDO instruments are also installed, and to
permit the installation of the white protection cap.
- Drill the indicated holes.
- Slowly pull off the template.
- Carefully clean the surroundings before inserting the indicating in-
strument. Remove all chips.
- Place the supplied neoprene mat on instrument back.
- Connect the instrument per wiring diagram (see "Electrical installa-
tion"), install the threaded pins, then insert the instrument.
- Fix the instrument by tightening the knurled nuts.
The knurled nuts should only be tightened hand-tight.
