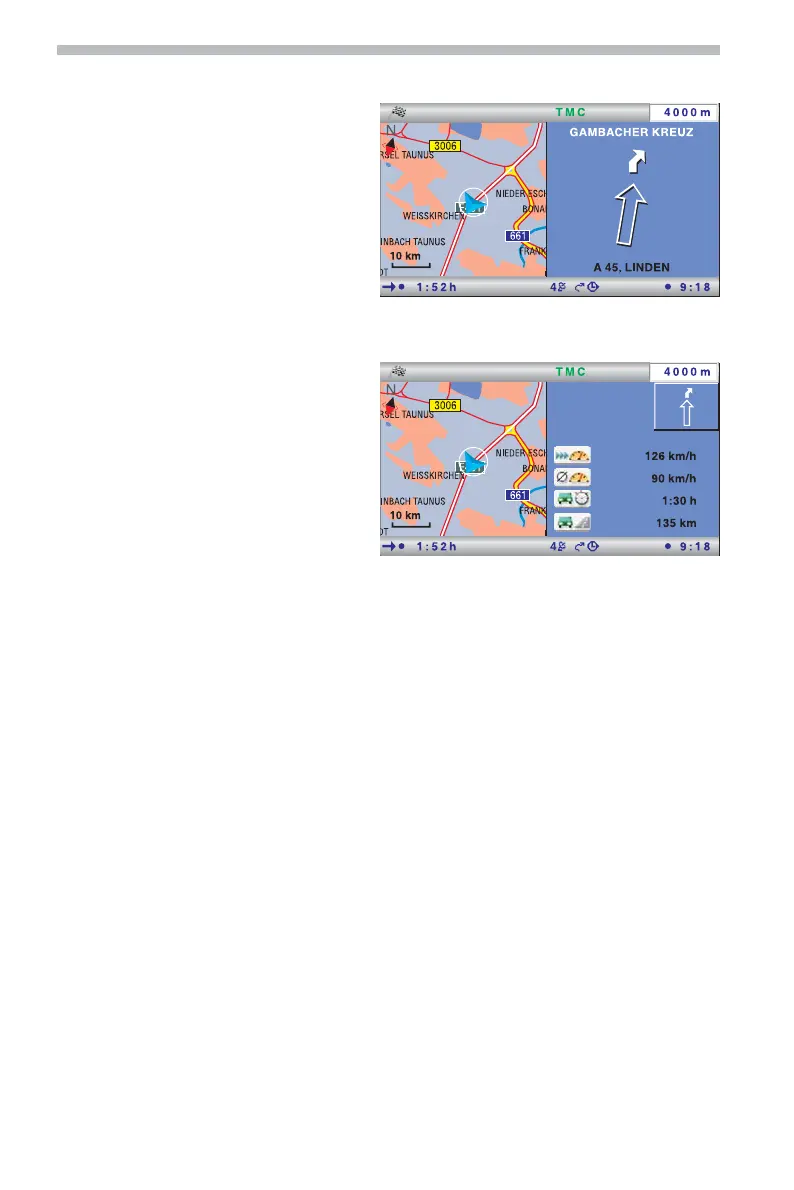

Split-screen display (combined display)
The two split-screen displays combine
the map display on the left side with
the symbol or the trip-computer
display on the right.
✎
The menu options for the split-
screen display are the same as for
the map display.
✎
In this display type, the “Traffic
view” menu option is not available.
■
Display of statistics data (trip computer)
The split-screen display with trip
computer provides the following
information:
❑
Current speed: Speed at that
moment
❑
Avg. speed*: Average speed so far
❑ Elapsed distance*: Distance
travelled
❑ Elapsed time*: Time travelled
✎
The data is deleted automatically
when a new destination is entered.
A
The speed display serves only as additional information. Only the vehicle’s speedometer
should be used to determine actual speed.
* This data is updated only during active guidance.
Status lines
At the upper and lower edges of the screen, two status lines are displayed, which
show a variety of information for navigating and about the system status.
Much of the displayed information can be selected for display in the “Settings –>
Screen config.” menu. Refer to the “Settings” section, page 32.
The top status line shows the menu title of the active menu. The “Statusline top left”
can be configured for the navigation screens.
In the bottom status line, you can find the following symbols, which are not
configurable:
❑
5 Ù: Display of the GPS reception status (number of satellites).
❑
Ú: The dynamic route planning is activated/deactivated.
❑
l: The audible navigation messages are deactivated
(flashing in the position of the Ú symbol).
❑
t: Selected route criterion for the route planning (in this case, “Fast”).
Navigation
24
