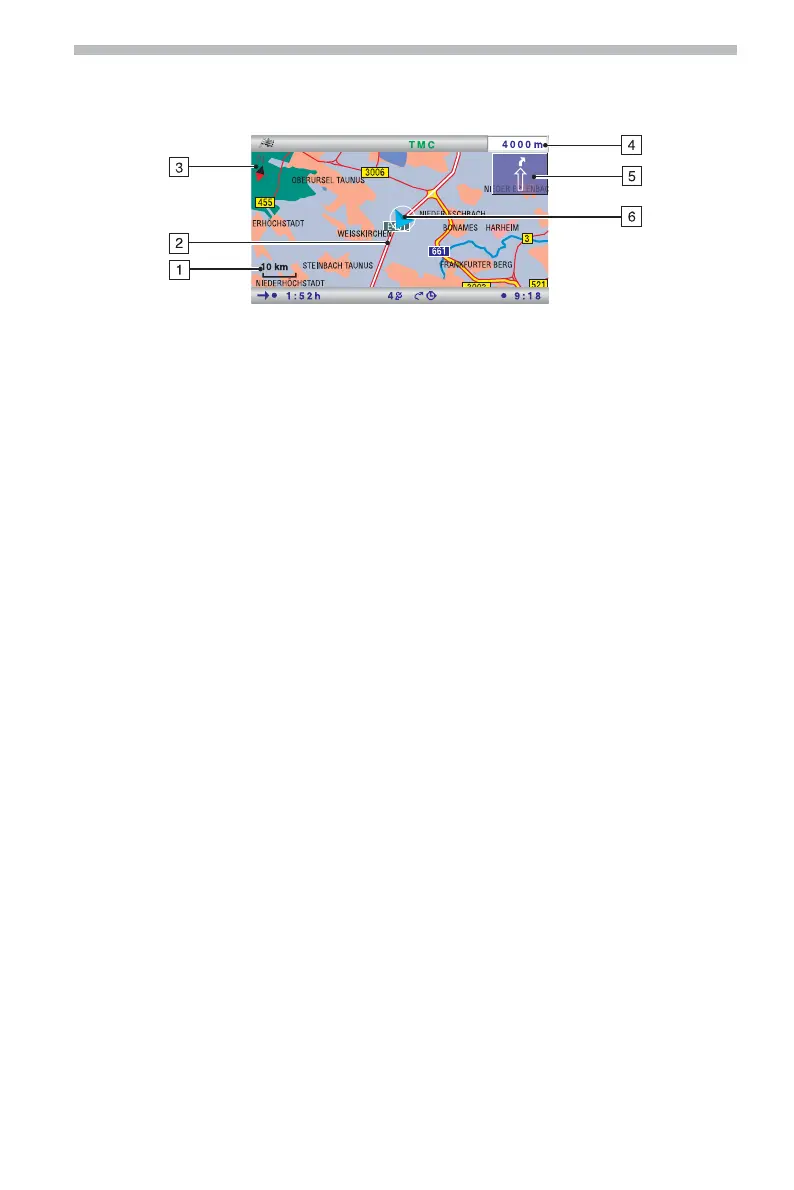

Map display
The map display shows the following information:
1 Selected scale.
2 Planned route (shown in white).
3 Compass: The black arrow points north.
4 Distance to the next change of direction.
5 Simplified diagram of the driving direction, the next junction or crossing.
6 Vehicle position; the arrow indicates current direction of travel.
■ Menu options in the map display
☞
Press the OK button to display a pop-up menu with the following options:
❑ Return: Returns to the Navigation or Start Menu.
❑ Scale: Opens the window for adjusting the scale.
❑ Map mode: Switches the map display (“Northwards”, “Steer direction” and “2D/
3D”). Using “3D angle” you can change the viewing angle of the 3D display in
4 stages. Use the 8 or 2 button for making the setting.
✎
The display type “Steer direction” is not available in the scales 50 km to 1,000 km.
✎
The display type “3D” is not available in the scales 50 km to 1,000 km and is always
given in the direction of travel.
✎
When switching to “Steer direction” or “3D” the navigation system switches the
scale automatically if necessary.
❑
Info: Opens the Info menu.
❑
Stop guidance: Stops guidance.
❑
Traffic view: Activates the cursor for the selection of TMC symbols on the map. See
“TMC traffic information” section.
✎
The option “Traffic view” is only available in the “2D/Northwards” map mode.
❑
Local detour: Upon request, plans a detour if there is a road obstruction in less than
50 km on the planned route.
This option is only displayed if dynamic route planning is deactivated and TMC
traffic information is activated. See “Dynamic route planning”, page 25 and
“Settings –> Message selection”, page 32.
❑
Plan new route: Upon request, plans a new route in light of the current traffic
situation. This option is only displayed if dynamic route planning is activated. See
“Dynamic route planning”, page 25.
Navigation
23
