Vechline 1206 Series User Manual

12
to ensure natural thermal convection. Please see Figure
2-1: Mounting.
CAUTION: If the controller is to be installed in an enclosed box,
it is important to ensure reliable heat dissipation through the box.
Step 2：Connect the system in the order of ❶battery ❷
load❸PV array in accordance with Figure 2-
2,”Schematic Wiring Diagram” and disconnect the system
in the reverse order❸❷❶.
CAUTION: While wiring the controller do not close the circuit
breaker or fuse and make sure that the leads of "+" and "-"
poles are connected correctly.

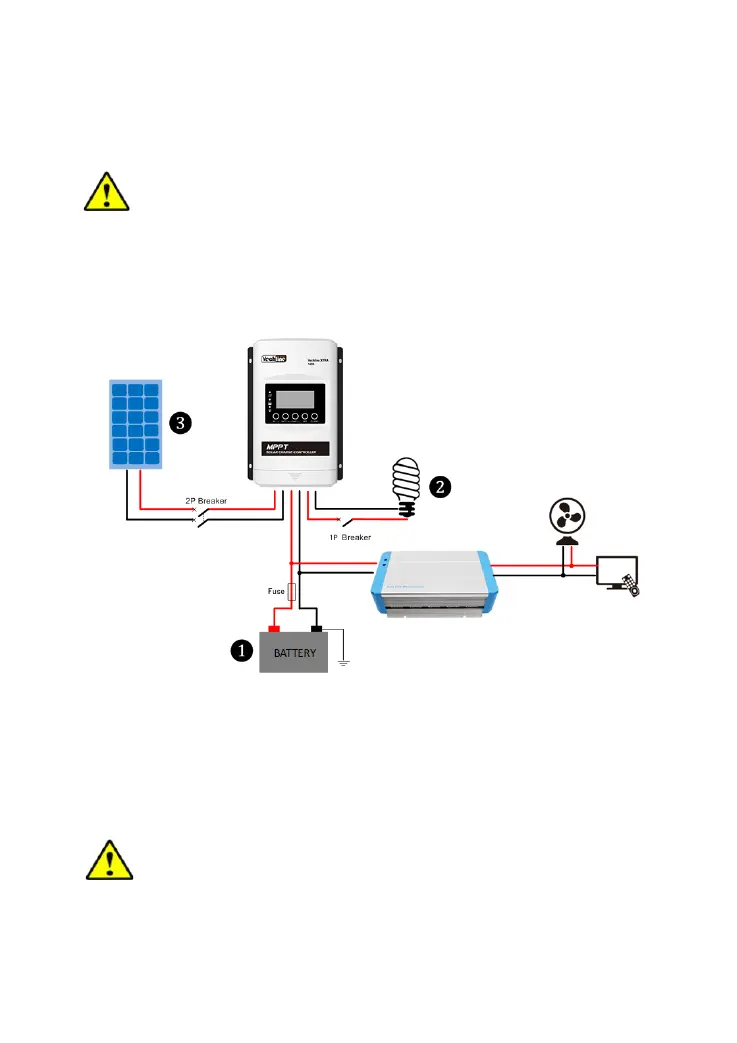

Figure 2-2 Schematic of wiring

Vechline 1206 Series Specifications

General

Brand	Vechline
Model	1206 Series
Category	Controller
Language	English
