Vechline 1206 Series User Manual

15

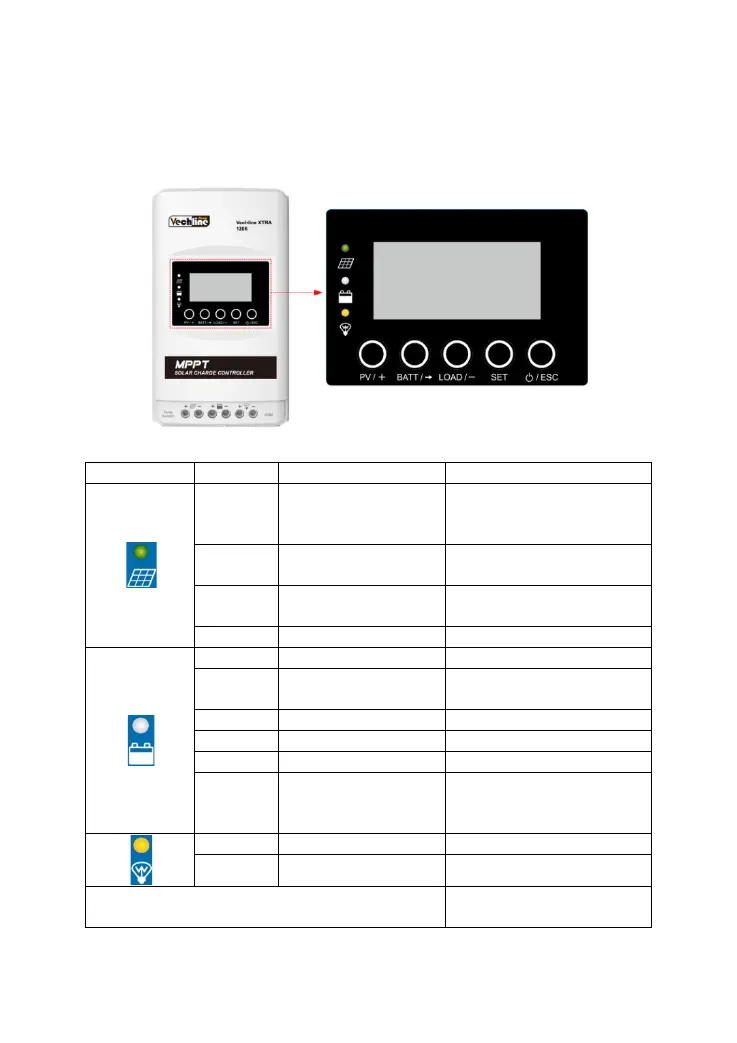

3. DISPLAY UNITS
3.1 ADVANCED DISPLAY UNITS (XDS2)
Indicator:
Indicator
Color
Status
Instruction
Green On Solid
PV connection normal but
low voltage(low
irradiance)
from PV, no charging
Green OFF
No PV voltage(night time)
or PV connection problem
Green
Slowly
Flashing(1Hz)
In charging
Green
Fast Flashing(4Hz)
PV Over voltage
Green
On Solid
Normal
Green
Slowly
Flashing(1Hz)
Full
Green
Fast Flashing(4Hz)
Over voltage
Orange
On Solid
Under voltage
Red
On Solid
Over discharged
Red
Slowly
Flashing(1Hz)
Battery Overheating
Lithium battery Low
temperature
①
Yellow
On Solid
Load ON
Yellow OFF Load OFF
PV&BATTLED fast flashing
Controller Overheating
System voltage error
②
