2 COMPONENTS INSTALLATION
2.9.C - Compact - Split with EV evaporator

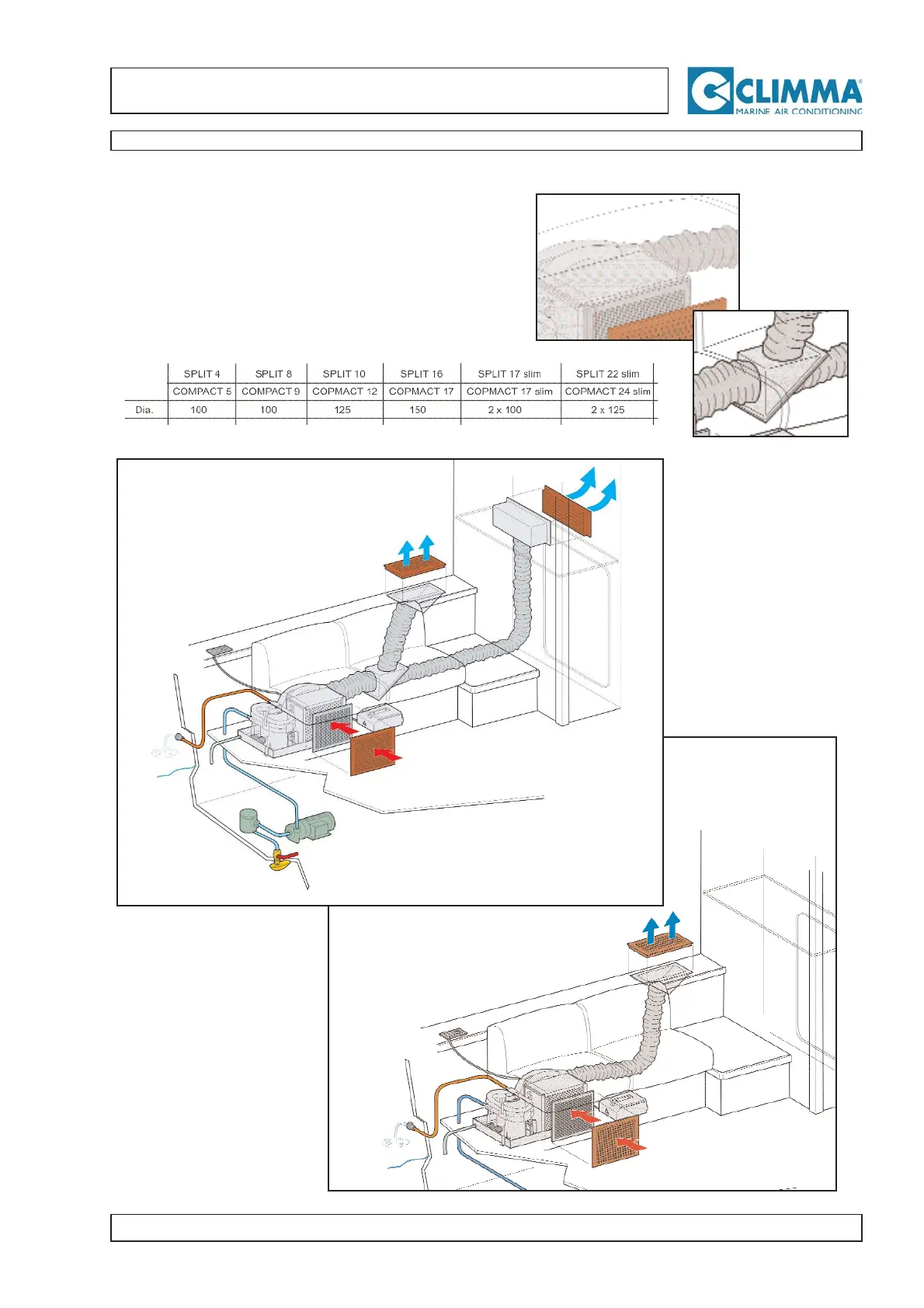

The unit is supplied with a plastic fan-duct adaptator.
From this, the circuit goes to plenum and one or more
grills. The main duct diameter should meet the following
table:
The fan can be rotat-
ed of 90° to adapt
the air-conditioner to
a shallow installation
with reduced height.
