CONDITIONING PLANTS
SPLIT and COMPACT models
page 8
www.climma.it
2 COMPONENTS INSTALLATION
2.10 - ELECTRICAL CONNECTION BOX
The connection box has the following functions:
1- Electrical connections:
- From mains supply
- To compressor-fan assembly
- To control panel
- To sea water pump
2- Safety control monitoring and compressor start delay (optional: see 4.6).
3- Power relay for compressor, reverse cycle valve or electrical heating.
4- 3 speed fan supply.
5- Compressor supply (start relay, run and start capacitors).

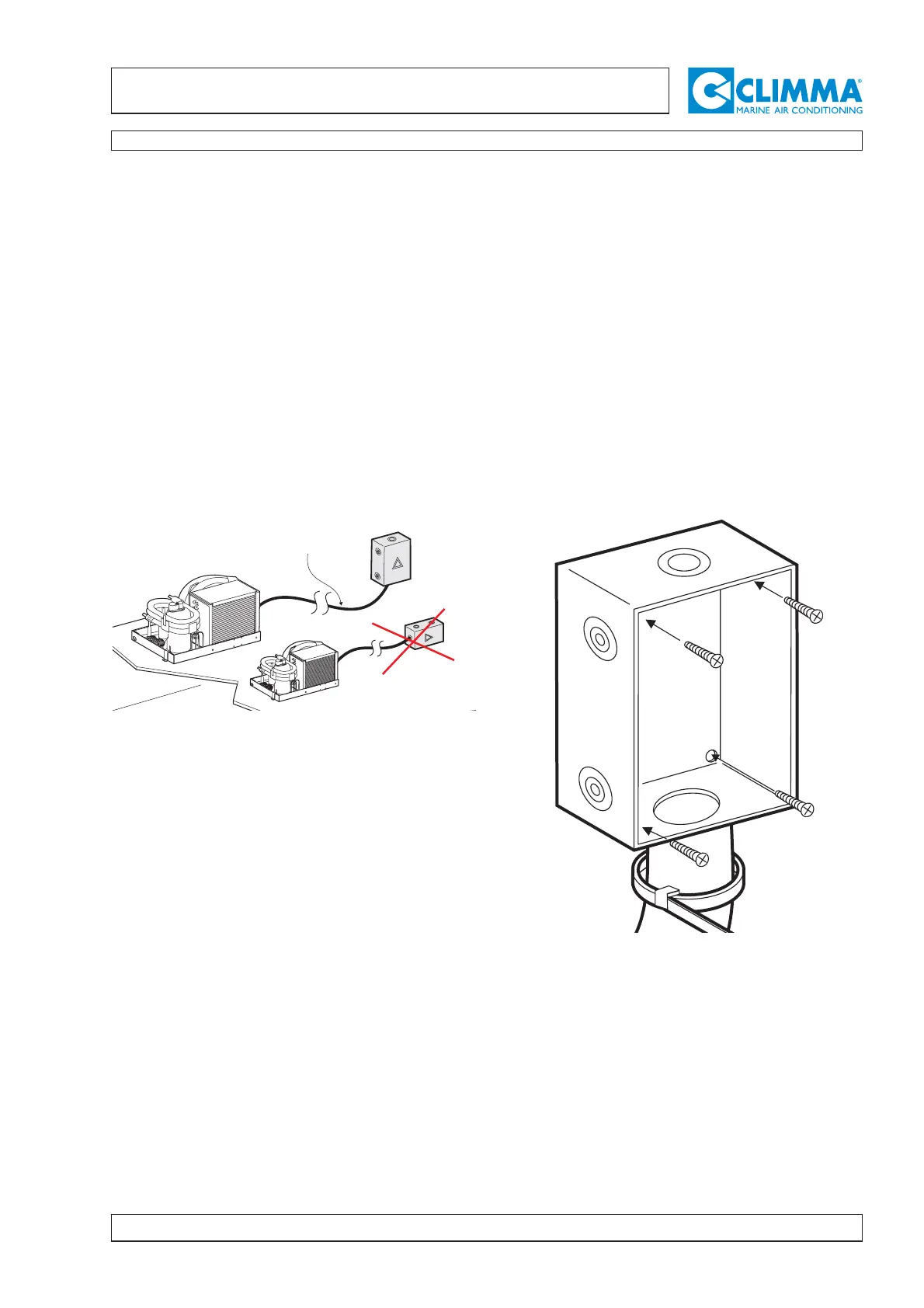

2.10.A - LOCATION
The connection box must be installed vertically on
a bulkhead near the conditioner unit to which is
linked with 1 m long cables. Cables should enter
from bottom side and should be fastened by
means of plastic strippers.
MAX1mt
2.10.B - INSTALLATION
The connection box has four holes in the base to
be used for fastening screws.
