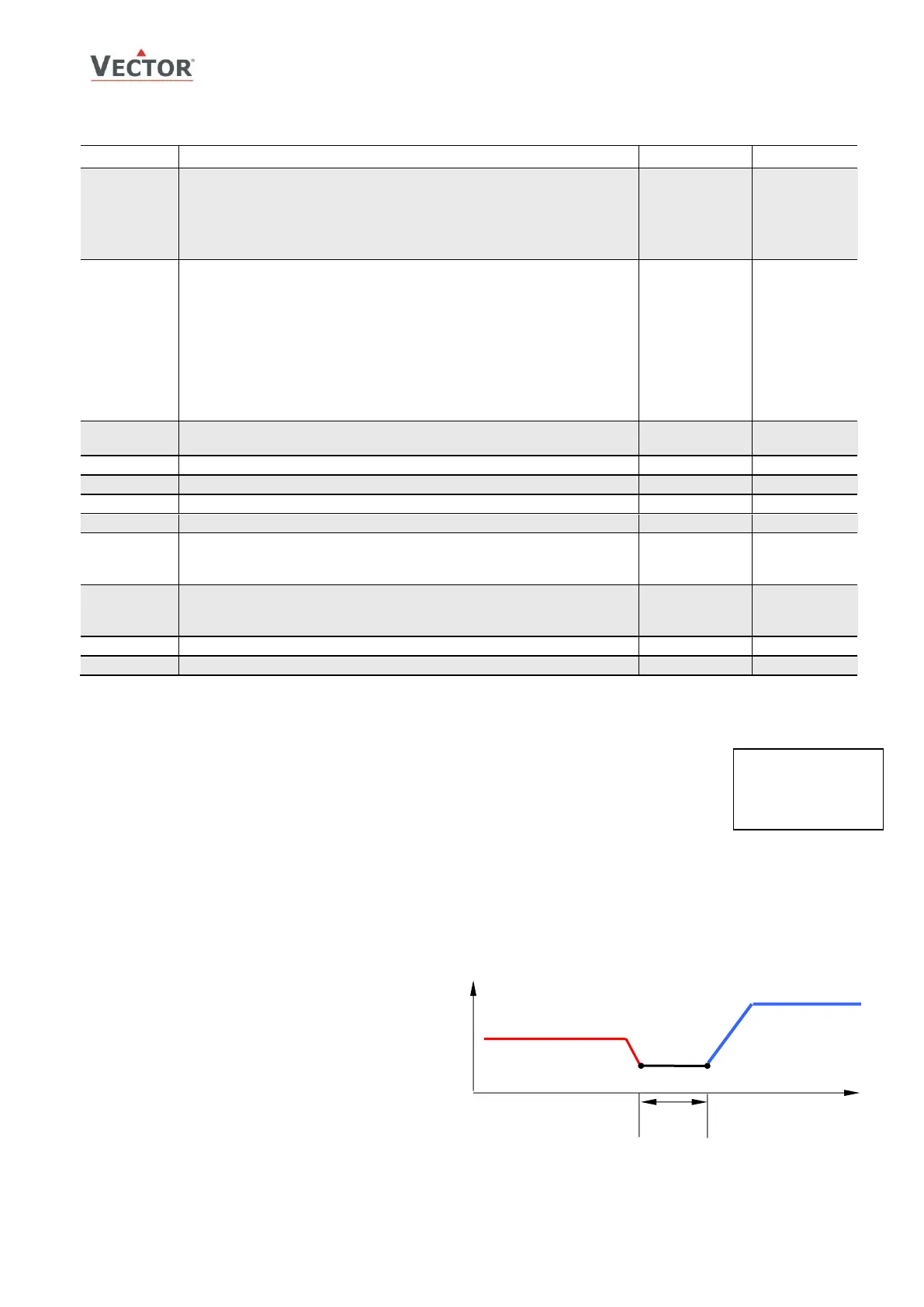

Vector TCI-W13-H Operation Instructions

TCI-W13, TCI-W23 Universal Controller
OUTPUT CONFIGURATION
Doc: 70-00-0365, V1.0, 20200304 © Vector Controls GmbH, Switzerland Page 12
Subject to alteration
W
H
W
C
Y
H1
,Y
R1
X
DZ
Y
C1,
Y
D1
Heating
Cooling
1A04
1A05
1A03
1A06
T (°C/F), U(V, mA)
100%
50%
0%
Output priority
1. Alarm level low
2. Alarm level high
3. Operation mode OFF
4. Control function
Output configuration
Analog output configuration (1A, 2A)
Parameter
Description
Range
Default
1A 00
Select control loop or special function (0 = OFF):
1 = LP1
2 = LP2
3 = Dehumidify (4 pipe, max LP1 cooling, LP2 direct)
4 = Manual positioning or by time schedule (0...100%)
5 = Transmit value of an input
0...5
1
1A 01
When 1A00 = 1 configure output:
0 = Heating/reverse
1 = Cooling/direct
2 = Heating and cooling (2 pipe)
3 = Transmit set point
When 1A00 = 4 Manual positioning or time schedule controlled
0 = Time schedule only
1 = Manual positioning and by time schedule
When 1A00 = 5, select input (0 = function disabled):
1 = 1T, 2 = 1H, 3 = 1U, 4 = 2T
0...4
0
1A 02
Type of output signal: OFF = 0...10 V, 0...20 mA, ON= 2...10 V,
4...20 mA
ON/OFF
OFF
1A 03
Minimum limitation of output signal default and in loop heating mode
0...100%
0
1A 04
Maximum limitation of output signal default and in loop heating mode
0...100%
100%
1A 05
Minimum limitation of output signal in loop cooling mode
0...100%
0%
1A 06
Maximum limitation of output signal in loop cooling mode
0...100%
100%
1A 07
Choose alarm to set output to 100% (output 0% on conflicting alarms)

Alarm: 1 2 3 4 5 6 7 8
ALA1...ALA8

1A 08
Choose alarm to set output to 0% (output 0% on conflicting alarms)

Alarm: 1 2 3 4 5 6 7 8
ALA1...ALA8

1A 09
Transmit value (1A00 = 5): minimum input value
per input
0 °C
1A 10
Transmit value (1A00 = 5): maximum input value
per input
100 °C
➔ Set jumpers on the back of the controller: 0...10 VDC (default), or 0...20 mA. Further define analog outputs with A02.
Custom ranges can be created by setting minimum and maximum signal limits.
➔ A control loop, special function, digital control or analog control sequence is not active until it is assigned an output.
➔ Low and high limit alarms are defined with input parameters. With output parameters assign an
alarm to an output and select output state. The required output for each alarm can be
individually selected. Multiple alarms can be signed to one output. If one alarm is selected to
simultaneously activate and deactivate an output, the one to de-activate has precedence.
➔ With manual positioning (1A00 = 4) position the output by time schedule or directly in 0.5%
steps. Setting 1A01 to 0 will disable manual positioning. The output will then only be controlled by time schedule.
➔ With dehumidifying (1A00 = 3) the maximum value is taken of cooling and dehumidifying. When the humidity is too
high, cooling will continue to operate, even without a demand for cooling, to dehumidify the air and heating will
activate to maintain comfort.
➔ Input values of inputs and set points of control loops may be transmitted on the analog outputs.
➔ For VAV function individual minimum and
maximum limits may be assigned for cooling
and heating. In VAV applications maximum
cooling output matches the maximum air
volume the VAV box is set to deliver. As
demand for airflow in cooling mode decreases,
airflow dwindles until it reaches minimum
cooling output (1A05). This minimum will be
based on the airflow needed at design cooling
and is typically 10% to 15% of maximum
cooling airflow. When this minimum is
reached the system is in dead-band – neither
heating nor cooling. Minimum airflow in
heating mode is set with 1A03. As the system
moves into heating mode, heating airflow
increases until it reaches the maximum
heating output (1A04), typically 30 to 50% of
maximum cooling airflow.
