TCI-W13, TCI-W23 Universal Controller
OPERATION
Doc: 70-00-0365, V1.0, 20200304 © Vector Controls GmbH, Switzerland Page 2
Subject to alteration
Technical specifications
Warning! This device is intended to be used for comfort applications. Where a device failure endangers human life and/or
property, it is the responsibility of the owner, designer and installer to add additional safety devices to prevent or detect a
system failure caused by such a device failure. The manufacturer of this device cannot be held liable for any damage
caused by such a failure.
Failure to follow specifications and local regulations may endanger life, cause equipment damage and void warranty.
Power Supply
Power Requirements
24 VAC ±10%, 50/60 Hz, Class 2, 2.0 A, 48 VA max.
24 VDC ±10%
Power Consumption
max. 3 VA
Electrical Connection
Terminal Connectors
0.34…2.5 mm
2
wire (AWG 22…13)
Clock backup
min. 48 hours
Signal inputs
Universal Input
Input Signal
Resolution
Impedance
Setting for voltage or current
0…10 V or 0…20 mA
9.76 mV or 0.019 mA (10 bit)
Voltage: 98 kΩ Current: 240 Ω
Universal Input
Input configured to remote temperature (RT) or digital input (DI)
Range
NTC (Sxx-Tn10 sensor): -40…140 °C (-40…284 °F)
Accuracy
-40…0 °C (-40…32 °F): 0.5 K
0…50 °C (32…122 °F): 0.2 K
50…100 °C (122…212 °F): 0.5 K
> 100 °C (> 212 °F): 1 K
Humidity Sensor AES3-HT-Ax:
Range
Measuring Accuracy
Hysteresis
Repeatability
Stability
Capacity sensor
0…100 % rH
See Figure to the right
 1%
 0.1%
< 0.5% / year
Signal outputs
Analog output
Output signal
Resolution
Maximum load
DC 0…10 V / 0…20 mA
9.76 mV / 0.019 mA
Voltage: ≥ 5 kΩ Current: ≤ 250 Ω
Relays outputs
Type of disconnection
AC voltage
DC voltage
Micro-interruption
0…48 VAC, 2(1.2) A max. (Observe local regulation)
0…30 VDC, 2 A max.
Insulation strength
between relays contacts and system
electronics
2000 VAC to EN 60730-1
Environment
Operation
Climatic conditions
Temperature
Humidity
To IEC 721-3-3
class 3K5
0…50 °C (32…122 °F)
< 95% RH non-condensing
Transport & storage
Climatic conditions
Temperature
Humidity
Mechanical conditions
To IEC 721-3-2 and IEC 721-3-1
class 3K3 and class 1K3
-25…70 °C (-13…158 °F)
< 95% RH non-condensing
class 2M2
Standards
Degree of protection
IP30 to EN 60529
Pollution class
II (EN 60730-1)
Safety class
III (IEC60536)
Overvoltage category
I (EN60730-1)
General
Material: Cover, back part
Mounting plate
Fire proof ABS plastic (UL94 class V-0)
Galvanized steel
Dimension (H x W x D)
Front part: 21 x 88 x 88 mm (0.8 x 3.5 x 3.5 in.)
Power case: ø 58 x 32 mm (ø 2.3” x 1.3”)
RoHS compliant according to
2011/65/EU
Weight (including package)
TCI-W13 = 253 g (8.9 oz), TCI-W23 = 262 g (9.3 oz)

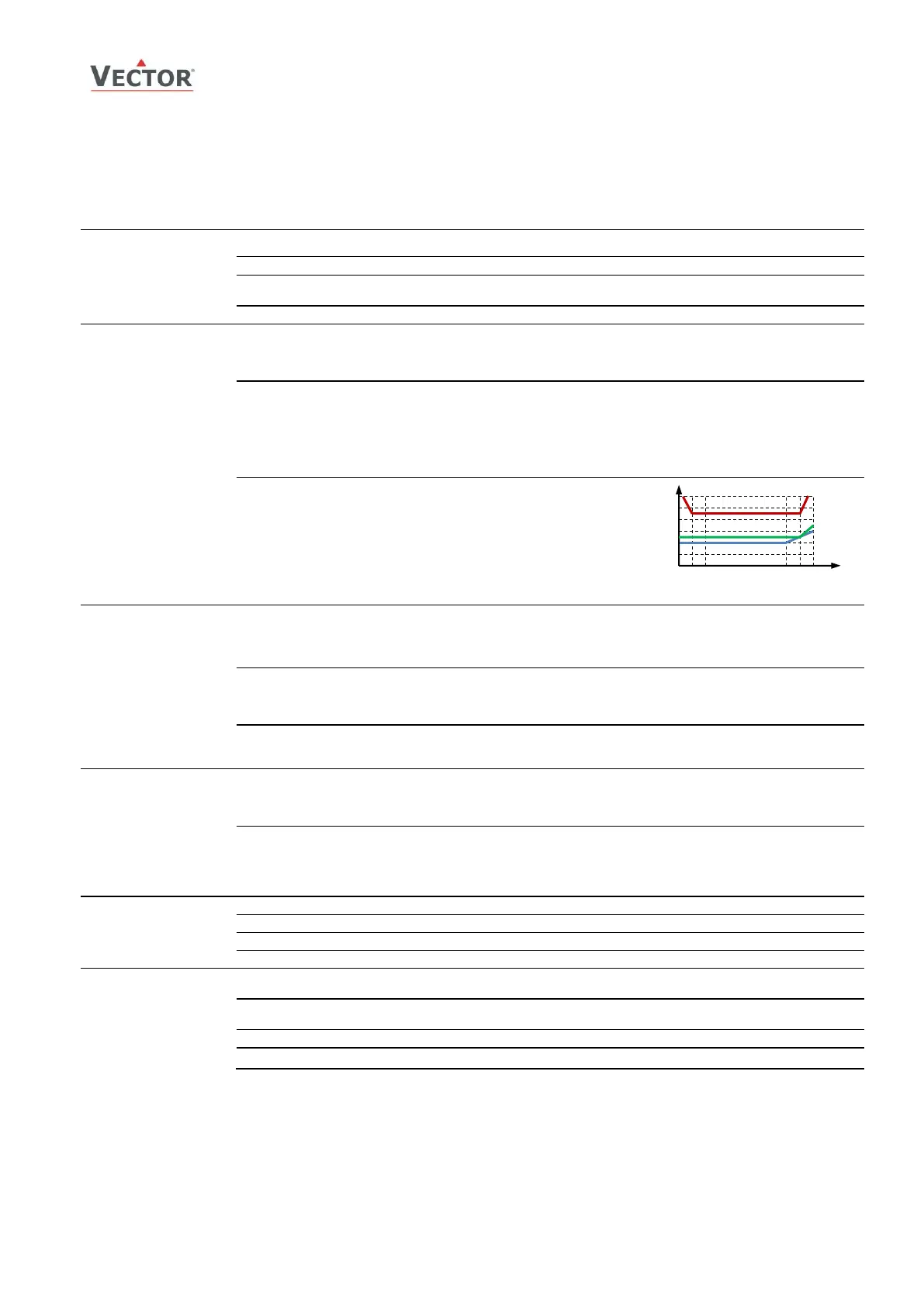

Figure 1: Max RH-tolerance at 25°C (77°F)
per sensor type
Relative humidity accuracy
%RH
%RH
10
20
30
40
100
90
0
50
60
70
80
±1
±0
±2
±3
±4
±5
AES3-HT-A2
AES3-HT-A3
AES3-HT-A5
