Vector VEC092 User Manual

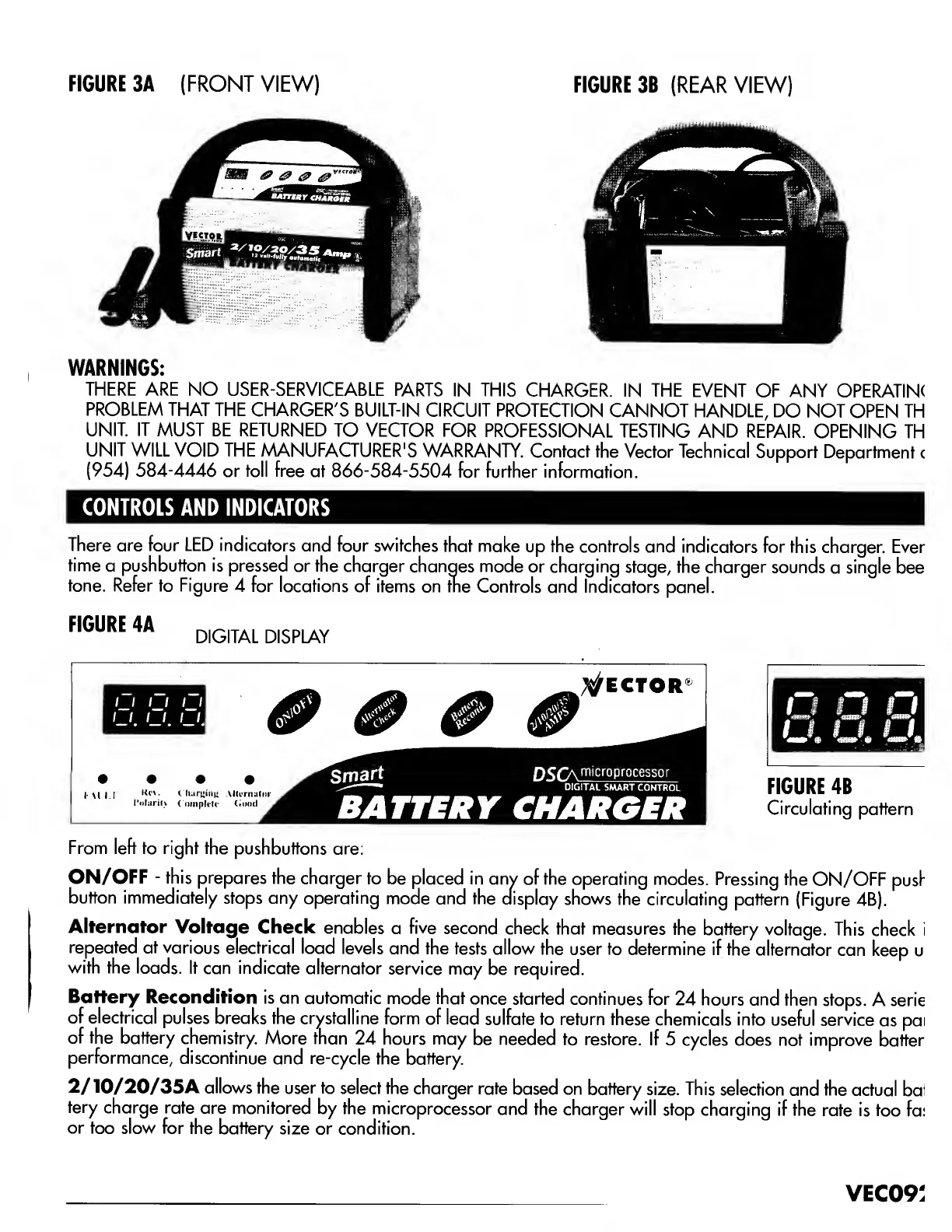

FIGURE 3A
(FRONT VIEW)
FIGURE
3B (REAR VIEW)
WARNINGS:
THERE ARE
NO USER-SERVICEABLE PARTS
IN THIS
CHARGER. IN THE
EVENT OF ANY
OPERATIN(
PROBLEM THAT
THE CHARGER'S
BUILT-IN CIRCUIT
PROTECTION CANNOT
HANDLE, DO
NOT OPEN TH
UNIT IT
MUST BE RETURNED
TO VECTOR FOR
PROFESSIONAL
TESTING AND REPAIR.
OPENING
TH
UNIT
WILL VOID THE MANUFACTURER'S
WARRANTY.
Contact the
Vector Technical
Support Department
c
(954)
584-4446
or toll free
at
866-584-5504
for further
information.
CONTROLS
AND INDICATORS
There are four LED indicators
and four switches
that make
up the controls and
indicators for this
charger. Ever
time
a
pushbutton is
pressed or the charger
changes mode
or charging
stage, the charger
sounds
a
single
bee
tone. Refer to Figure
4
for locations
of items on the
Controls and
Indicators panel.
FIGURE 4A
DIGITAL DISPLAY
i i i
i
i i
i
i i i
i
i
^ ^ ^
^
Rector
0
0
0
0
• • •
•
I T
i
*
vs
-
Oi;iri>iiiu
Alli'rnulnr
f'wluriit
( iimpli'lc (.uod
A
WS^^mart
DSCA
microprocessor
—
•
DIGITAL
SMART
COffTROl
r
BATTERY
CHARGER
u
u
u
u. u.
u.
FIGURE
4B
Circulating
pattern
From left to right the
pushbuttons are:
ON/OFF
-
this
prepares the charger
to be placed in
any of the
operating modes.
Pressing the
ON/OFF
pusr
button immediately
stops any operating
mode and the
display shows
the circulating
pattern
(Figure 4B).
Alternator
Voltage Check
enables
a
five
second check
that measures
the battery
voltage. This
check i
repeated at
various electrical load
levels and
the tests allow
the user to
determine if the
alternator
can keep
u
with the
loads. It can indicate
alternator
service may
be required.
Battery
Recondition
is an automatic
mode that
once started
continues for
24 hours and
then stops.
A serie
of
electrical pulses
breaks the crystalline
form of lead
sulfate to
return these
chemicals into
useful service
as
pai
of the
battery chemistry.
More than
24 hours may
be
needed
to restore.
If 5 cycles
does not improve
batter
performance,
discontinue and re-cycle
the battery.
2/10/20/35A allows
the user to
select the charger
rate
based on battery
size. This selection
and the
actual bal
tery
charge rate
are monitored
by the
microprocessor
and the charger
will stop
charging if the
rate is too
fa;
or too slow for
the battery
size or condition.
VEC09'
