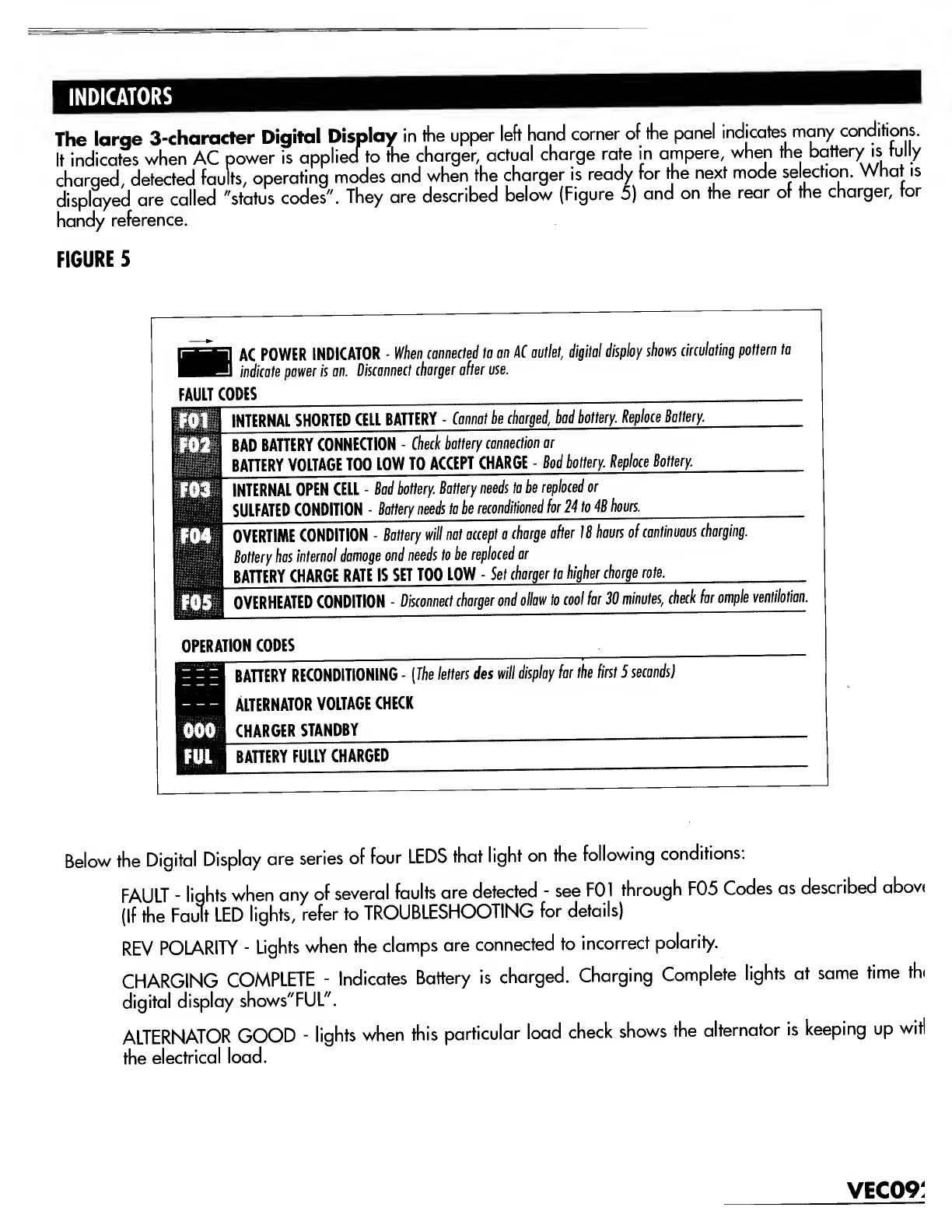

INDICATORS
The
large
3-characfer
Digital
Display
in
the
upper
left
hand
corner
of the
panel
indicates
many
conditions.
It
indicates
when AC
power
is
applied
to
the
charger,
actual
charge
rate
in
ampere,
when the
battery
is
ru
I
ly
charqed,
detected
faults,
operating
modes
and
when
the
charger
is ready
for
the
next
mode
selection.
What
is
displayed
are
called
"status
codes".
They
are
described
below
(Figure
5)
and
on the
rear
ot the
charger,
tor
handy
reference.
FIGURE
5
AC
POWER
INDICATOR
-
When
connected
to
an AC
outlet,
digital
display
shows
circulating
pattern
to
indicate
power is
on.
Disconnect
charger
after
use.
FAULT
CODES
INTERNAL
SHORTED
CELL
BATTERY
-
Cannot
be
charged,
bad
battery.
Replace
Battery.
BAD
BATTERY
CONNECTION
-
Check
battery
connection
or
BATTERY
VOLTAGE
TOO
LOW
TO
ACCEPT
CHARGE
-
Bad
battery.
Replace
Battery.
INTERNAL
OPEN
CELL
-
Bad
battery.
Battery needs
to be
replaced
or
SULFATED
CONDITION
-
Battery
needs to be
reconditioned
for
24
to
48
hours.
OVERTIME
CONDITION
-
Battery
will
not
accept a
charge
after 18
hours
of
continuous
charging.
Battery
has
internal
damage
and needs
to
be
replaced
or
BATTERY
CHARGE
RATE IS
SET
TOO
LOW
-
Set
charger
to
higher
charge
rate.
OVERHEATED
CONDITION
-
Disconnect
charger
and
allow
to
cool
for
30
minutes,
check
for
ample
ventilation.
OPERATION
CODES
BATTERY
RECONDITIONING
-
[Jhe
letters
des will
display
for the
first
5
seconds)
ALTERNATOR
VOLTAGE
CHECK
CHARGER
STANDBY
BATTERY
FULLY
CHARGED
Below
the
Digital
Display
are
series
of
four
LEDS
that
light
on the
following
conditions:
FAULT
-
lights
when
any
of
several
faults
are
detected
-
see
FOl
through
F05
Codes
as
described
abov<
(If
the
Fault
LED
lights,
refer
to
TROUBLESHOOTING
for
details)
REV
POLARITY
-
Lights
when
the
clamps
are
connected
to
incorrect
polarity.
CHARGING
COMPLETE
-
Indicates
Battery
is
charged.
Charging
Complete
lights
at
same
time
th<
digital
display
shows"FUL".
ALTERNATOR
GOOD
-
lights
when
this
particular
load
check
shows
the
alternator
is
keeping
up
witl
the
electrical
load.
VEC091
