Veeder-Root TLS-350 PLUS Installation Manual

Installation Guide National Electrical Code Compliance
7
Equipment Dimensions
Dimensions of the TLS RF are shown in Figure 3.
0.34''
(8,6 mm) typ.
7.4"
(188 mm)
6.4''
(163 mm)
5.7''
(145 mm)
2" (51 mm)
5.3''
(135 mm)
consoles\tlsrf\fig3.eps
0.22'' (5,6 mm) dia.
3.75"
(95mm)
0.4''
(10 mm)
0.93''
(23,6 mm)
0.93''
(24 mm)
1.25''
(32 mm)
0.93''
(23,6 mm)
2.6''
(66)
0.7''
(17,8)
0.93''
(24 mm)
6.7"
(170 mm)
1.18''
(30 mm)
1
1
2
1
2

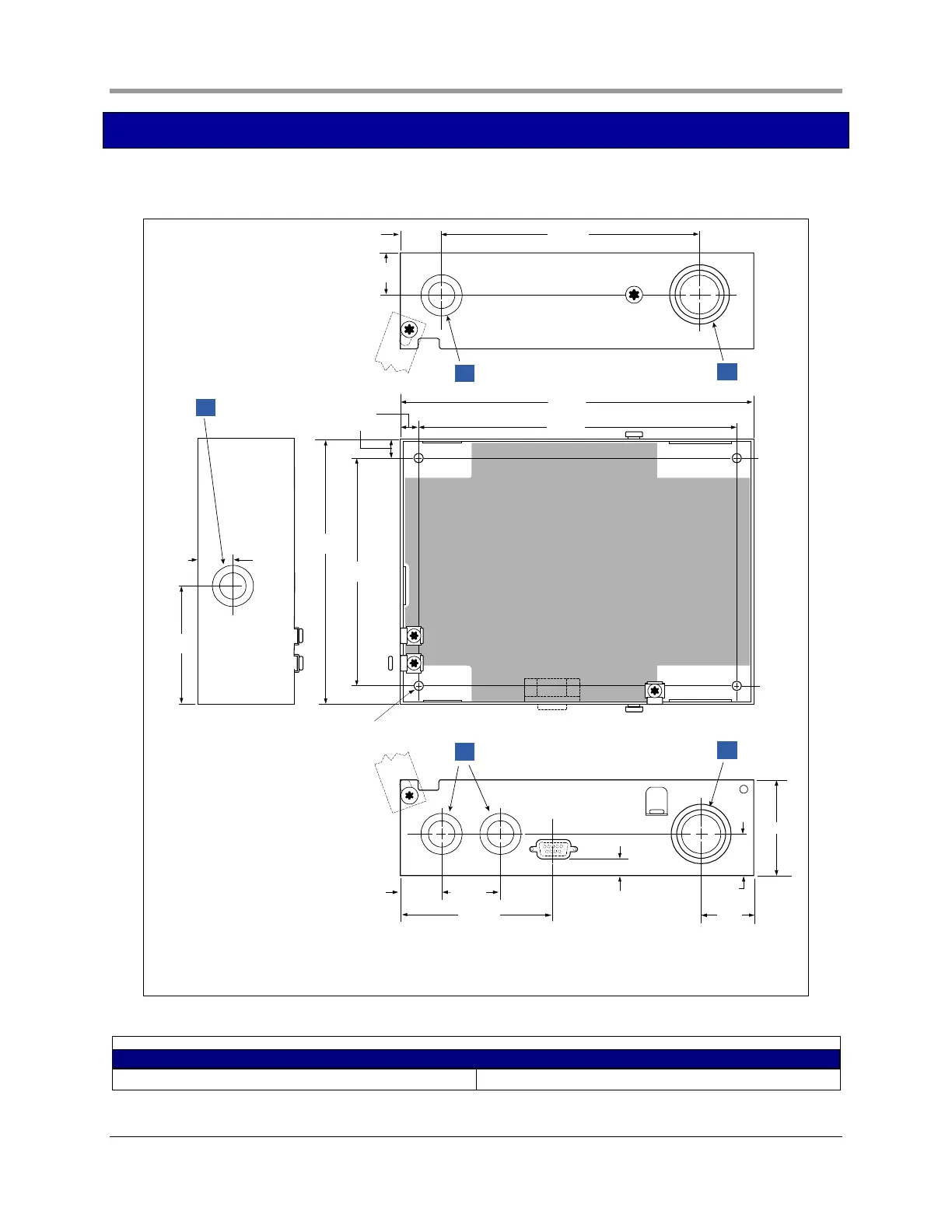

Figure 3. TLS RF dimensions and designated conduit knockouts
LEGEND FOR NUMBERED BOXES IN FIGURE 3
1. Designated power wiring knockouts. 2. Designated intrinsically-safe wiring knockouts.

Veeder-Root TLS-350 PLUS Specifications

General

Category	Measuring Instruments
Number of Tanks Supported	Up to 16
Water Detection	Yes
Inventory Management	Yes
Delivery Reporting	Yes
Alarm Management	Yes
Display	LCD
Enclosure	NEMA 4X
Model	TLS-350 PLUS
Manufacturer	Veeder-Root
Temperature Measurement	Yes
Type	Automatic Tank Gauge
Leak Detection	Yes
Communication	RS-232, Ethernet
Product Type	Tank Gauging System
Compliance	UL, ATEX
