SI23 Solar Pump VFD Manual
11

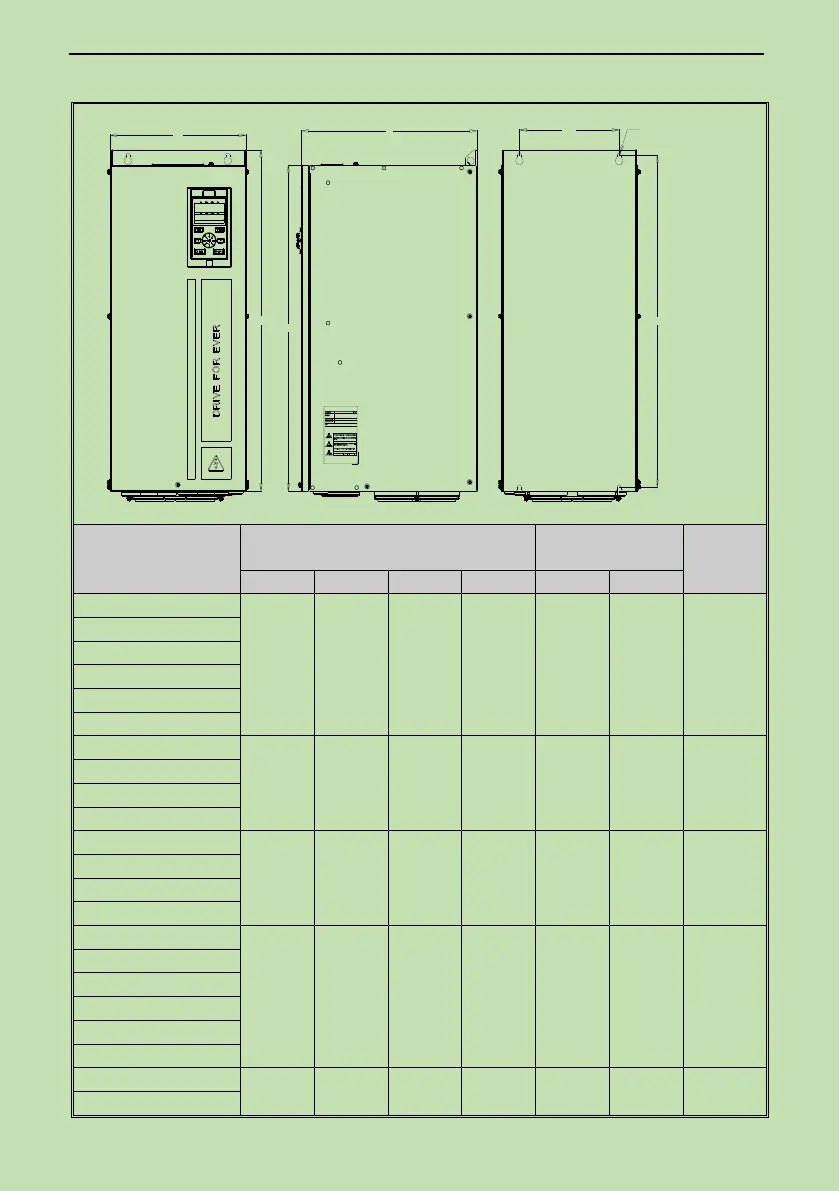

Overall Dimension of VFD (Steel)
W
H
D
H1
W1
H2
Installation Diameter
MODEL
Overall Dimension(mm)
Installation
Dimension(mm)
Aperture
W
H
H1
D
W1
H2
SI23-T3-045G-A
240
560
535
310
176
544
ф4-M6
SI23-T3-055P-A
SI23-T3-055G-A
SI23-T3-075P-A
SI23-T3-075G-A
SI23-T3-090P-A
SI23-T3-090G-A
270
638
580
350
195
615
ф4-M8
SI23-T3-110P-A
SI23-T3-110G-A
SI23-T3-132P-A
SI23-T3-132G-A
350
738
680
405
220
715
ф4-M8
SI23-T3-160P-A
SI23-T3-160G-A
SI23-T3-185P-A
SI23-T3-185G-A
360
940
850
480
200
910
ф4-M16
SI23-T3-200P-A
SI23-T3-200G-A
SI23-T3-220P-A
SI23-T3-220G-A
SI23-T3-250P-A
SI23-T3-250G-A
370
1140
1050
545
200
1110
ф4-M16
SI23-T3-280P-A
