IG-032-EN version 05; 18/06/2019
15
General instructions
pfu basic range: Prefabricated concrete
enclosure, ground-level walk-in type
Handling

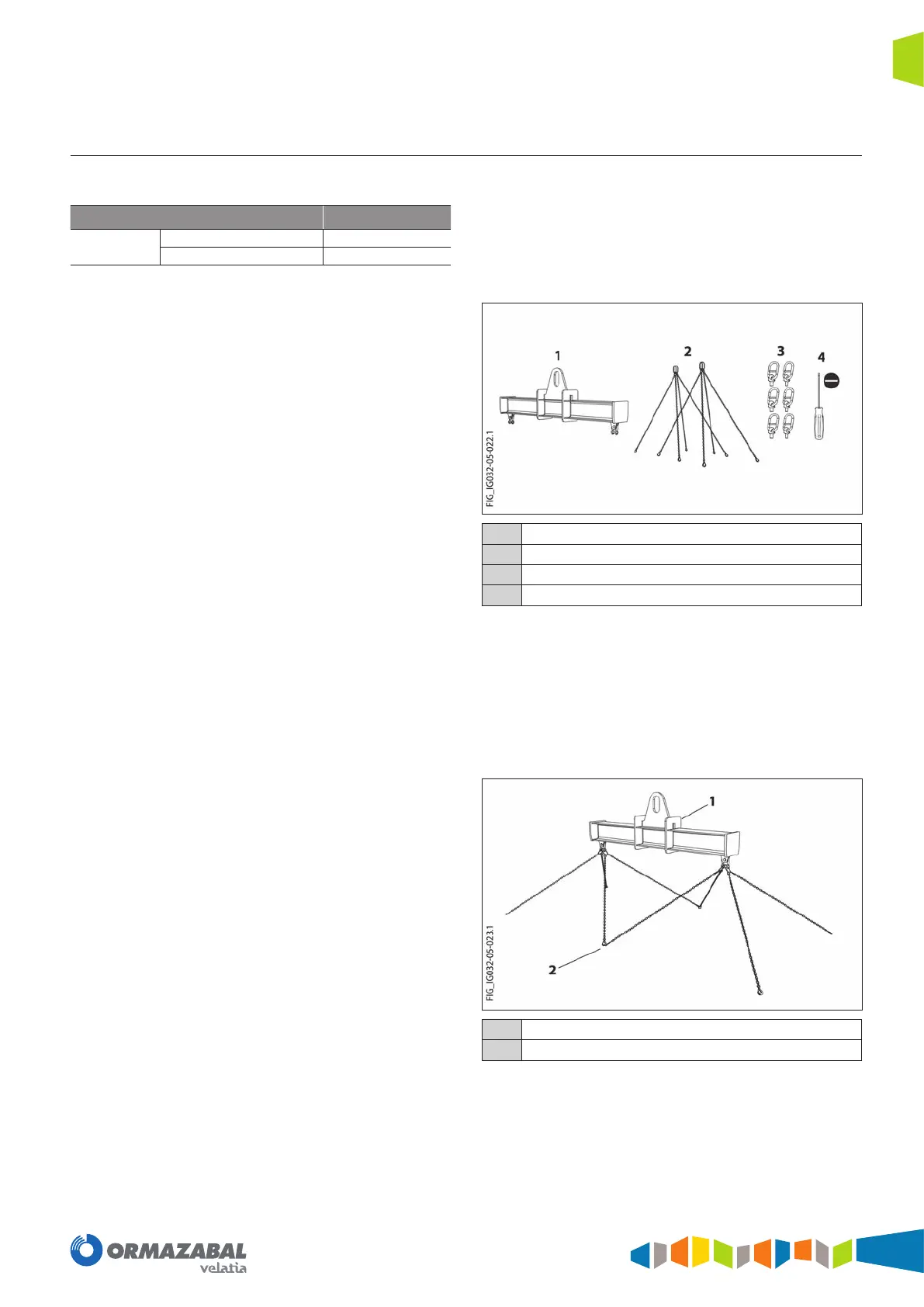

6.2.2. pfu-5 roof
The weight of the pfu-5's roof is as follows:
Model Weight [kg]
pfu-5
Standard roof 4000
Raised roof 4600
Table 6.3. pfu-5 roof weight
The following tools and equipment are required to correctly
handle the roof:
1
35 T Lifting beam
2
Chains/slings (minimum length 3 m, maximum length 3.5 m)
3
High-strength M20 rotating eyebolts
4
Flat-head screwdriver
Figure 6.11. Tools and equipment required
Proceed as follows to handle the roof:
1. Remove the six plugs that cover the threaded inserts in
the roof using a at-head screwdriver, and keep them
in a safe place.
2. Thread the six eyebolts in the inserts, throughout their
length.
3. Join the tools according to Figure 6.12. Hook the lifting
beam on the crane hook.
1
35 T Lifting beam
2
Chains/slings (minimum length 3 m, maximum length 3.5 m)
Figure 6.12. Lifting tools set
