IG-032-EN version 05; 18/06/2019
20
Installation
General instructions
pfu basic range: Prefabricated concrete
enclosure, ground-level walk-in type
8.3. Planning

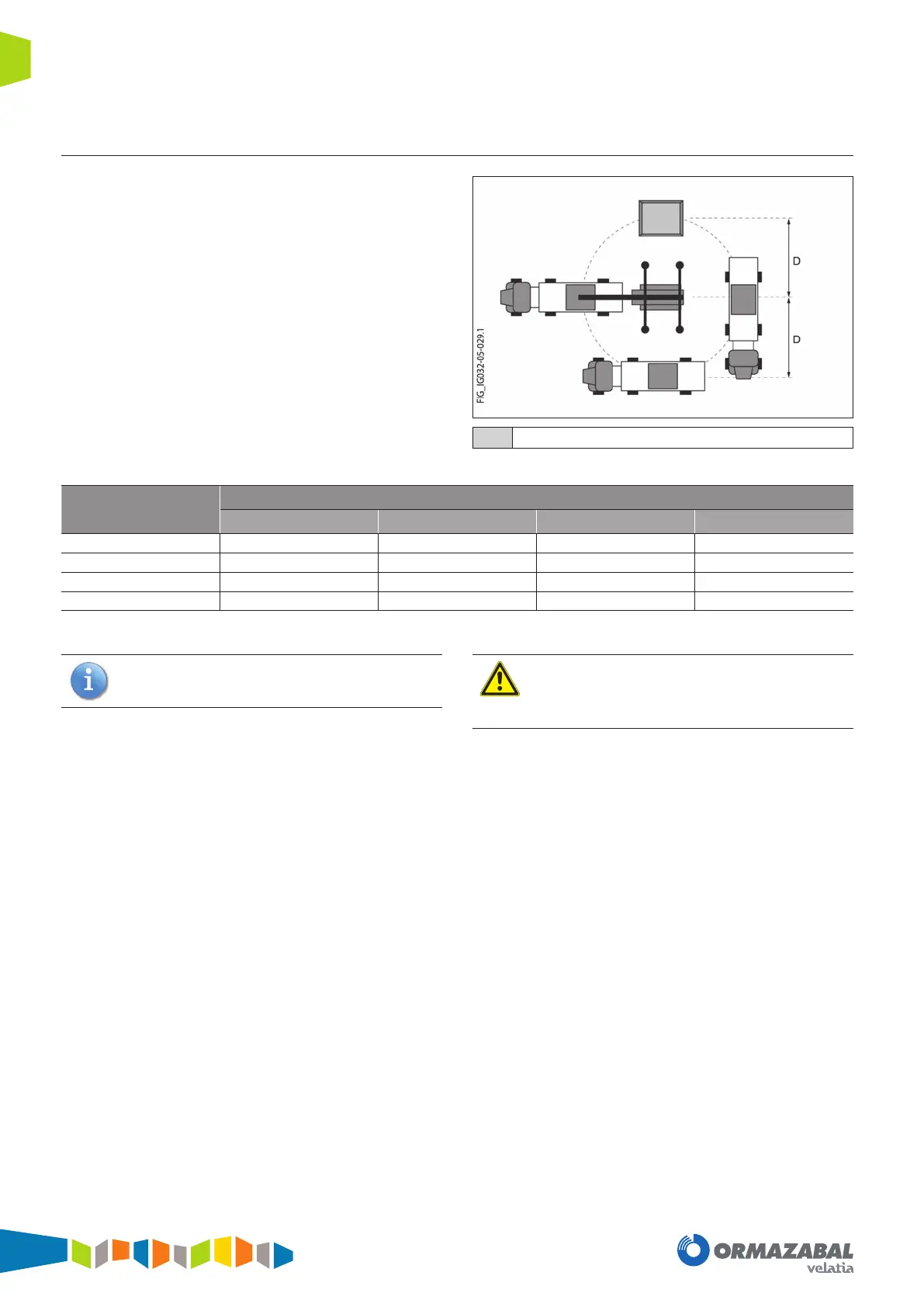

On the location sketch or drawing, mark out the spaces
available for the crane and the transport truck.
D
Maximum length of the crane elevation arm
Figure 8.1. O oad operation
Model
Distance "D" for handling the pfu
6000 mm 7000 mm 8000 mm 9000 mm
pfu-3
40 t. 40 t. 60 t. 60 t.
pfu-4
40 t. 60 t. 60 t. 80 t.
pfu-5
60 t. 60 t. 80 t. 100 t.
pfu-7
80 t. 100 t. 100 t. -
Table 8.1. Crane power in accordance with distance "D" for handling the pfu
For other distances "D", please contact Ormazabal.
The existence of any circumstance or object that could
impede or obstruct the smooth operation of the installation
must be indicated (posts, cables, ditches, walls, pipelines,
etc.), marking their positions on the drawing.
Pay special attention to the position the truck crane
to ensure the support jacks are not too close to the
excavation, which could lead to collapse. The support
jacks must be more than 2.50m from the excavation.
