General instructions
pfu basic range: Prefabricated concrete
enclosure, ground-level walk-in type
Handling
3. Join the tools according to Figure 6.15. Hook the lifting
beam on the crane hook.
1
35 T Lifting beam
2
Chains/slings

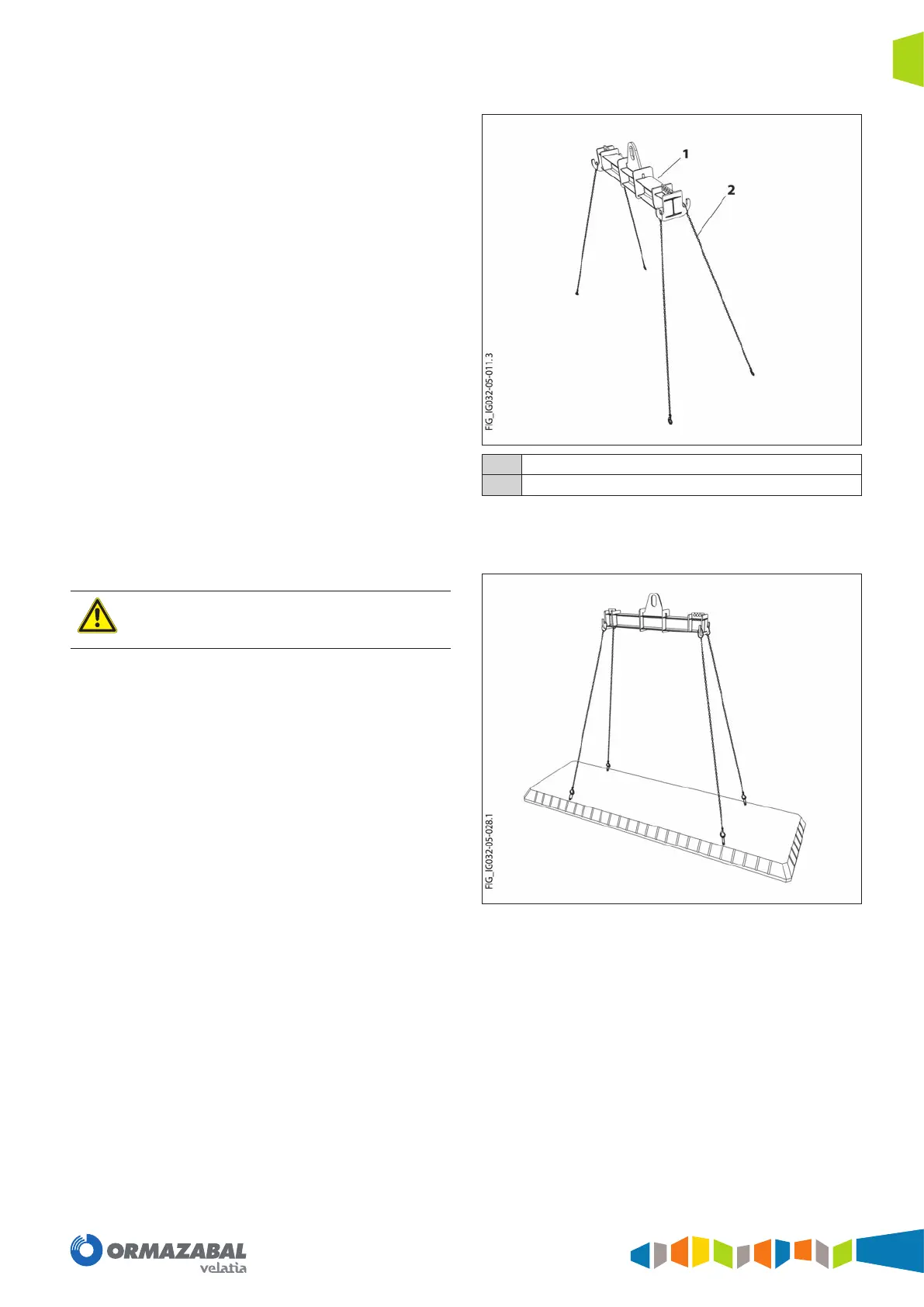

Figure 6.15. Lifting tools set
4. Hook the chain/sling hooks on the eye bolts.
5. Lift the pfu roof using the crane.
When removing the roof, support it on wooden
boards. The boards can rest on horizontal ground or
the bed of a truck.
Figure 6.16. Lifting and positioning the pfu-7 roof
6. Once handling is complete, release the four hooks from
the bottom chains or slings, unscrew the four eyebolts
and return the plugs removed in step 1.
