General instructions
pfu basic range: Prefabricated concrete
enclosure, ground-level walk-in type
Installation
2. Loosen the wing nut and the clamp. Set aside both
parts.

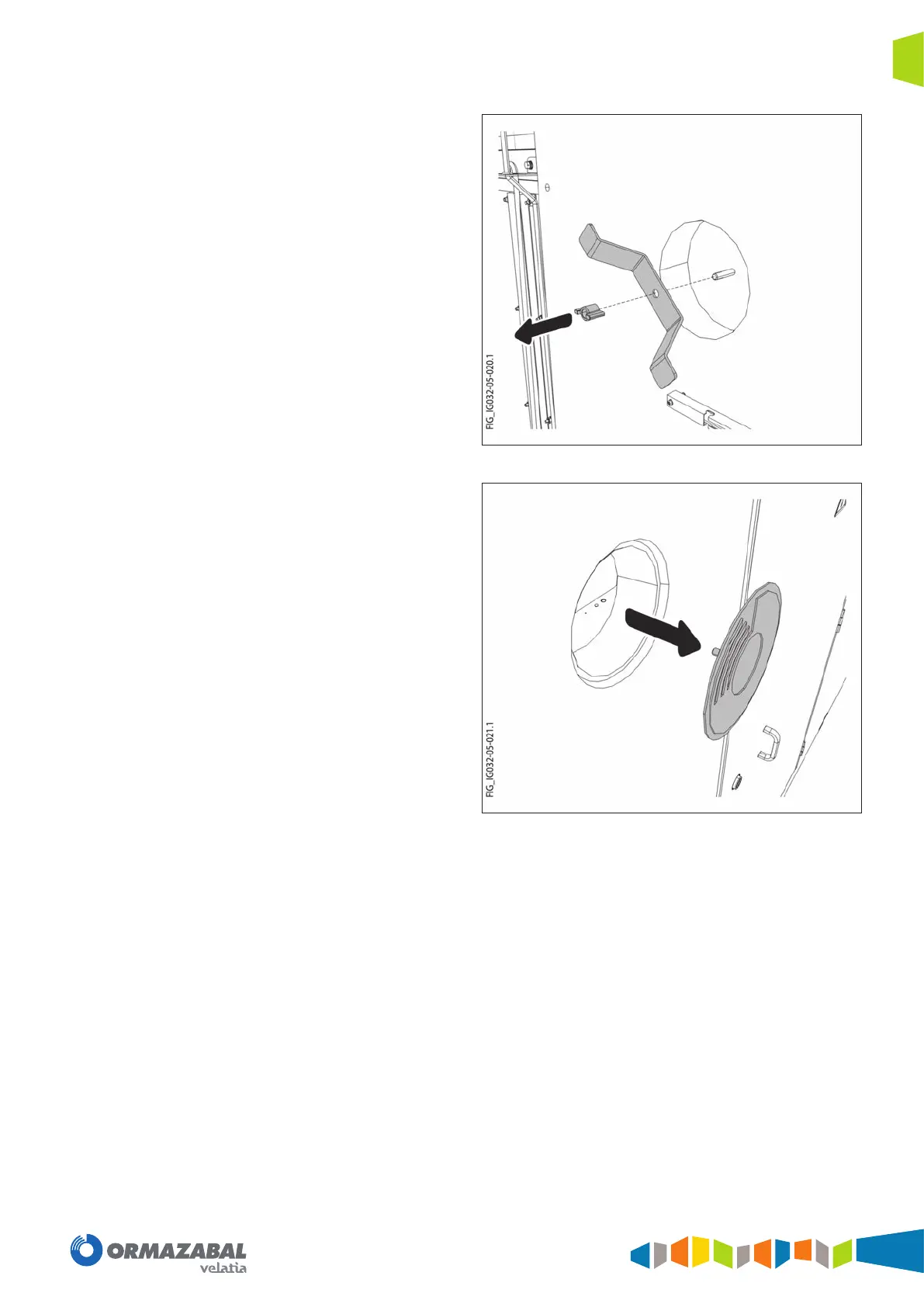

Figure 8.12. Extracting the wing nut and the clamp
3. Open the hole by pushing the cover towards the
outside of the building. Set aside the cover along with
the wing nut and the clamp, in order to close the hole
when auxiliary supply in low-voltage nishes.
Figure 8.13. Hole opening
4. Insert the cables through the open hole.
