Velleman K8010 - Diodes (Check the polarity!)

_______________________________________________________________________________________________________________________________________________________
8

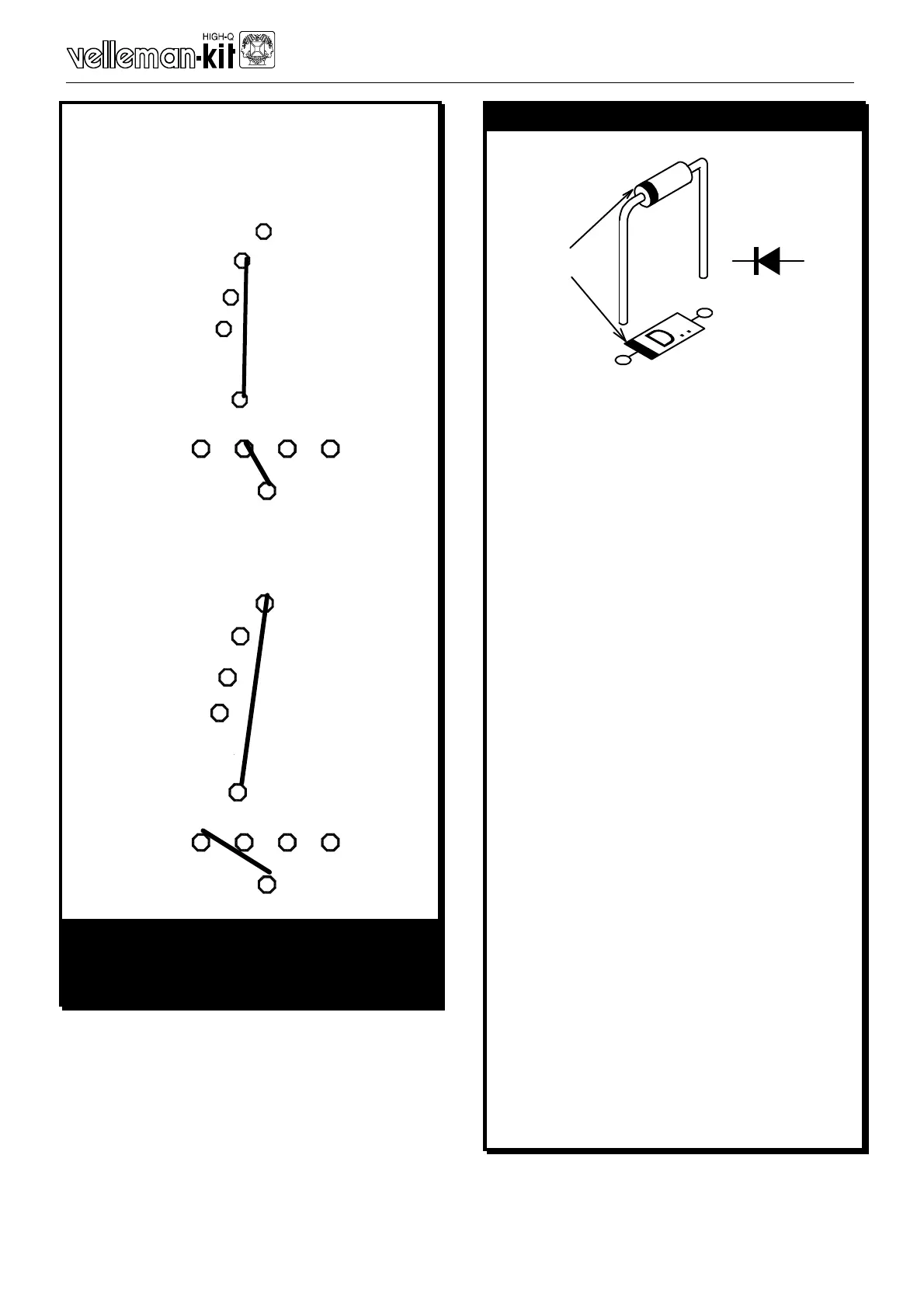

For 220V - 230V input, mount:
q JC at the voltage selection 1
D
C
B
A
q JC at the voltage selection 2
D
C
B
A
For 240V -245V mains input, mount:
q JD at the voltage selection 1
D
C
B
A
q JD at the voltage selection 2
D
C
B
A
REMARK:
Strike out the NOT used mains voltage indica-
tion at the back of the enclosure !! Use a per-
manent black marker
4. DIODES (Check the polarity!)
D...
CATHODE
q D1: 1N4148
q D2 :1N4148
q D3: 1N4007
q D4: 1N4148
q D5: 1N4007
q D6: 1N4148
q D7: 1N4148
q D8: 1N4148
q D9: 1N4007
q D10: 1N4007
q D11: 1N4007
q D12: 1N4007
q D13: 1N4007
q D14: 1N4007
q D15: 1N4007
q D16: 1N4007
q D17: 1N4007
q D18: 1N4007
q D19: 1N4007
q D20: 1N4007
q D21: 1N4007
q D22: 1N4007
q D23: 1N4007
q D24: 1N4148
q D25: 1N4148
q D26: 1N4148
q D27: 1N5408 not on tape !
q D28: 1N5408 not on tape !
q D29: 1N5408 not on tape !
q D30: 1N5408 not on tape !
