7

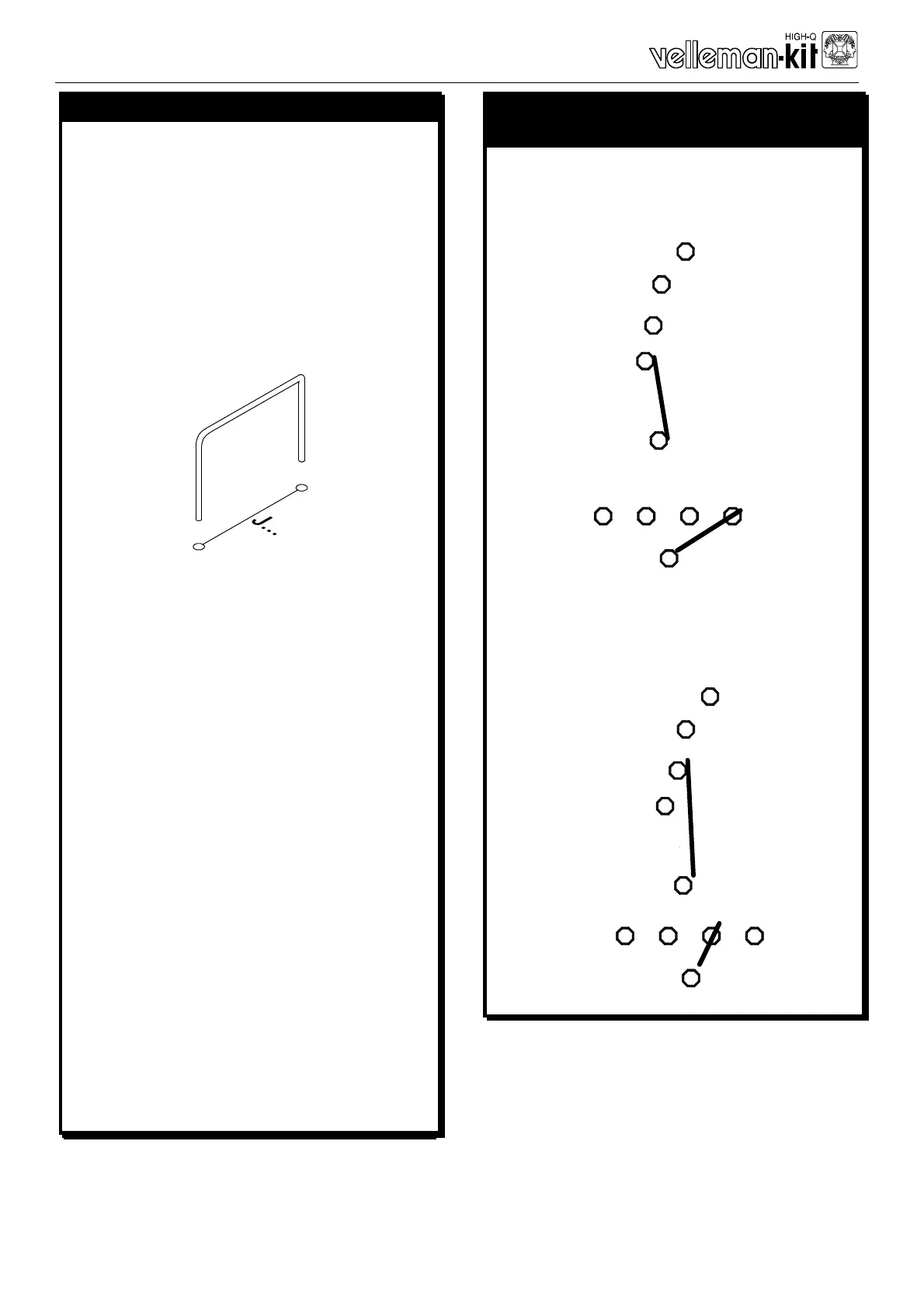

2. JUMPERS
q J1 (mount 2 wires in the same hole)
q J2 (mount 2 wires in the same hole)
q J3 (mount 2 wires in the same hole)
q J4 (mount 2 wires in the same hole)
q J5
q J6
q J7
q J8
q J9
q J10
q J11
q J12
q J13
q J14
q J15
q J16
q J17
q J18
q J19
q J20
q J21
q J22 indicated with ‘F1’
(mount 2 wires in the same hole)
3. JUMPERS FOR AC POWER SE-
LECTION
For 100V input (mains), mount:
q JA at the voltage selection 1
D
C
B
A
q JA at the voltage selection 2
D
C
B
A
For 115V - 120V input, mount:
q JB at the voltage selection 1
D
C
B
A
q JB at the voltage selection 2
D
C
B
A
Note that for J1 to J4, two jumper wires have
to be mounted in the same hole, for extra cur-
rent handling.
TIP
In order to get nice straight wiring, without too
much folding and measuring, follow these
hints:
• Put the jumper wire in place.
• Solder one end of the lead.
• Then carefully pull on the free end of the
lead until it is straight, and apply solder.
