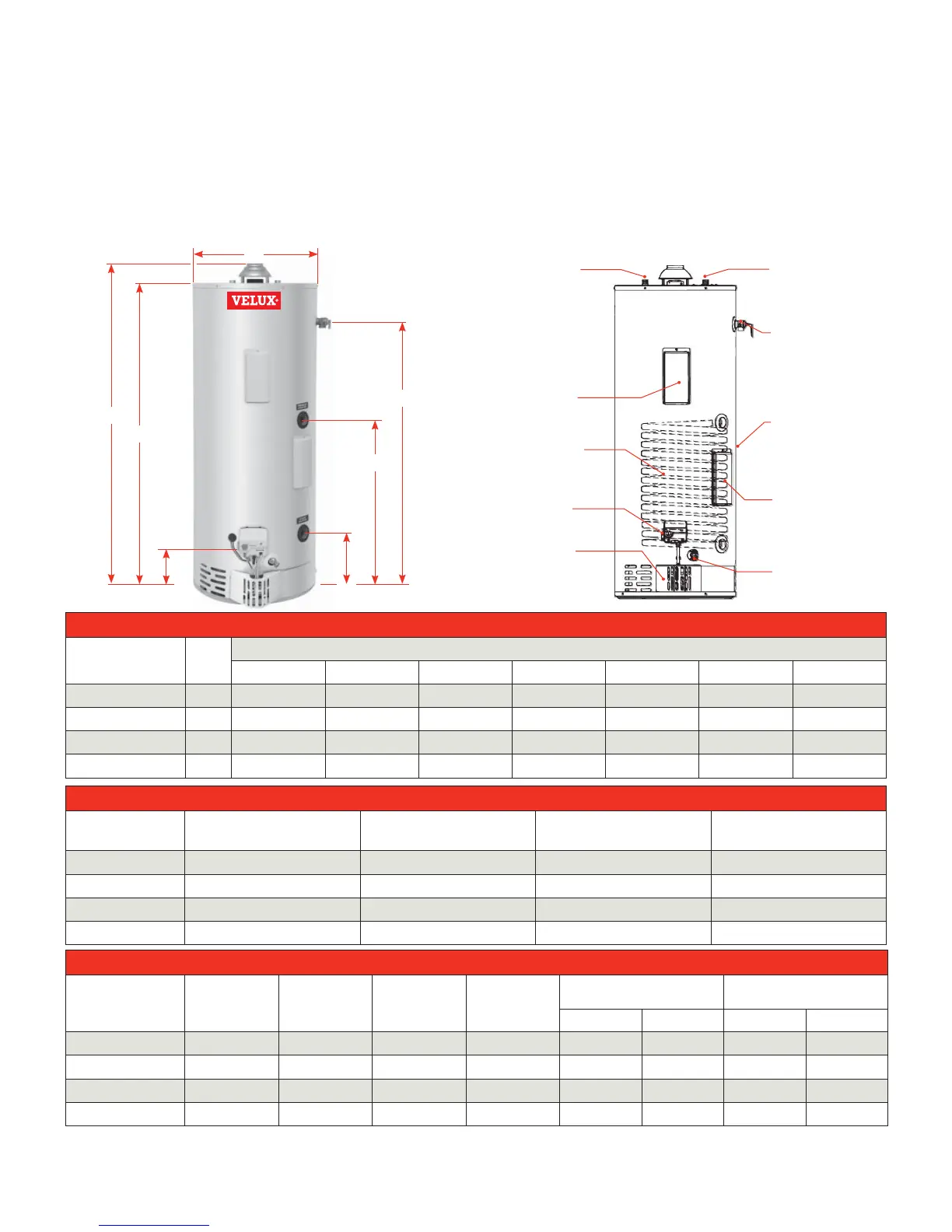

36 – Part 5: Specifi cations – VELUX glass lined solar storage tank (with gas backup)
VELUX glass lined solar storage tank (with gas backup)
• Glass Lined Steel Tank
• Two Protective Aluminum Anode Rods
• R-value of R-17
• Internal double wall glass coated steel solar heat exchanger
• Honeywell Self Diagnostic Gas Control
• Flammable Vapor Ignition Resistant technology (FVIR)
(TFF 060 2205 and TFF 060 3205)
• Backup Low NOx Burner (Ultra Low NOx Burner with
TFF 060 2205) – Comply with SCAQMD Rule 1121.
• T&P Relief Valve – Included
• Brass Drain Valve – Tamper proof
VELUX solar storage tank dimensions
MODEL # GAL
Dimensions
ABCDEFG
TFF 060 2205US 60 24” 63” 59
1
⁄2”11
5
⁄8”10
1/
8
”32
1
⁄4”53
1
⁄2”
TFF 080 2205US 70 26” 62
3
⁄8”59”14
3
⁄8”12
1
⁄2”34
5
⁄8”52”
TFF 060 3205US 60 24” 63” 59
1
⁄2”11
5
⁄8”10
1/
8
”32
1
⁄4”53
1
⁄2”
TFF 080 3205US 70 26” 62
3
⁄8”59”14
3
⁄8”12
1
⁄2”34
5
⁄8”52”
VELUX solar storage tank connections and weight
MODEL #
Solar heat exchanger
inlet/outlet connections
Hot/cold potable water
connections
Vent connection Shipping weight (lbs)
TFF 060 2205US 3/4” NPT 3/4” NPT 4” 272
TFF 080 2205US 3/4” NPT 3/4” NPT 4” 306
TFF 060 3205US 3/4” NPT 3/4” NPT 4” 264
TFF 080 3205US 3/4” NPT 3/4” NPT 4” 306
VELUX solar storage tank specs
MODEL #
Backup
fuel
Backup
input rate
(btu/h)
Solar HX
volume (gal)
Heated water
volume of
back up
Recovery (gph) First hour supply (gal)
77º rise 90º rise 77º rise 90º rise
TFF 060 2205US Natural gas
55,000 2.5 gal 60 gal 67 57 109 99
TFF 080 2205US Natural gas
76,000 2.5 gal 70 gal 92 79 141 128
TFF 060 3205US LP
63,000 2.5 gal 60 gal 77 66 119 108
TFF 080 3205US LP
76,000 2.5 gal 70 gal 92 79 141 128
Toxic chemicals, such as those used for boiler treatment, shall NEVER be introduced into the potable side of this system. The potable side may NEVER be
connected to any existing heating system or component(s) previously used with a non-potable water heating appliance.
C
G
F
D
A
Cold water inlet
Temperature and
pressure relief valve
Aluminum jacket
Drain valve
Hot water
outlet
Back-Up
burner
Solar heat exchanger
Surface mounted
solar sensor
Gas control
sensor
E
B
Gas control valve
Solar water heating
