VELUX solar pump station – Part 5: Specifi cations – 37

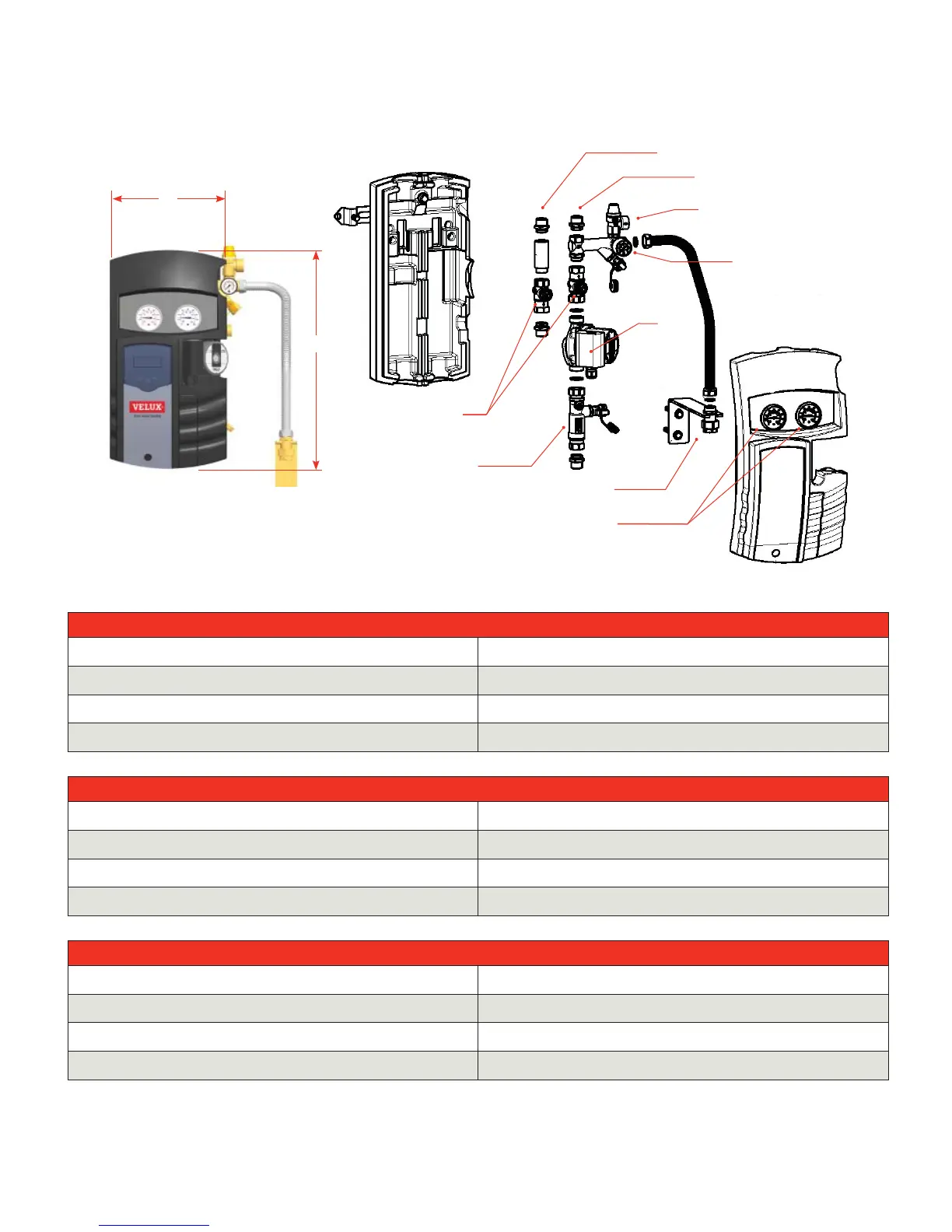

VELUX solar pump station dimensions
Height (A) 20
7
⁄8”
Width (B) 11
13
⁄16”
Center distance supply - return 3
17
⁄32”
Supply - return connections 3/4” NPT
VELUX solar pump station technical data
Power supply 120 Volt, 2 Amp
Maximum design pressure 145 psi
Maximum temperature (sustained) 250 °F
Maximum temperature (short-term) 320 °F
VELUX solar pump station component technical data
Pressure relief valve 87 psi
Pressure gauge 0 - 87 psi
Temperature gauges 250 °F
Flow meter 0.5 - 3.5 gpm
B
A
Collector supply
Pressure gauge
Expansion tank bracket
Collector return
Temperature gauges
Flow meter
Pressure relief valve
Pump
Supply and return
isolation valves
VELUX solar pump station
