Vendo SVE DM6 User Manual

Instructions for the installer, maintenance
technician and final user
22
© SandenVendo Europe SpA

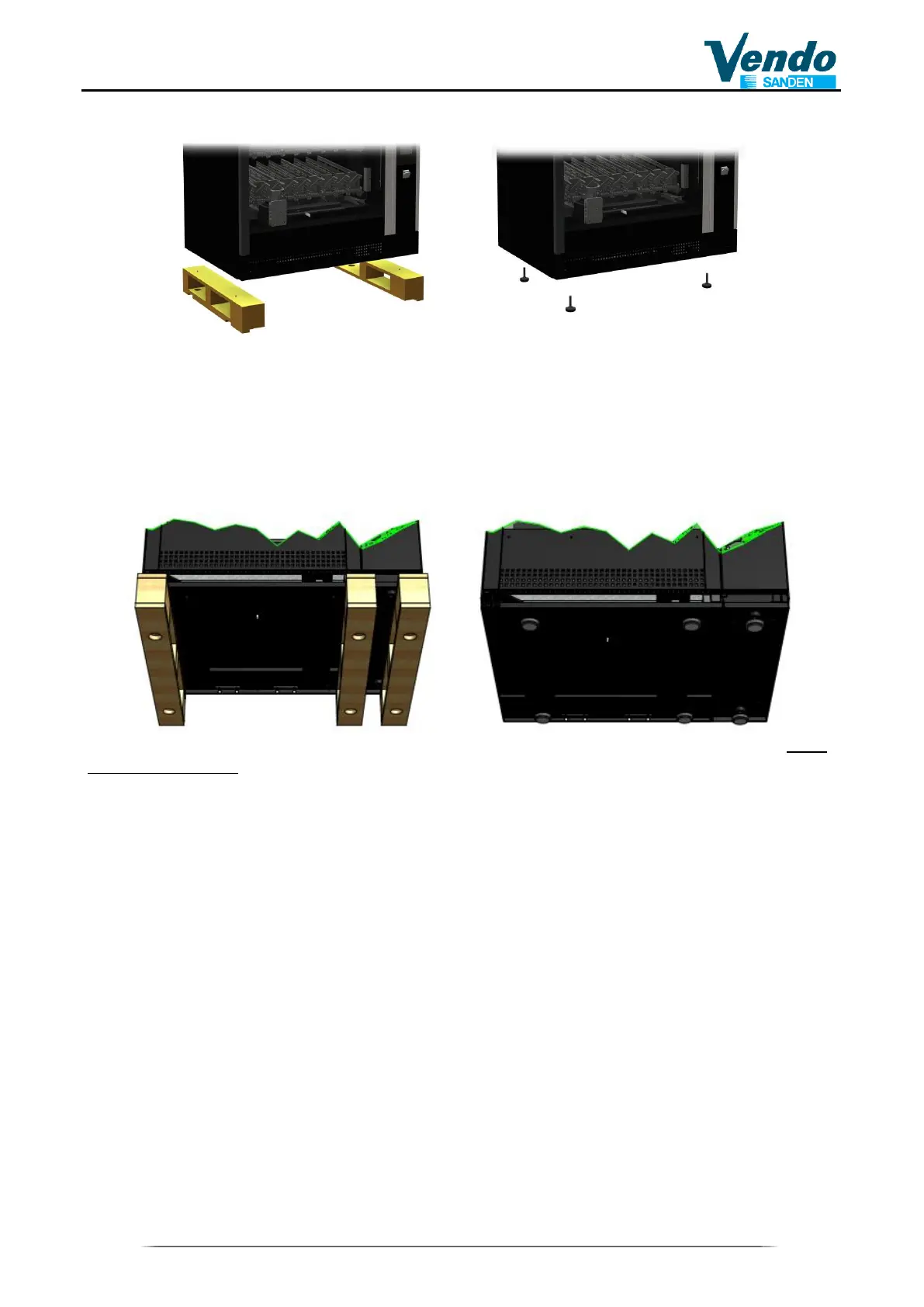

3.3 Removing of Wooden Bases
To remove wooden bases, work as follows:
 With a transpallet lift the machine from the floor (holding it from the Front)
 With an adjustable wrench unscrew the screws that fasten the wooden base to the
machine: 2 screws on the right hand side and 2 screws on the left hand side
 Assemble the 4 feet on the base of the machine
 Place the machine on the floor
3.3.1 Removing the wooden bases on models DC6-DM6
On models [DC6-DM6] with the divisible base, where there are three wooden bases, must
be mounted 6 feet as shown in the figure.
If don't installed 6 feet you cannot proceed to the division of the cabinet as described in
paragraph 3.8 on page 26.
To remove the wooden bases, work as follows:
 With a pallet truck, lift the machine from the floor (holding it from the front)
 Using a size 10 adjustable spanner (we recommend using a ratchet wrench) remove
the screws that fasten the wooden bases to the machine: 2 screws each base.
 Fit 4 feet on to the base of the machine and 2 feet on the base of the separated
drawer;
 Rest the machine on the floor.
 If necessary you can proceed to the division.
3.4 Levelling
In order to have the best working conditions place the vendor on a perfectly levelled
surface. Any irregularities on the floor can be compensate by adjusting the screw-on feet
on the vending machine to obtain a perfect levelling and guarantee stability.
i
THE BEST PERFORMANCE IS GUARANTEED IF THE VENDOR IS PLACED ON A
HORIZONTAL SURFACE
