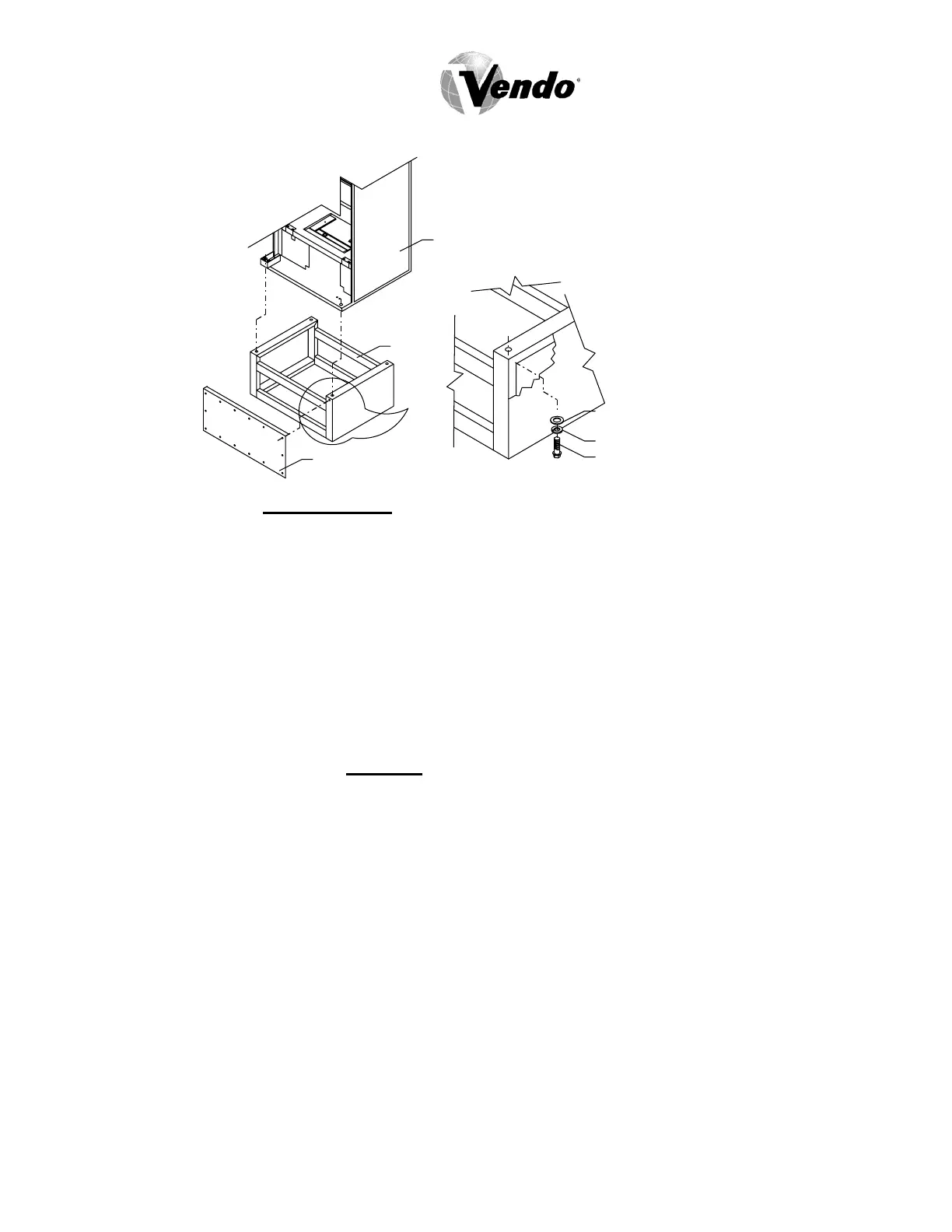

MOUNTING TO PEDESTAL
LOCK WASHER
HEX BOLT 1/2"-13x1 1/2"
FLAT WASHER
VENDOR
PEDESTAL
FRONT AND REAR COVER
IMPORTANT
- INSTALLATION REQUIREMENTS
Electrical equipment, such as vending machines, installed within a 20-ft. radius of a
gasoline dispensing unit must meet safety specifications of the National Electrical
Code, NFPA 70 - Article 514 - Gasoline Dispensing and Service Stations, NFPA 30A -
Automobile and Marine Service Station Code, and the Local Authority Having
Jurisdiction. Safety Specifications are:
• The vending machine must be UL Listed for installation near gasoline dispensing
equipment.
• The vending machine is UL Listed for use in an 18-inch high Class I, Group D,
Division 2 Hazardous Location.
• Installation requires ON-SITE approval of Local Fire Marshall, or Authority Having
Jurisdiction.
• The vending machine should be securely bolted in place using ½” nominal diameter
hardware as a minimum. Use template provided on pedestal carton for mounting
locations. If vendor requires leveling more than 1/8 inch, refer to Page S-14.
• The vending machine must be direct-wired to the voltage source utilizing proper
metal conduit and circuit protection.
Note: There are unique safety and approval considerations required for placement of a
vendor at the gasoline island which will require a non-standard vending machine. A
standard vending machine located at or near the gasoline dispensing area will create
unacceptable risks and will not meet safety agency requirements.
3/2002
S-15
