G-6

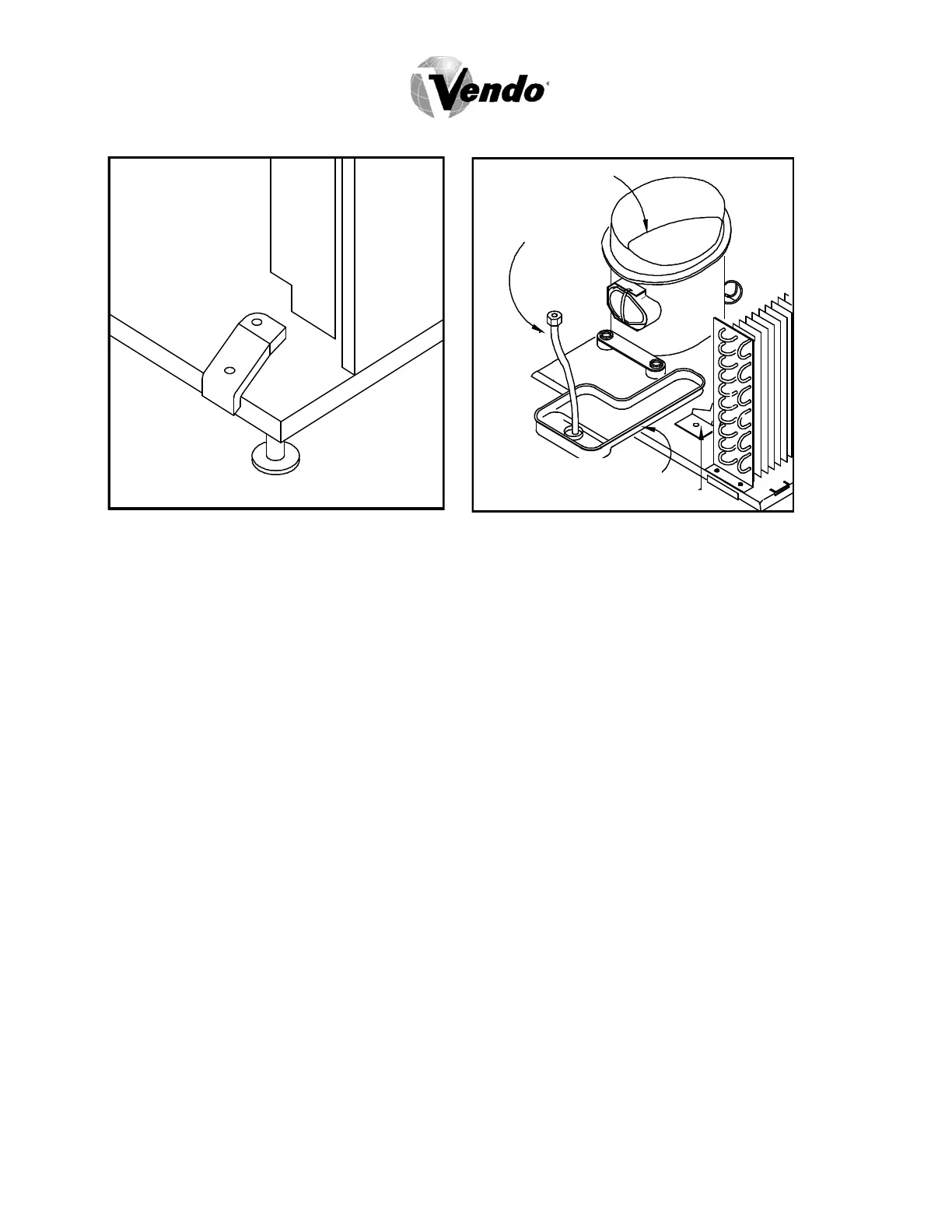

FIGURE 8
FIGURE 9
ALIGNMENT CHECKS
DOOR ROLLER CHECK:
The door support is to insure that the outer door closes squarely to the cabinet.
Raising the door can also insure proper alignment of the door latch (see Figure 8).
REFRIGERATION AREA CHECK:
Check the position of the condensation pan (see Figure 9). The correct position of
the pan is between the compressor and the condenser fan bracket. Be sure the
drain tube is clipped to the pan and is free of kinks. A water trap is installed into the
condensation pan and will prevent warm, moist air from reaching the evaporator
area.
DRAIN TUBE
COMPRESSOR
CONDENSER FAN BRACKET
CONDENSATION PAN
