3. INSTALL THE UNIT (CONT’D)
3.5 INSTALLING 6” DUCTS AND REGISTERS (CONT’D)
3.5.3 S
UGGESTED REGISTER LOCATIONS

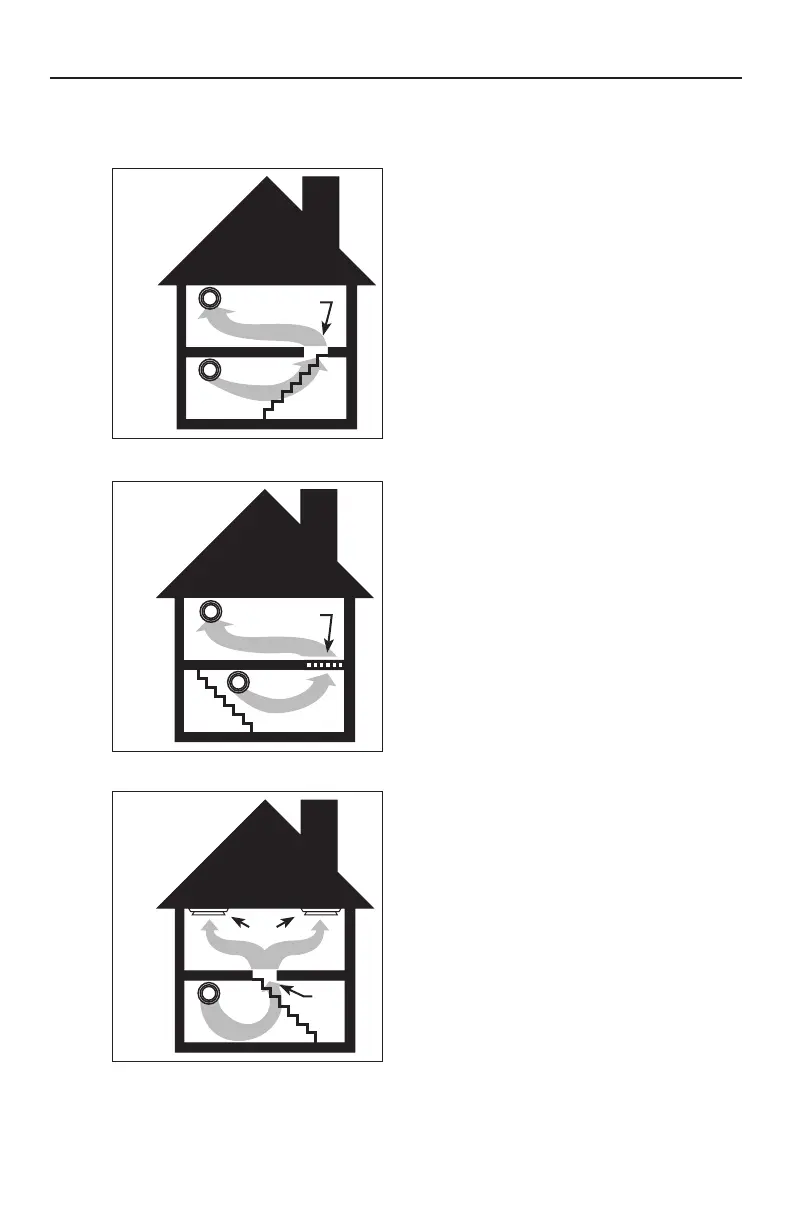

BUNGALOW
Basement stairwell (A): Open, lateral.
One stale air exhaust register (1) in the
highest lived-in level of the house and one
fresh air distribution register (2) in the lowest
lived-in level of the house.
VA0032
A
1
2
BUNGALOW
Basement stairwell (A): Closed.
One stale air exhaust register (1) in the
highest lived-in level of the house and one
fresh air distribution register (2) in the lowest
lived-in level of the house. For the closed
stairwell, use floor grilles (A).
VA0033
A
1
2
BUNGALOW
Basement stairwell (A): Open, central.
Two stale air exhaust registers (1) in the
highest lived-in level of the house and one
fresh air distribution register (2) in the lowest
lived-in level of the house.
VA0034
A
1
2
