21. SERVICE PARTS
REPLACEMENT PARTS AND REPAIRS
In order to ensure your unit remains in good working condition, you must use Venmar Ventilation ULC genuine replacement parts only.
Venmar Ventilation ULC genuine replacement parts are specially designed for each unit and are manufactured to comply with all the applicable
certification standards and maintain a high standard of safety. Any third party replacement part used may cause serious damage and drastically reduce
the performance level of your unit, which will result in premature failing. Venmar Ventilation ULC recommends to contact a certified service depot for all
replacement parts and repairs.

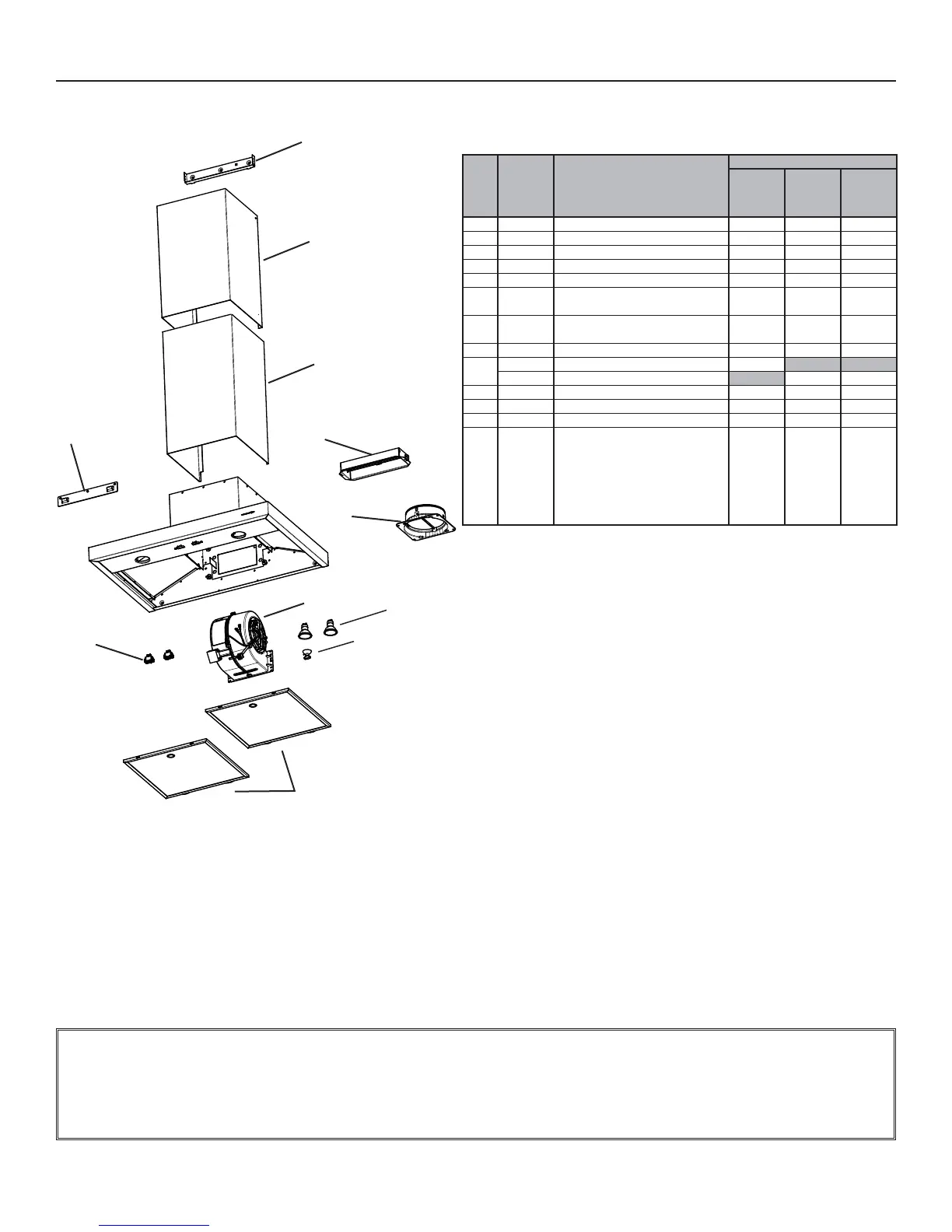

VCS500
* NOT SHOWN
ITEM
NO.
PART NO.DESCRIPTION
QTY. (HOOD WIDTH)
24”
S
TAINLESS
30”
STAINLESS
36”
STAINLESS
1 63673 UPPER FLUE MOUNTING BRACKET 111
2 SV63663 UPPER DECORATIVE FLUE, STAINLESS 111
3 SV63662 LOWER DECORATIVE FLUE, STAINLESS 111
4 13296 3¼” X 10” ADAPTER/DAMPER 111
5 SV08487 6” ROUND ADAPTER/DAMPER 111
6 SV08582
INTERNAL BLOWER
(INCLUDING CAPACITOR)
111
7 SV05921
SHIELDED HALOGEN BULBS
120 V, 50 W, GU10 TYPE
222
8 09983 SUCTION CUP 111
9
63677 MICROMESH FILTERS (THE PAIR)1
14131 M
ICROMESH FILTERS (THE PAIR)11
10 63678 ROCKER SWITCH (2) 1 1 1
11 09014 HOOD MOUNTING BRACKET 111
* 22745 INSTALLATION GUIDE 111
* 09027
P
ARTS BAG :
5 NO. 8 X 1½” COUNTERSUNK SCREWS,
8 NO. 8 X 3/4” SCREWS
6 NO. 8 X 3/8” SCREWS
6 DRYWALL ANCHORS, 3 WASHERS,
2 NO. 8 X 1/2” SCREWS
2 NEOPRENE PIECES
111
HL0307
B
C
D
H
L
I
F
E
K
J
G
