Venstar T1050 - Quick Start Guide; Setting Clock and Day

C
G
R
Y
1
W2
W
1
O
B
Y2

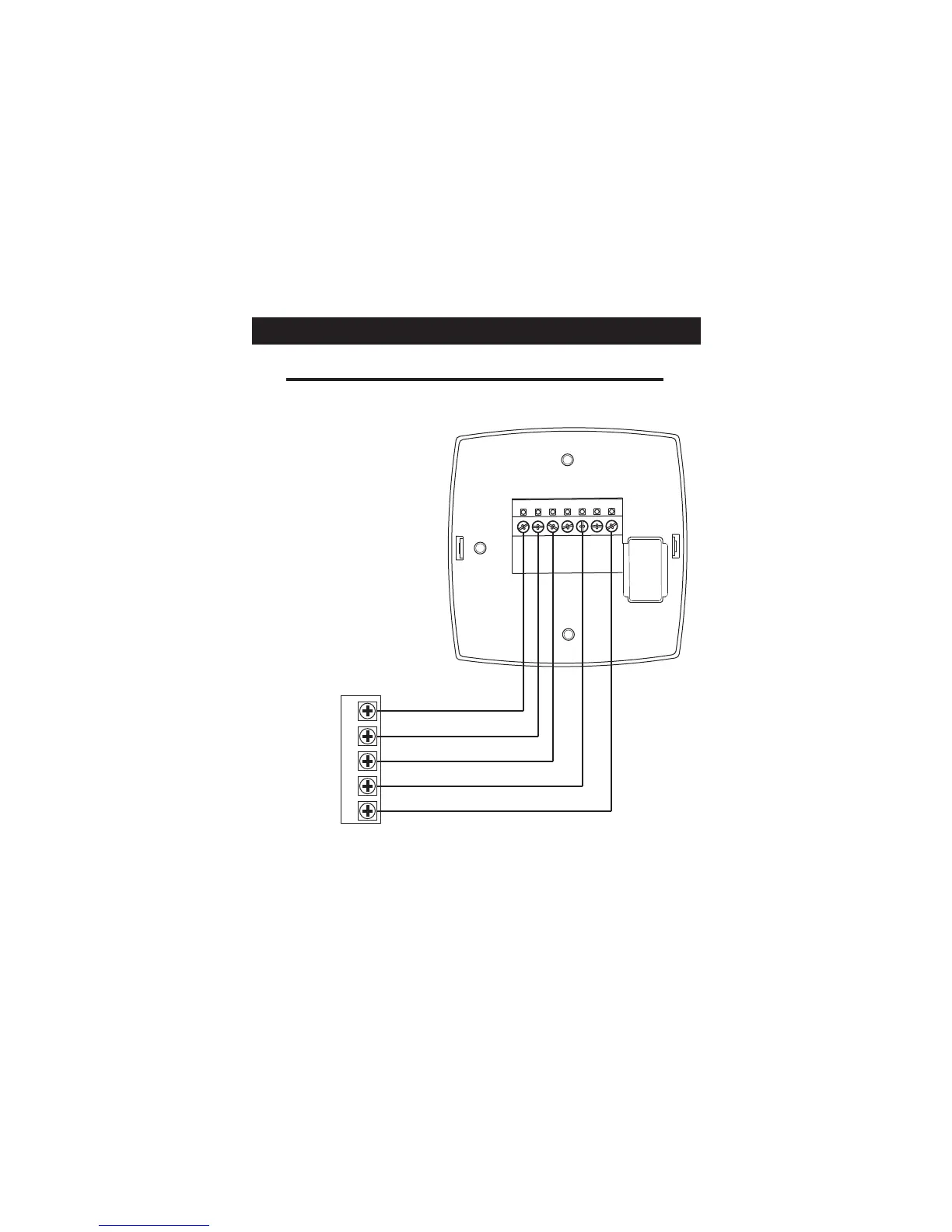

Sample Wiring DiagramsSample Wiring Diagrams
* If using first stage electric heat, this option must be
selected ON (see page 12, step 5 of Owner’s Manual).
Gas or Electric Heat
5 Wire, 1 Stage Cooling, 1 Stage Gas Heat
Residential Gas or Electric Heat*,
Electric Cool, split systems & package
units
POWER
R
COMPRESSOR
Y
W
GAS VALVE
or
STRIP HEAT
COMMON
C
FAN
G
Page 5
