Vent-Axia Multihome Basic NL - Connection Diagrams; Main Power Connections

9

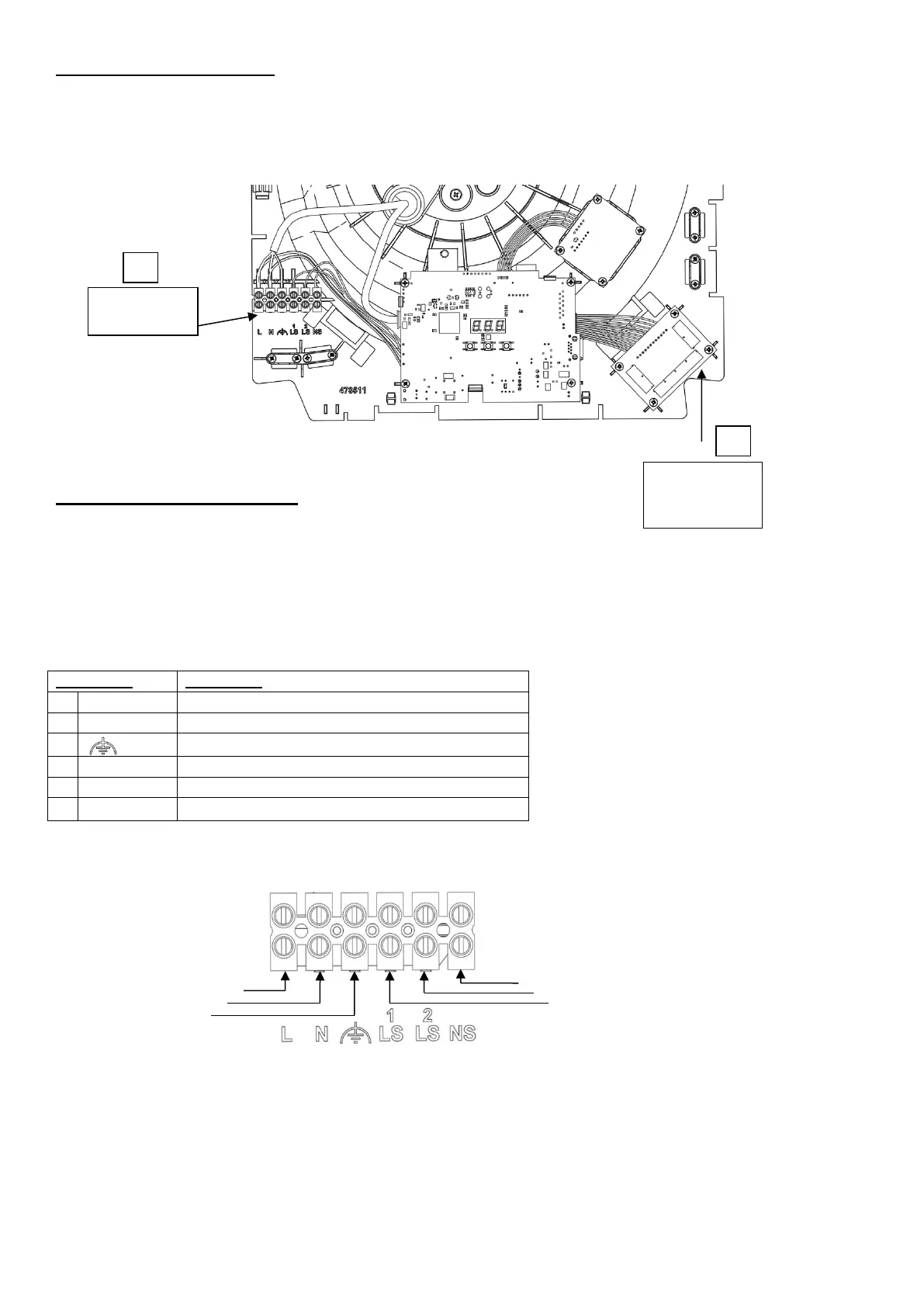

CONNECTION DIAGRAM
A: Main power connections
The LS1, LS2 and NS terminals are electrically isolated.
If the LS connections are used, a connection must be made with the NS terminal.
This can be via a jumper or dedicated neutral connection.
This appliance incorporates an earth connection for functional purposes only.
Connection
Description
1
L
Live (220-240Vac)
2
N
Neutral
3
Functional Earth
4
LS1
Live Switched 1, (220-240Vac), isolated
5
LS2
Live Switched 2 (220-240Vac), isolated
6
NS
Neutral Switched, isolated
1
2
3
5
4
6
A
Main power
connections
B
Low voltage
connections,
if fitted
Figure 10
Figure 11
