• A clearance of 2" (50 mm) between the chimney and any combustible material is required.
This space must remain free, without insulation or other combustible material.The parts of the
chimney that pass into inhabited spaces must be enclosed in an enclosure.

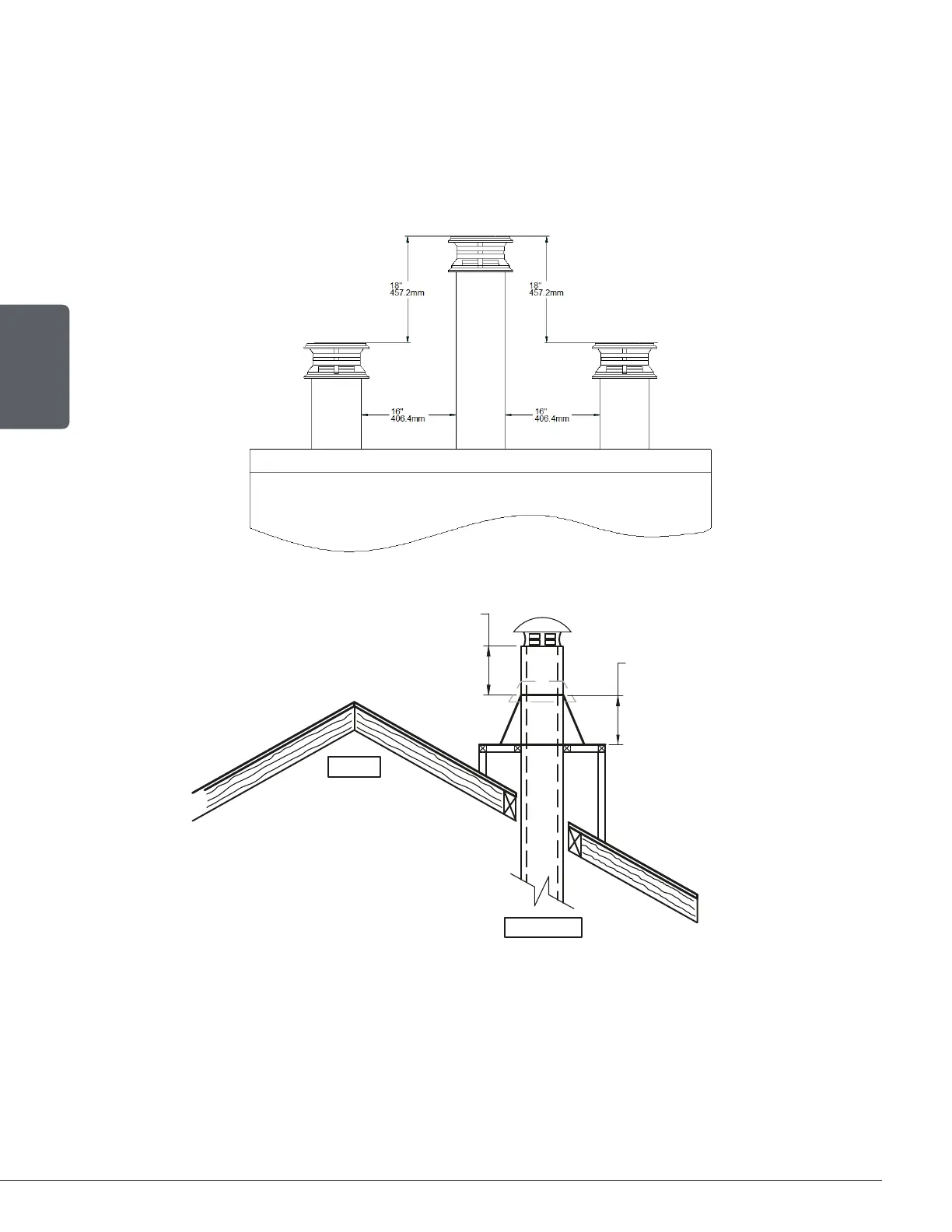

• For installations where more than one chimney is located in the same non-chase or within the
same area, their terminations must be separated by at least 16" (410 mm) horizontally, and
18" (460 mm) vertically. This separation is to prevent smoke migrating from one chimney to
another.
Note: The chimney chase on the roof must be the same size as the flashing.
WARNING: IF THE CHIMNEY IS INSTALLED IN AN ENCLOSURE ABOVE THE ROOF, IT
MUST EXCEED THE TOP OF THE FLASHING CONE BY AT LEAST 12 INCHES (30 CM). THE
FLASHING MUST HAVE A MINIMUM HEIGHT OF 6 INCHES (15.25CM). THE TOP OF THE
ENCLOSURE MUST BE MADE OF NON-COMBUSTIBLE MATERIALS.
CHIMNEY: 12" (305mm) MIN.
ABOVE FLASHING
CHEMINÉE: 12" (305mm) MIN.
AU-DESSUS DU SOLIN
FLASHING:
6" (152mm) MIN.
SOLIN:
6" (152mm) MIN.
CRÊTE
CHEMINÉE
RIDGE
CHIMNEY
