3. Reinstall the split pin with a small hammer.

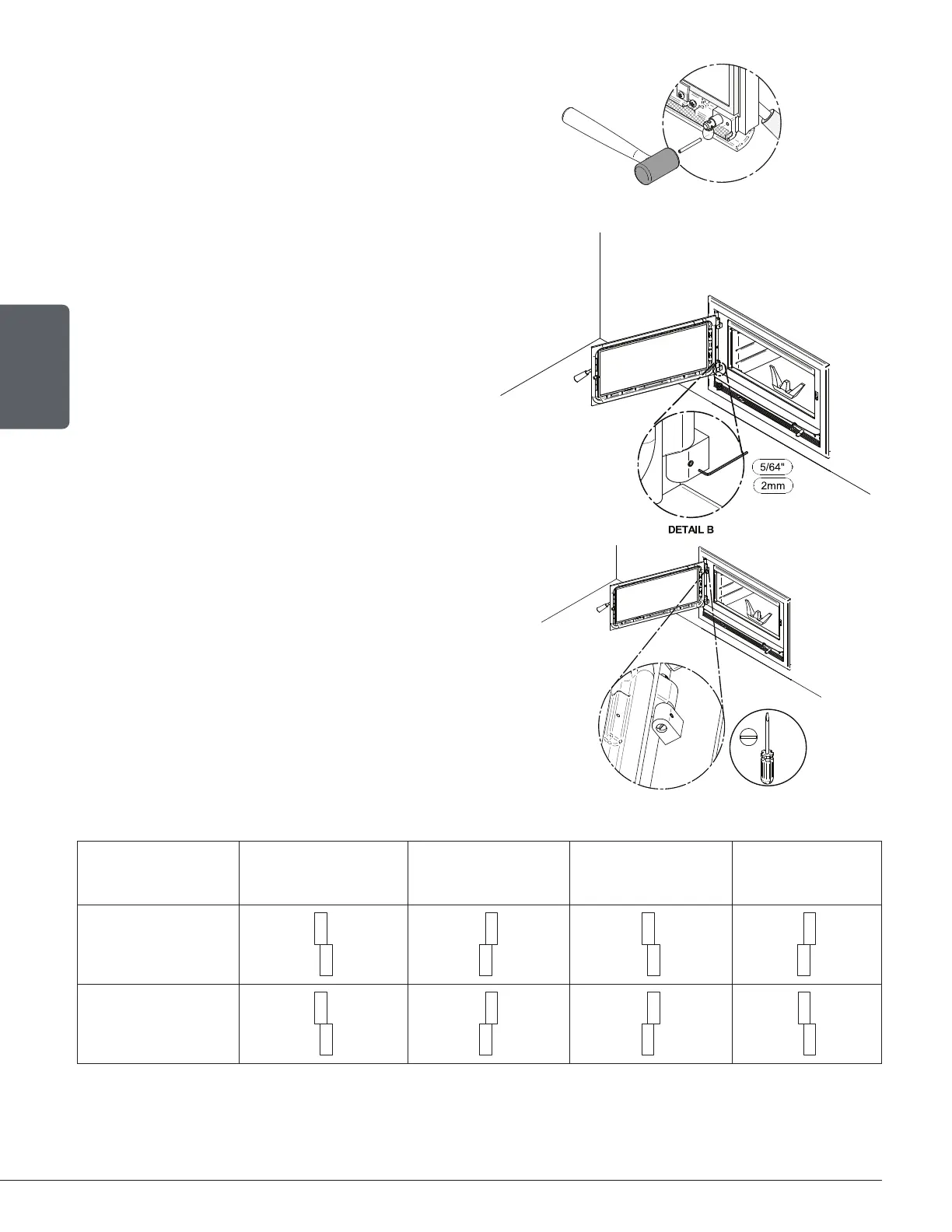

Alignment
To align the doors, open the doors and slightly
unscrew the set screws on the lower and upper
door hinges with a 3/32» Allen key to release the
adjustable hinge rods.
Using a flat screwdriver, turn the adjustable
hinge rods in the directions shown to adjust
the doors. Tighten the set screws on the door
hinges when they are in the desired positions.
Doors position
with more space
Doors position
with less space
Doors tilt up Doors tilt down
Top pintle
Bottom pintle
