Installation and Operation Manual - HE275CF
ENGLISH

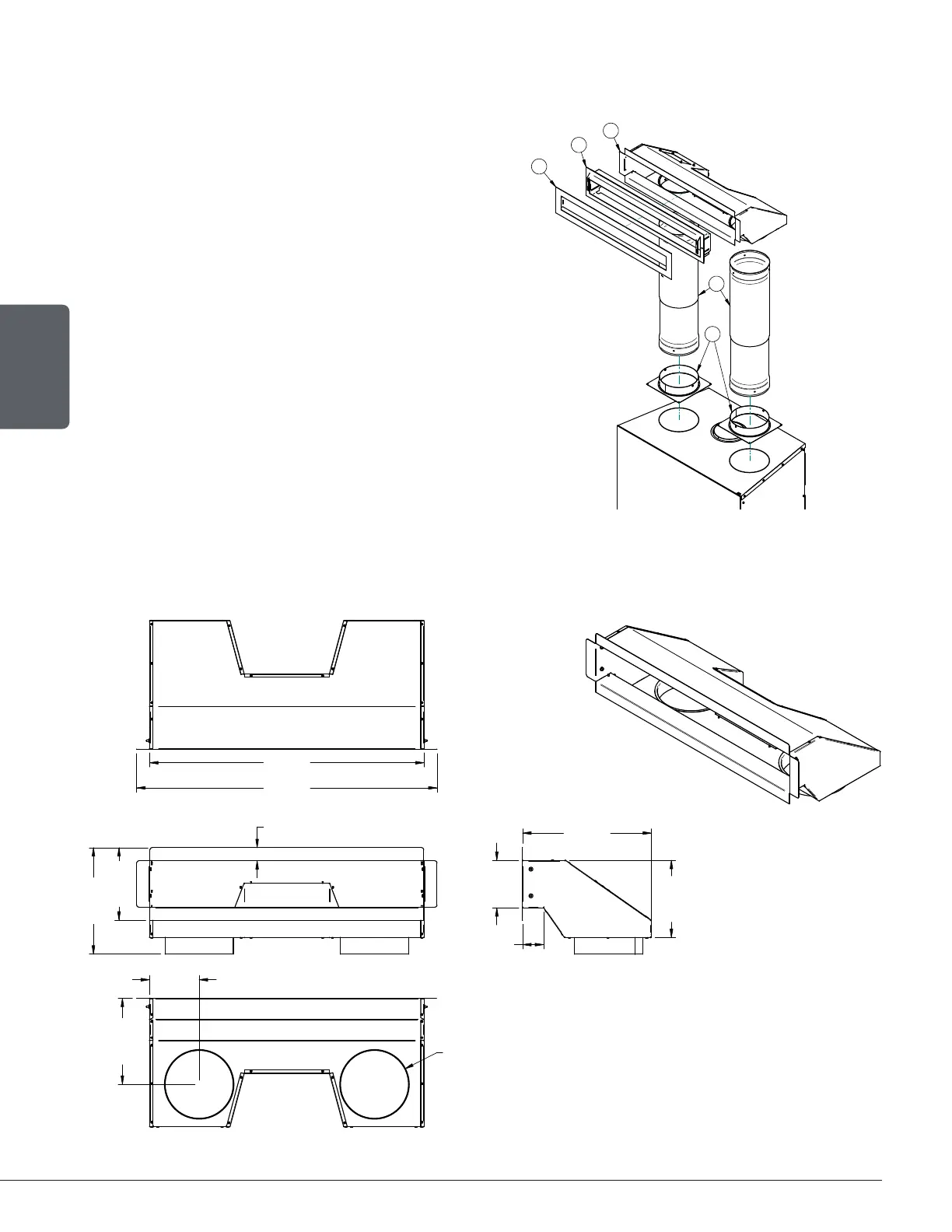

APPENDIX 3: OPTIONAL MODERN GRAVITY HOT AIR DISTRIBUTION KIT
INSTALLATION
The kit includes :
− Decorative plate (A);
− Adjustable frame (B);
− Heat distribution box (C);
− Telescoping section (D);
− Anchor plates (E);
− All screws are included.
Not included in the kit:
− 8" rigid ducting, 26 ga, galvanized steel.
(if necessary according to the desired height).
Dimensions of heat distribution box
B
D
E
A
C
5 1/2"
141mm
2 1/2"
62mm
15 1/8"
383mm
8 1/2"
215mm
1 1/2"
39mm
TYP.
32 1/8"
816mm
O
8"
203mm
(2)
10 1/8"
256mm
5 3/4"
147mm
12 1/2"
316mm
35 1/8"
892mm
9"
230mm
